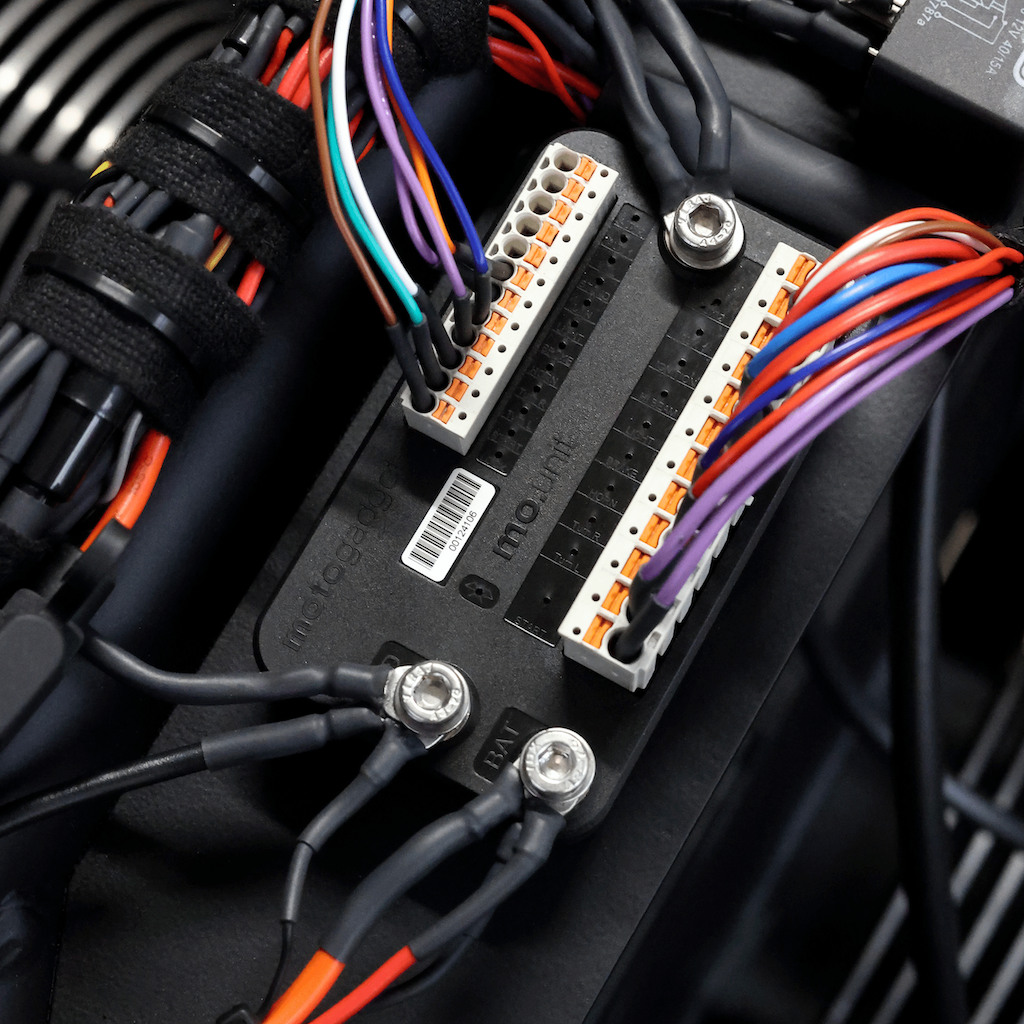

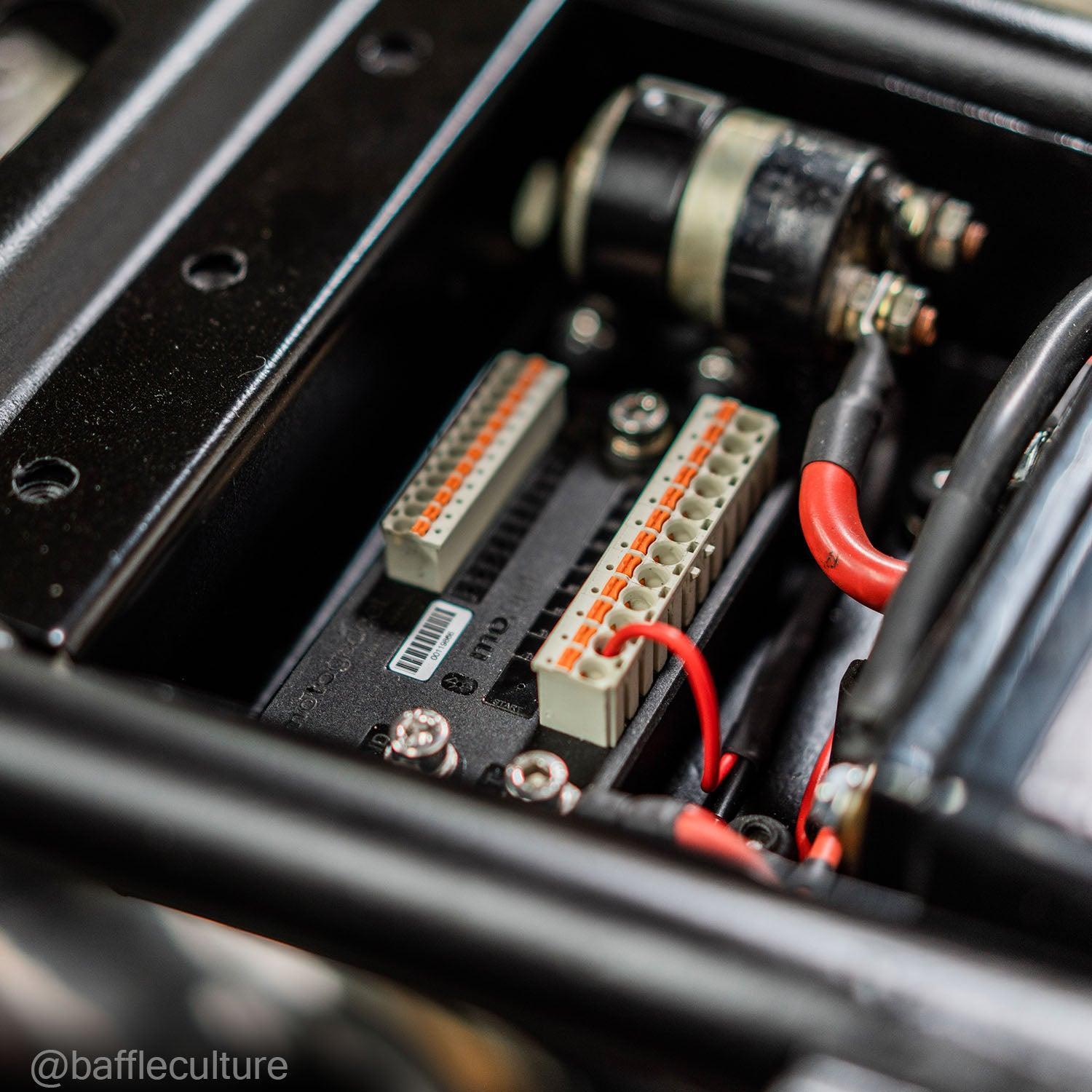

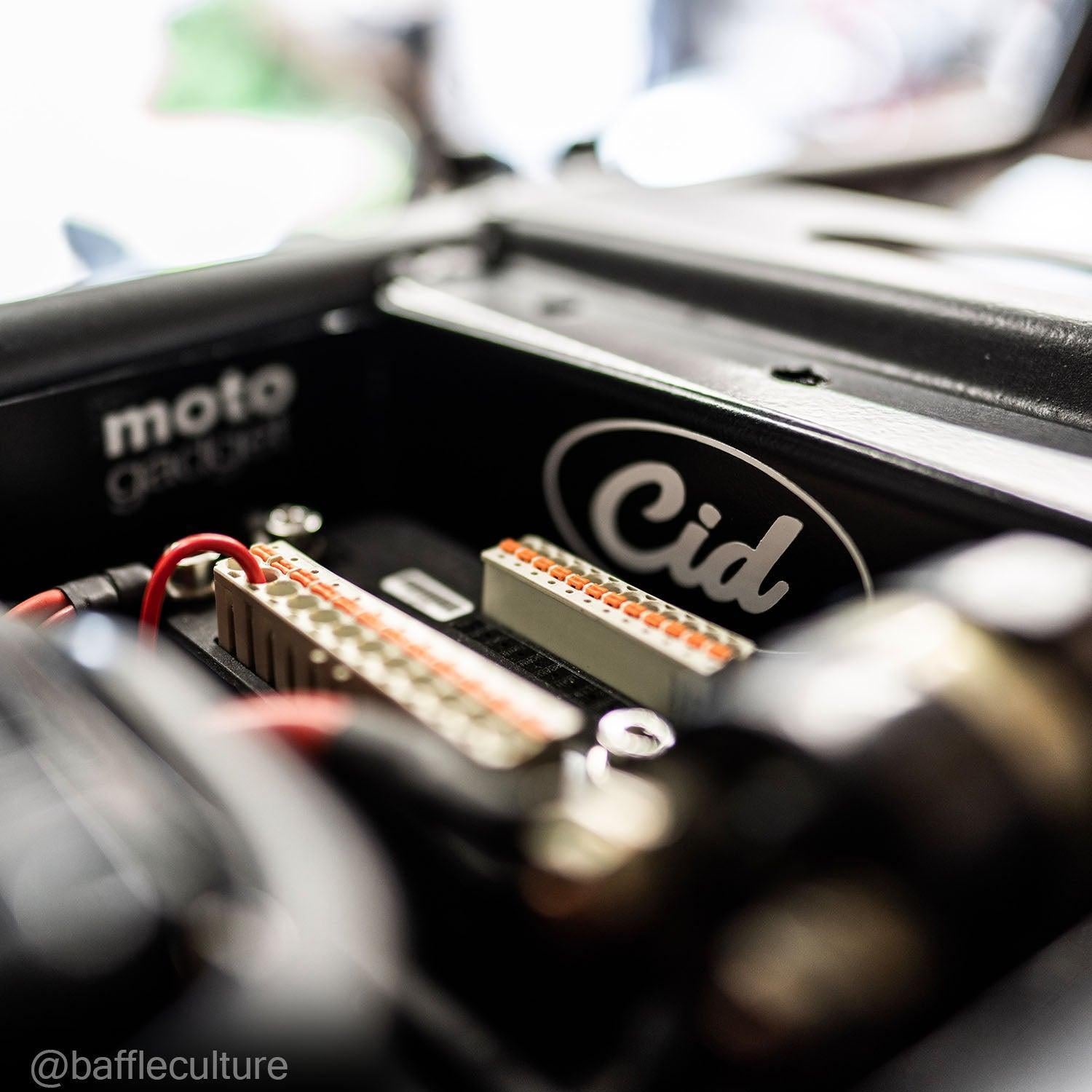

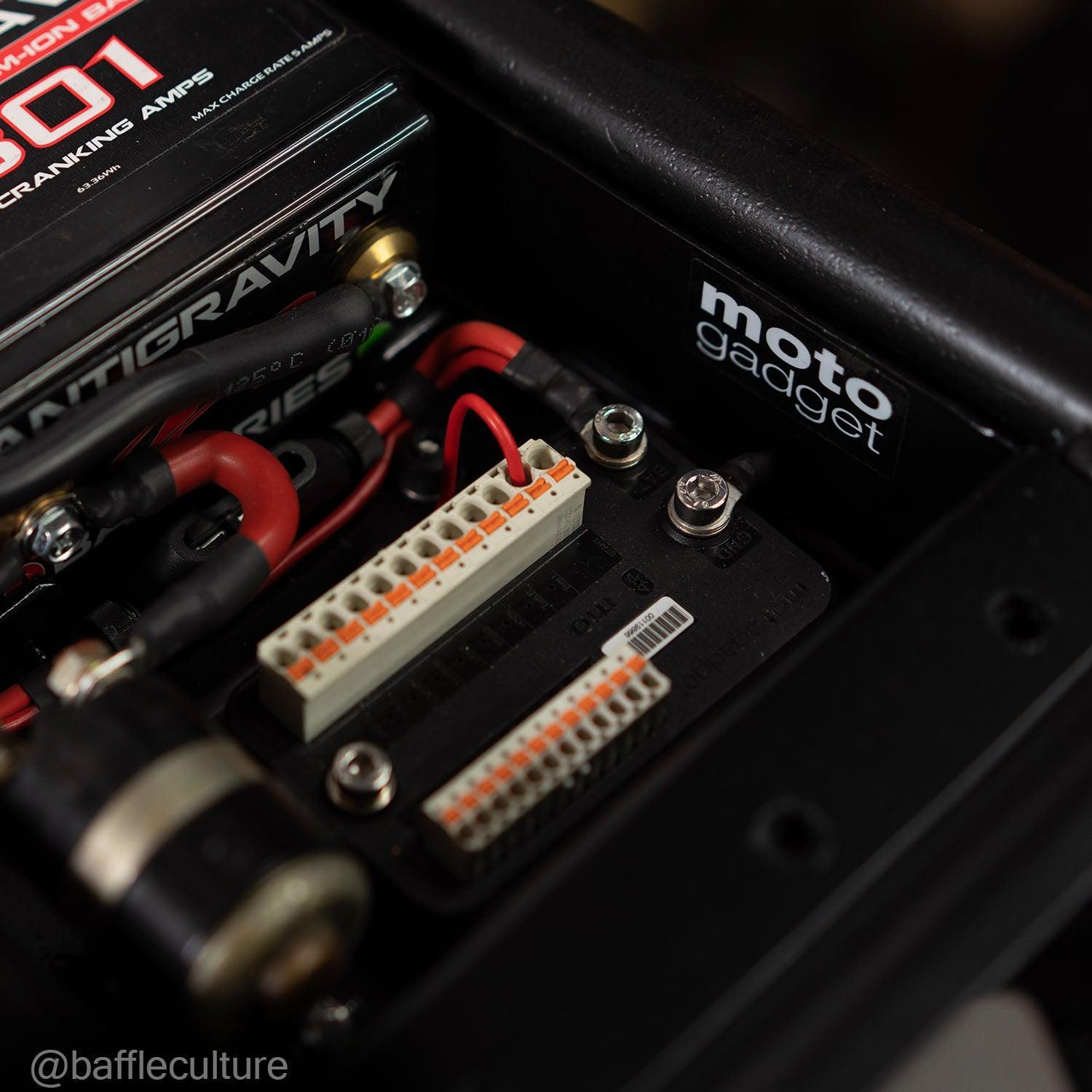

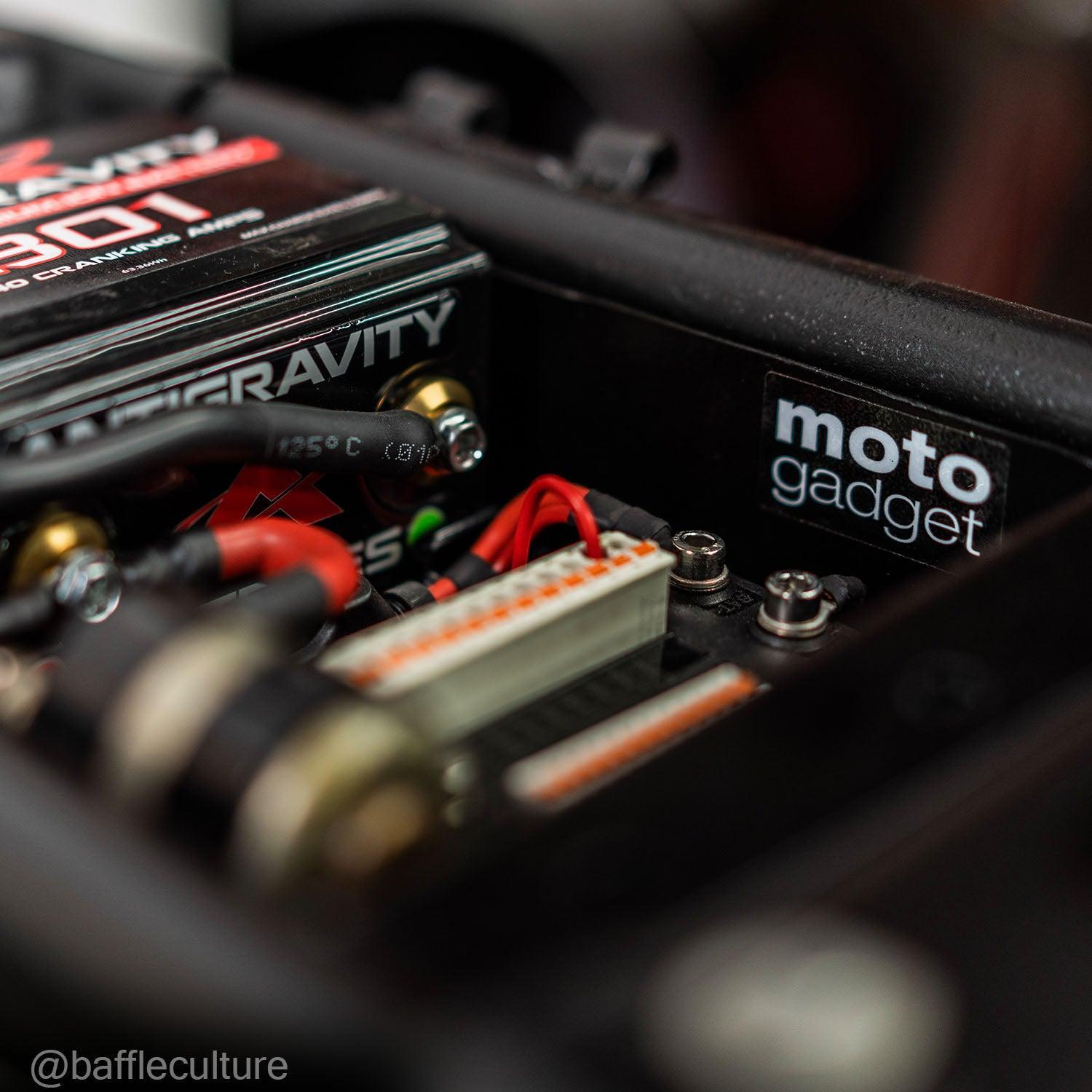

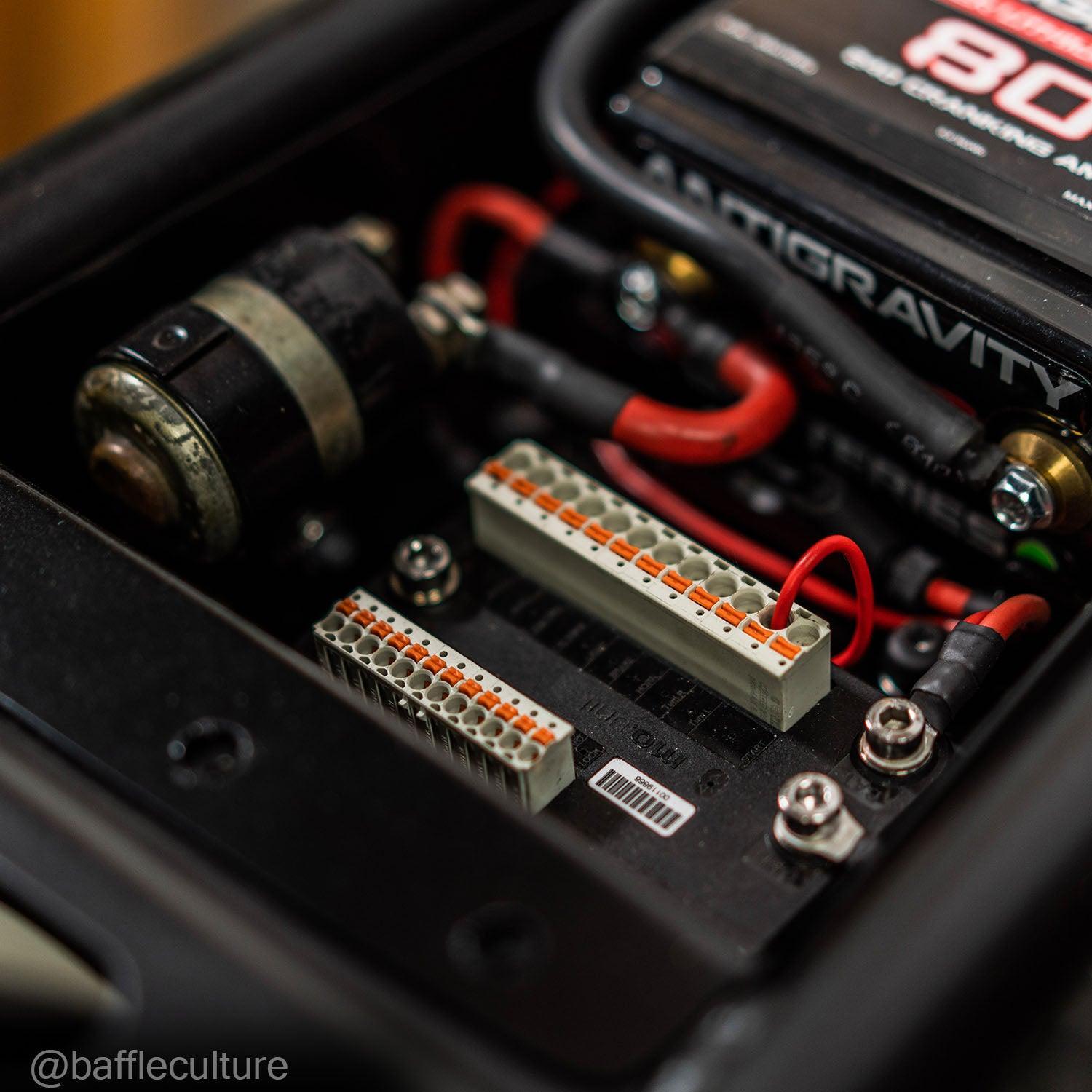

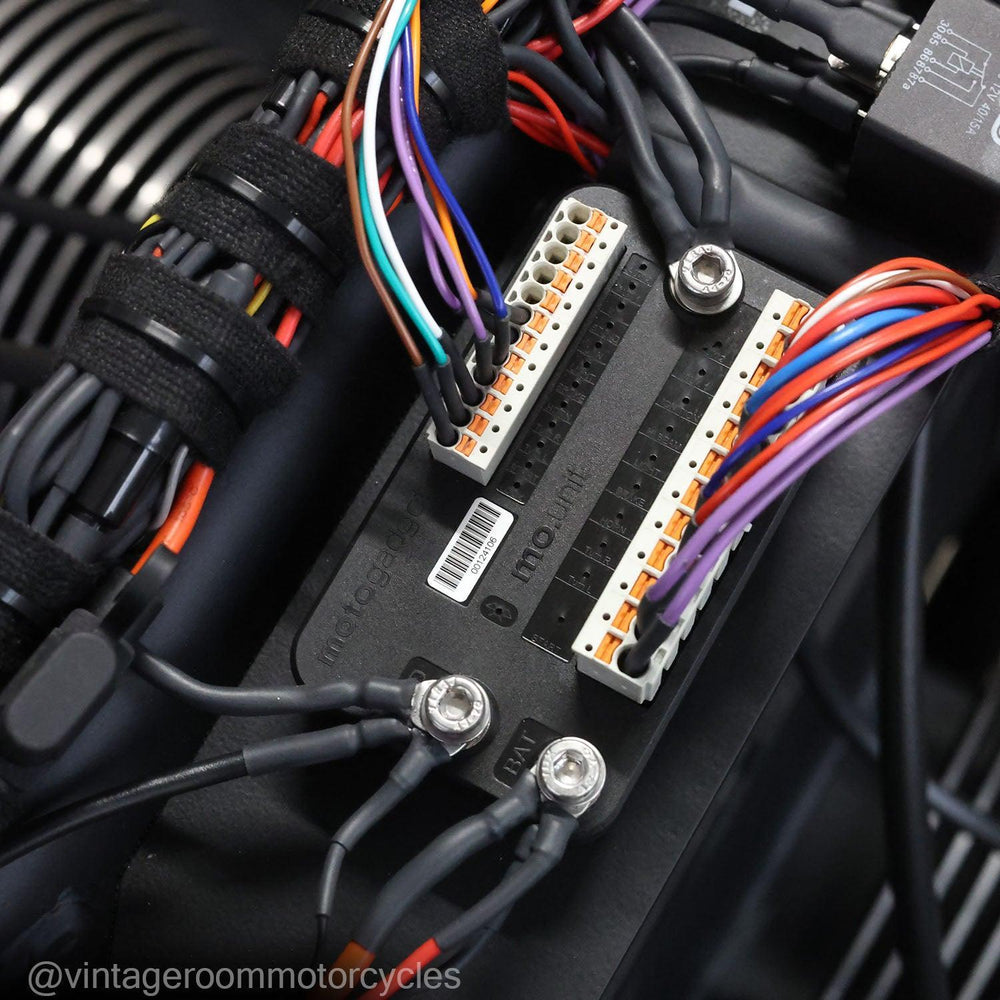

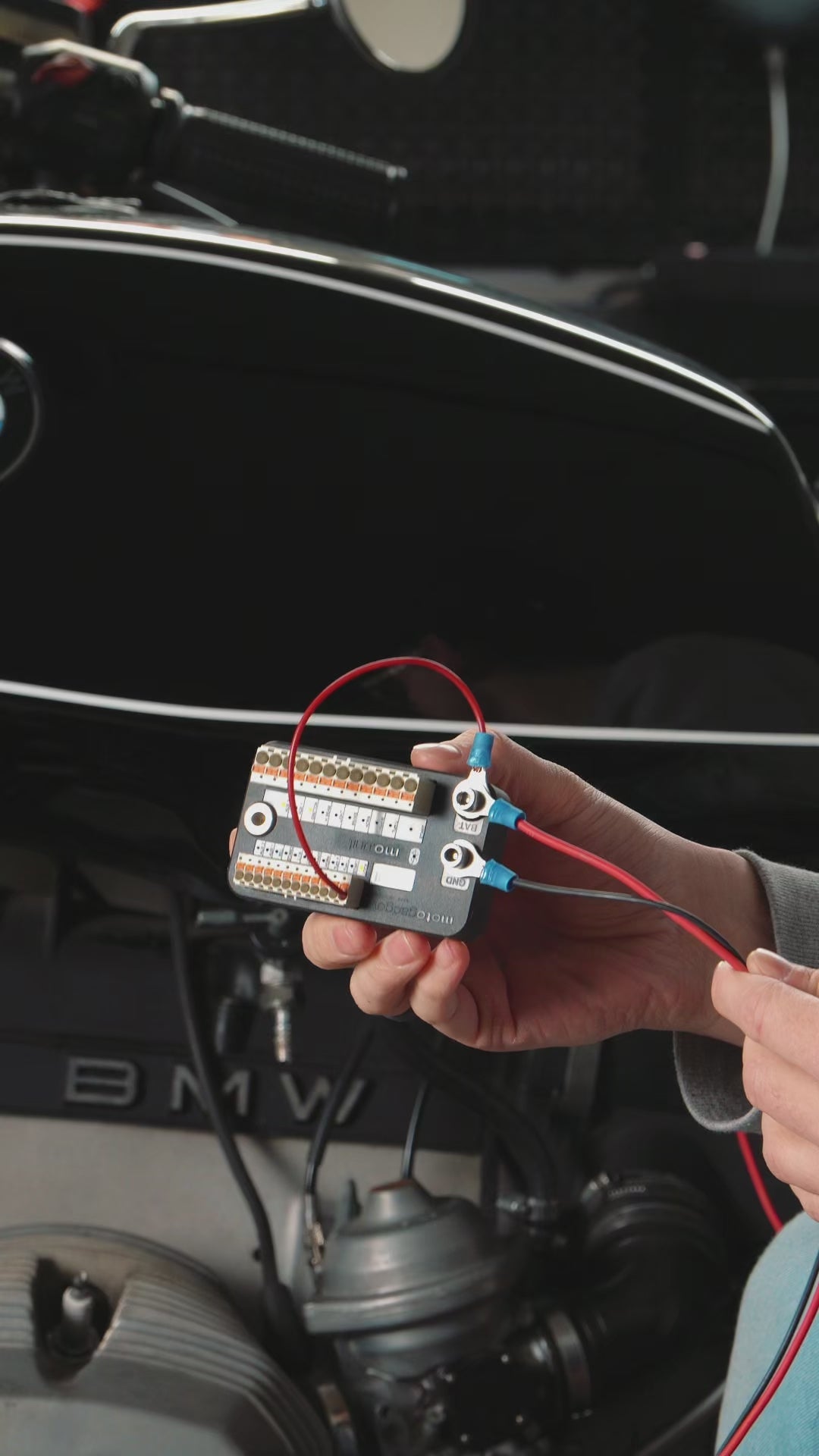

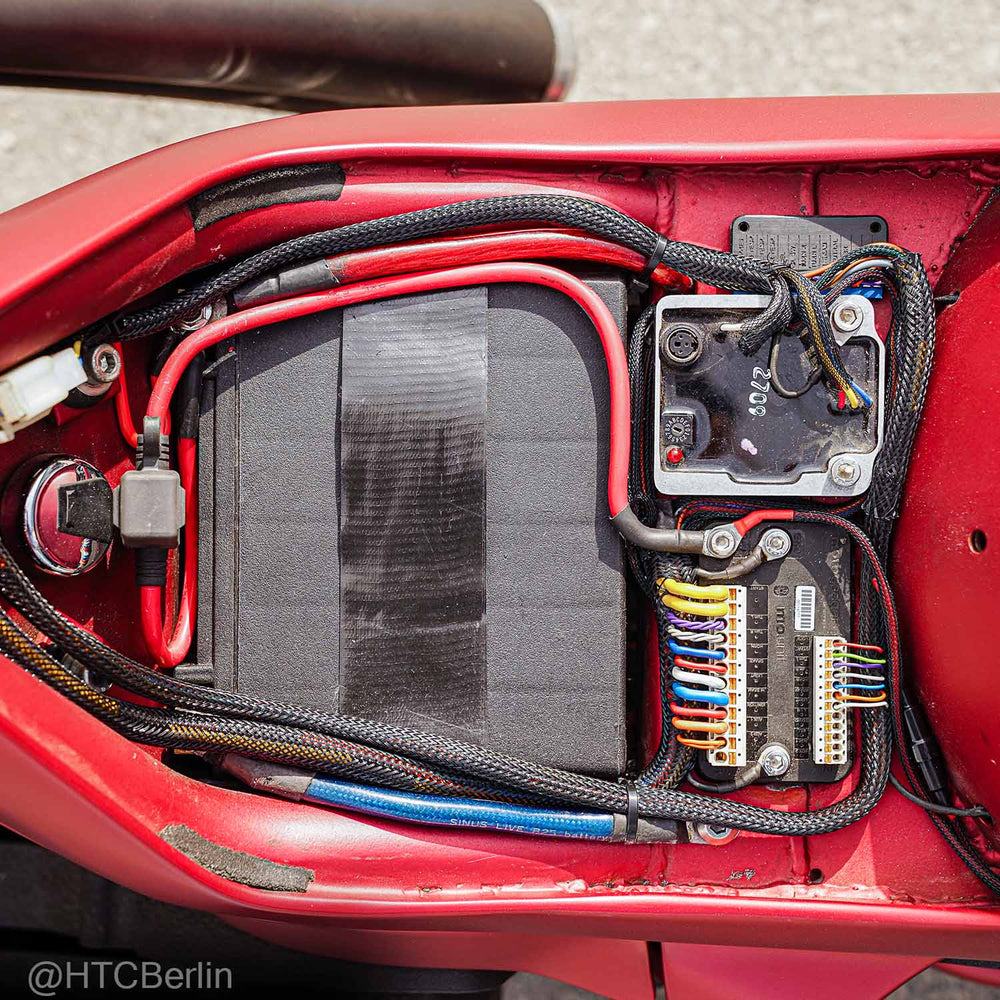

motogadget mo.unit blue

The mo.unit blue is a digital control center, the heart of the entire vehicle electrical system. It can be operated both with push-button fittings and with conventional, switching handlebar fittings. The mo.unit switches all components in the vehicle via wear-free, high-performance semiconductor switches and takes over the tasks of the electrical fuses. Various relays, connectors and individual components in the wiring harness can be dispensed with, allowing a new, minimized vehicle wiring system to be set up quickly and easily.

The mo.unit blue has 12 inputs, 10 outputs and interchangeable quality cable clamps. Coupling via Bluetooth to the mo.ride smartphone app is unique in the motorcycle accessories sector.

The mo. ride app is a complete vehicle management system that is used to configure the mo.unit and the alarm system. Fast fault diagnosis during operation, tour logging with statistics, maintenance planning, encrypted keyless go and Rideassist via helmet headset are all possible.

Functions

• Push-button control for 4 or 5-button operation
• Replacement of the vehicle fuses
• Alarm system
• Load-independent flasher relay
• Hazard warning lights
• Blinker as position light (adjustable)
• Time-controlled blinker switch-off
• Path-controlled turn signal deactivation (speedometer sensor required)
• Integrated parking light and headlight flasher
• Control of low beam and high beam with one button
• Stop light modulator (8 adjustable modes)
• Emergency stop light
• Garage light
• Fan run-on
• Hyperbeam (200W high beam + low beam)
• Starter relay for starter with magnetic switch (max. 30 A)
• Intelligent switch-off of consumers at startup
• Integrated, digital horn relay
• Two configurable additional outputs AUX1 and AUX2
• Complete wiring system diagnostic function
• Defect detection of all light sources

Functions with the mo.ride app

• Keyless-Go (ready to start when approached with a smartphone)
• Tour log in mo.ride with fun factor, number of bends, top speed, etc.
• Alarm events with date, time, vehicle on the ground, etc.
• Setting the mode and sensitivity of the alarm system
• Monitoring the battery voltage
• Diagnosis of all inputs and outputs with currents and voltage
• Defect detection of light sources
• Rideassist: turn signal sound and errors as audio via helmet headset
• Manual switching of the outputs via smartphone (except starter)
• Firmware updates at any location
• Configuration of the setup menu
• Vehicle management with information on maintenance tasks
• All trips and messages in chronological order in the logbook
• Display of parking position and Ping! to help with vehicle search
• Secure, encrypted connection via Bluetooth® LE
• ultra-low-power standby: low power consumption when stationary

Compatibility
iPhone from iOS 15 / Android from 11 (availability may be limited)
Further information at mo.ride.de

• Dimensions 90 x 53 x 30mm (L/W/H)
• Waterproof, vibration-resistant - IP69
• Weight approx. 180 g
• Fastening 2 x M5 screw, distance 74mm
• Operating voltage 9V - 15V
• Operating temperature -20° to +80°C

Inputs

• Ignition lock +12V or mo.lock
• Turn signal left
• Blinker right
• Light
• Starter
• Horn
• Brake light
• Kill
• Side stand
• LIN bus
• AUX1
• AUX2

Outputs

• Turn signal left
• Blinker right
• Low beam
• High beam
• Starter
• Horn
• Brake light
• Ignition
• AUX1 (Universal)
• AUX2 (Universal)

• mo.unit blue
• Positive pole screw M5
• 2 M5 fastening screws with nuts and washers

can be ordered separately in the accessories category:

• Battery connection cable

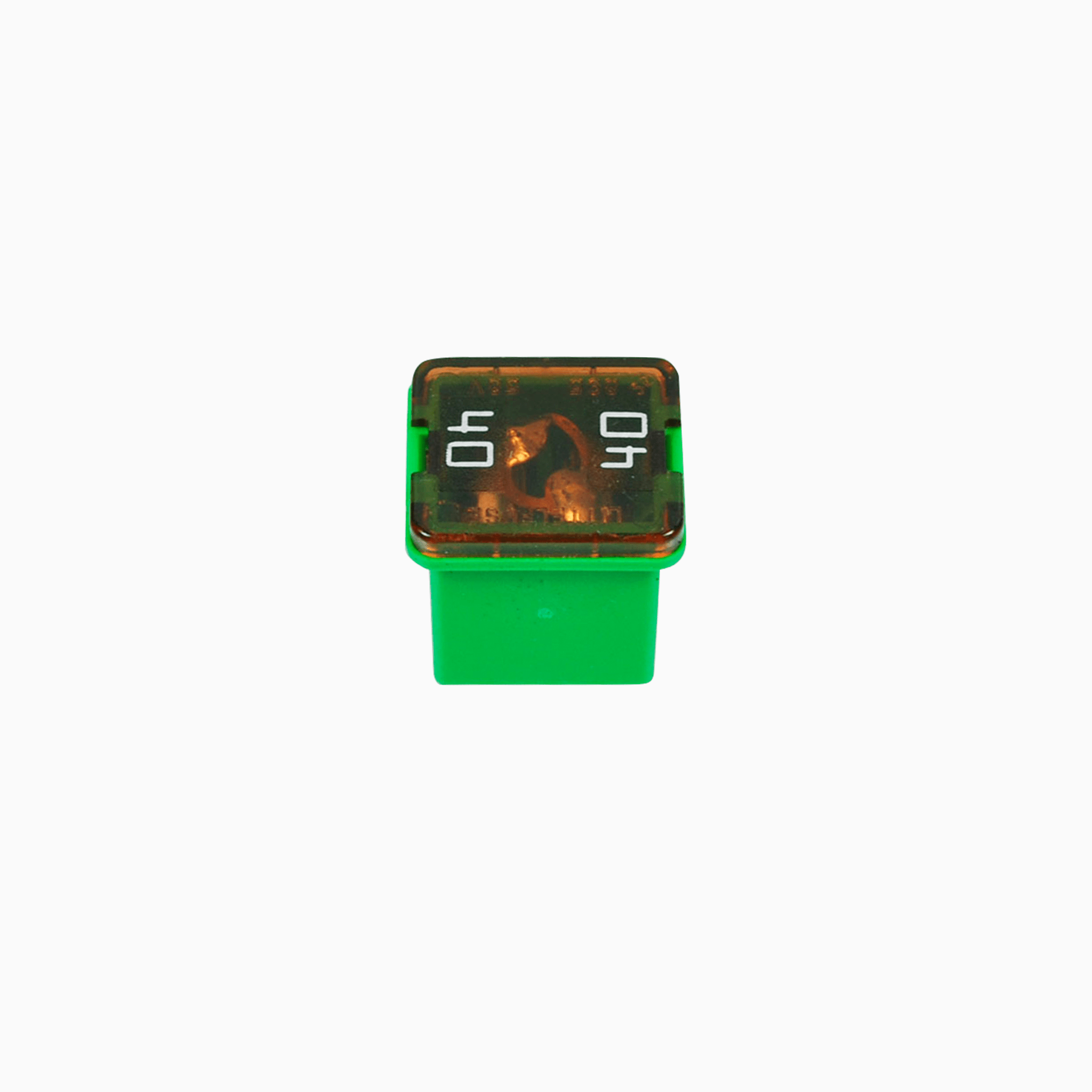

• Battery connection cable with vehicle main fuse

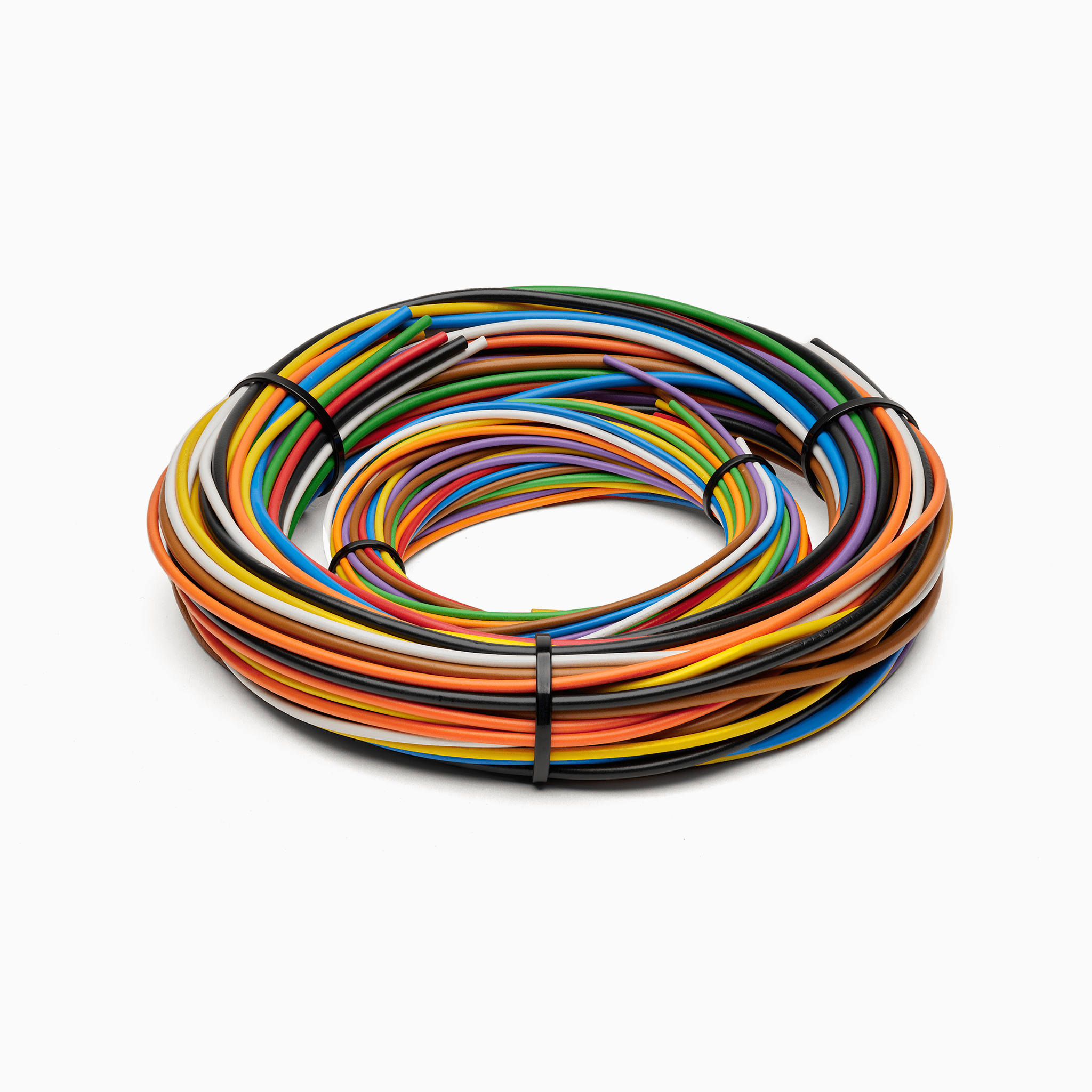

• Cable kit for complete vehicle wiring
• Bus terminal Earth connector
• mo.lock ignition lock

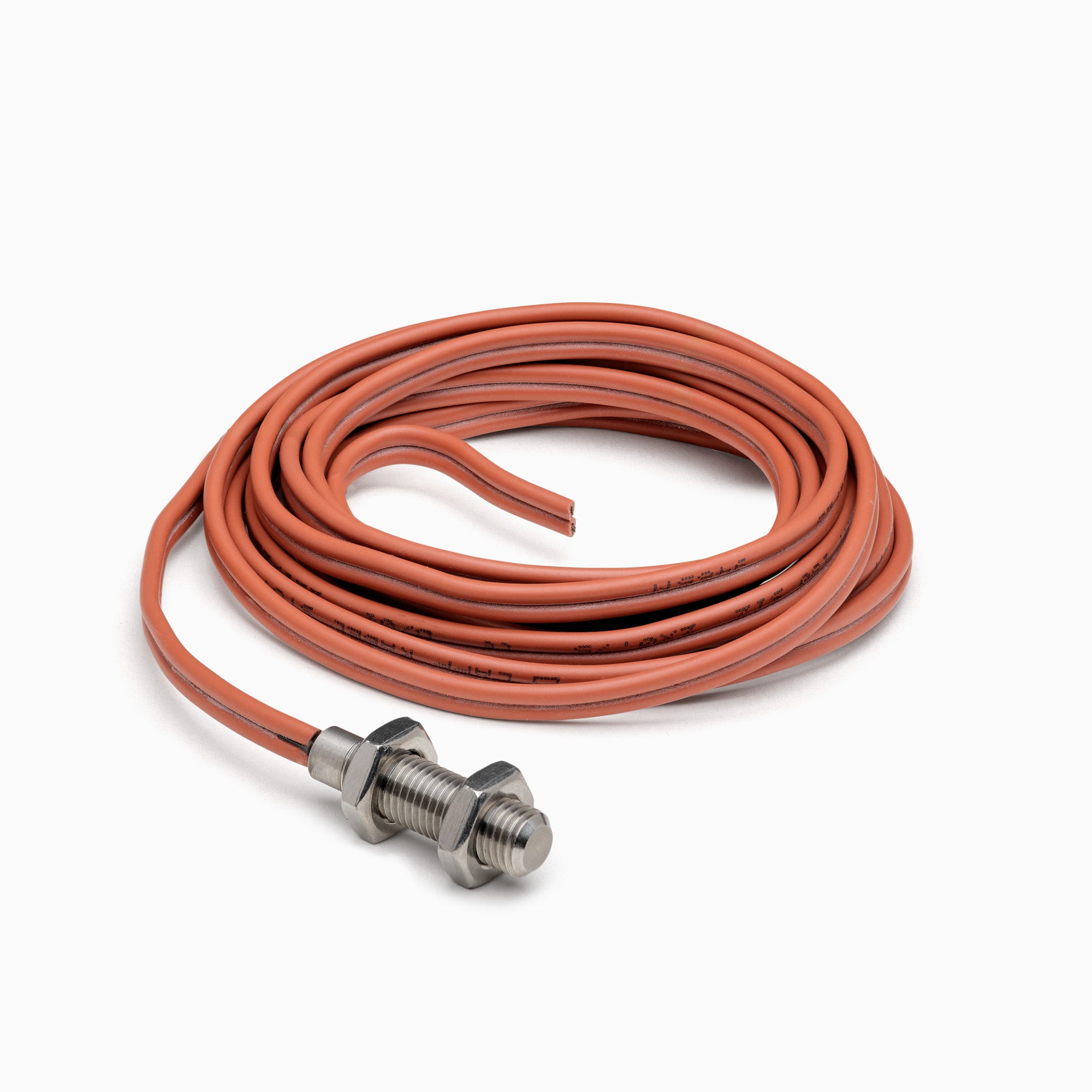

• Speedometer sensor and 2 neodymium mounts
