mo.switch basic

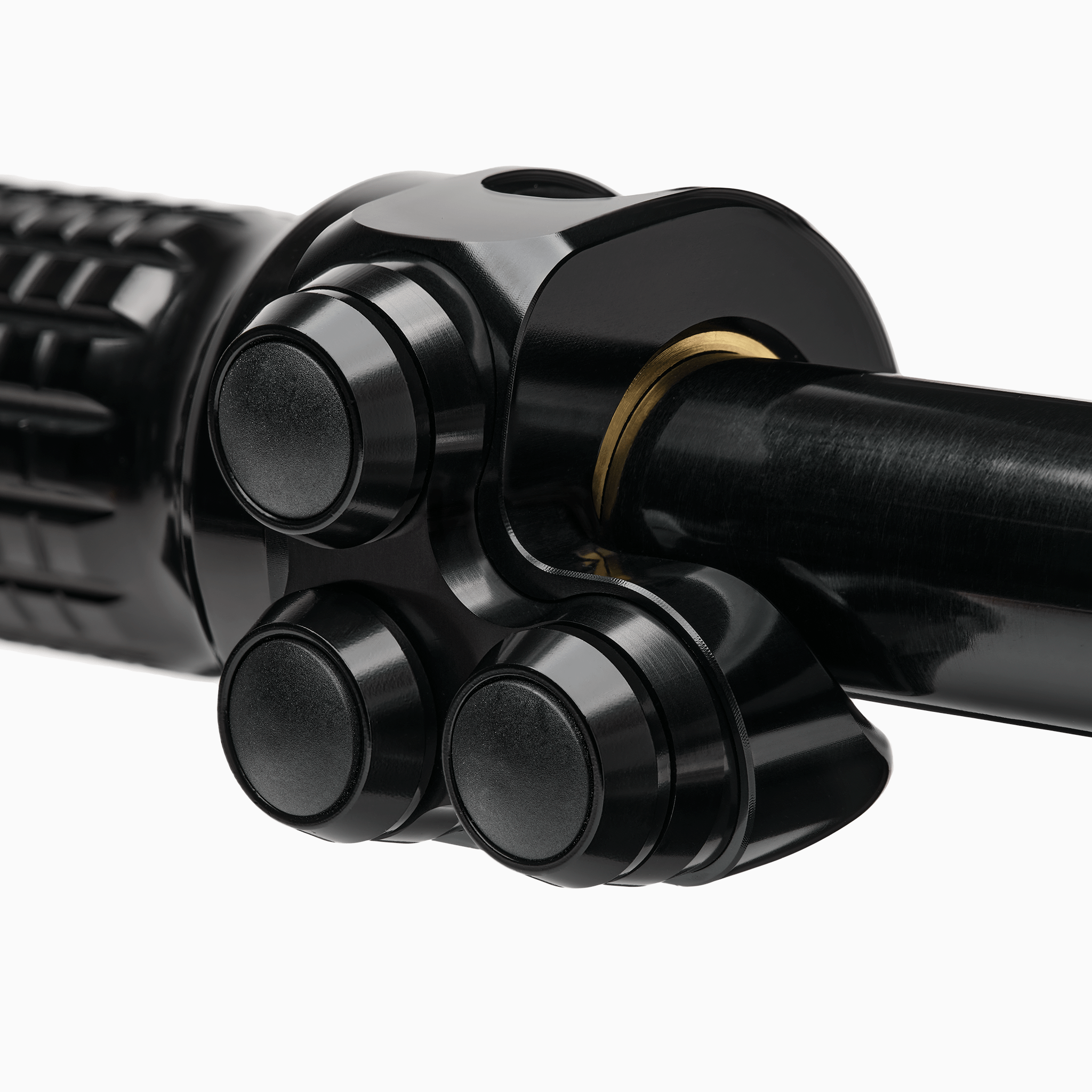

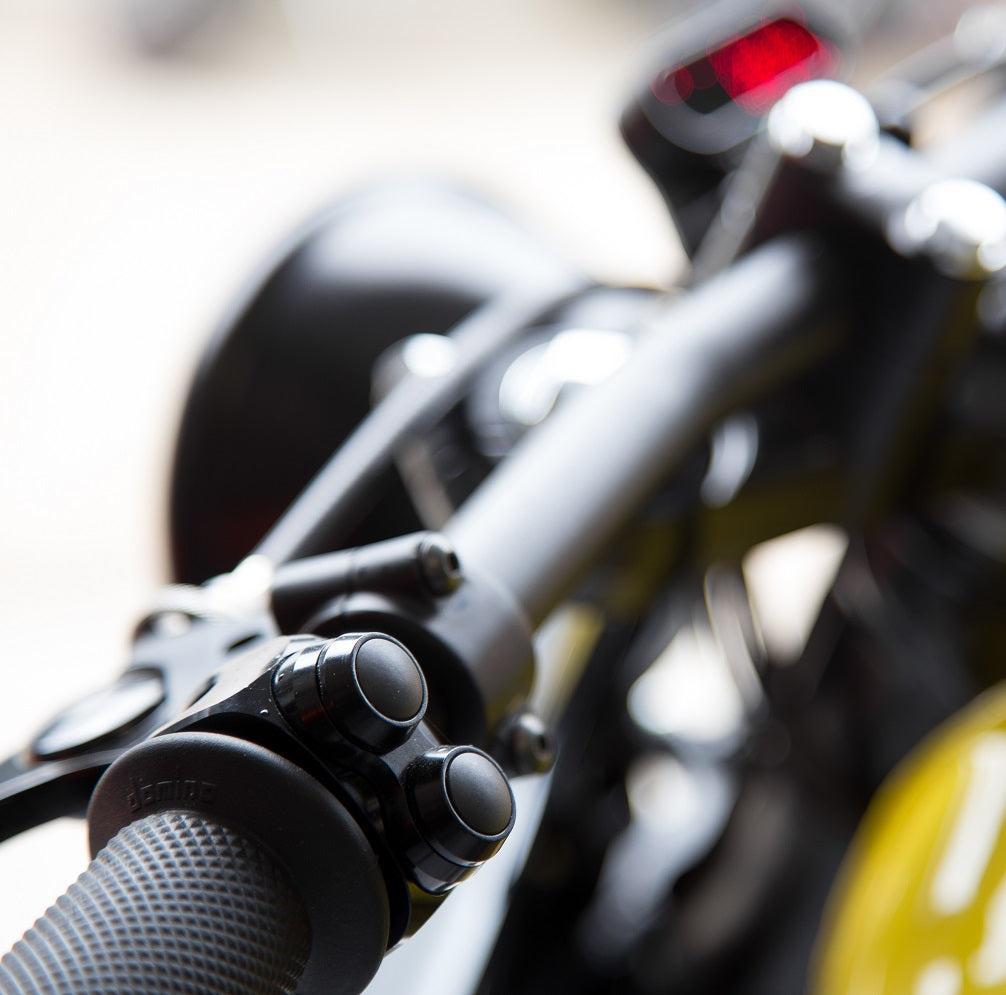

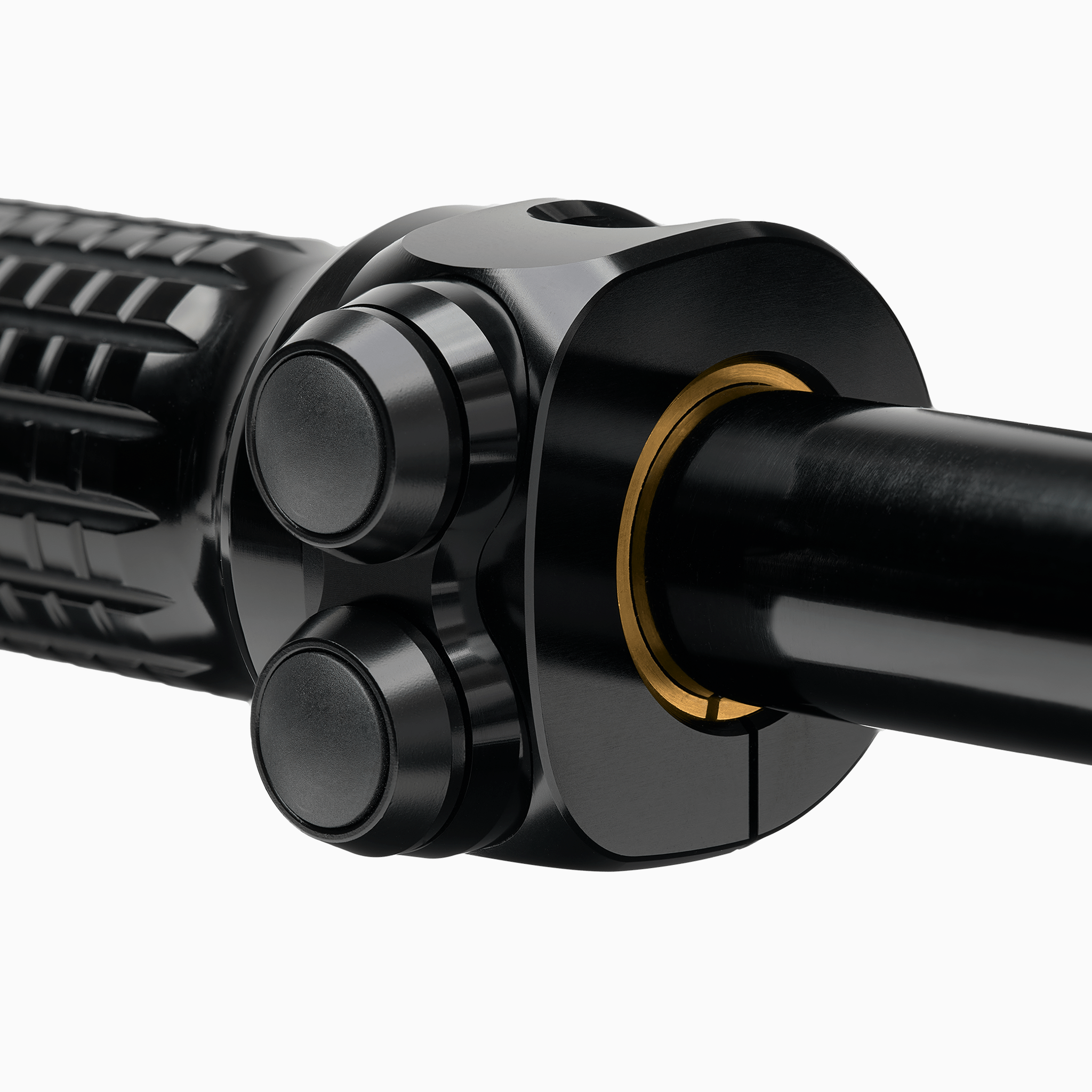

The mo.switch basic is a universal, high-quality push-button fitting for handlebars with a 1 inch or 22 mm (7/8 inch) tube diameter in a simple, elegant design. In conjunction with an electronic push-button control (not included), these CNC-manufactured push-button fittings can switch all electrical units such as lights, indicators, electric starter, horn and much more.

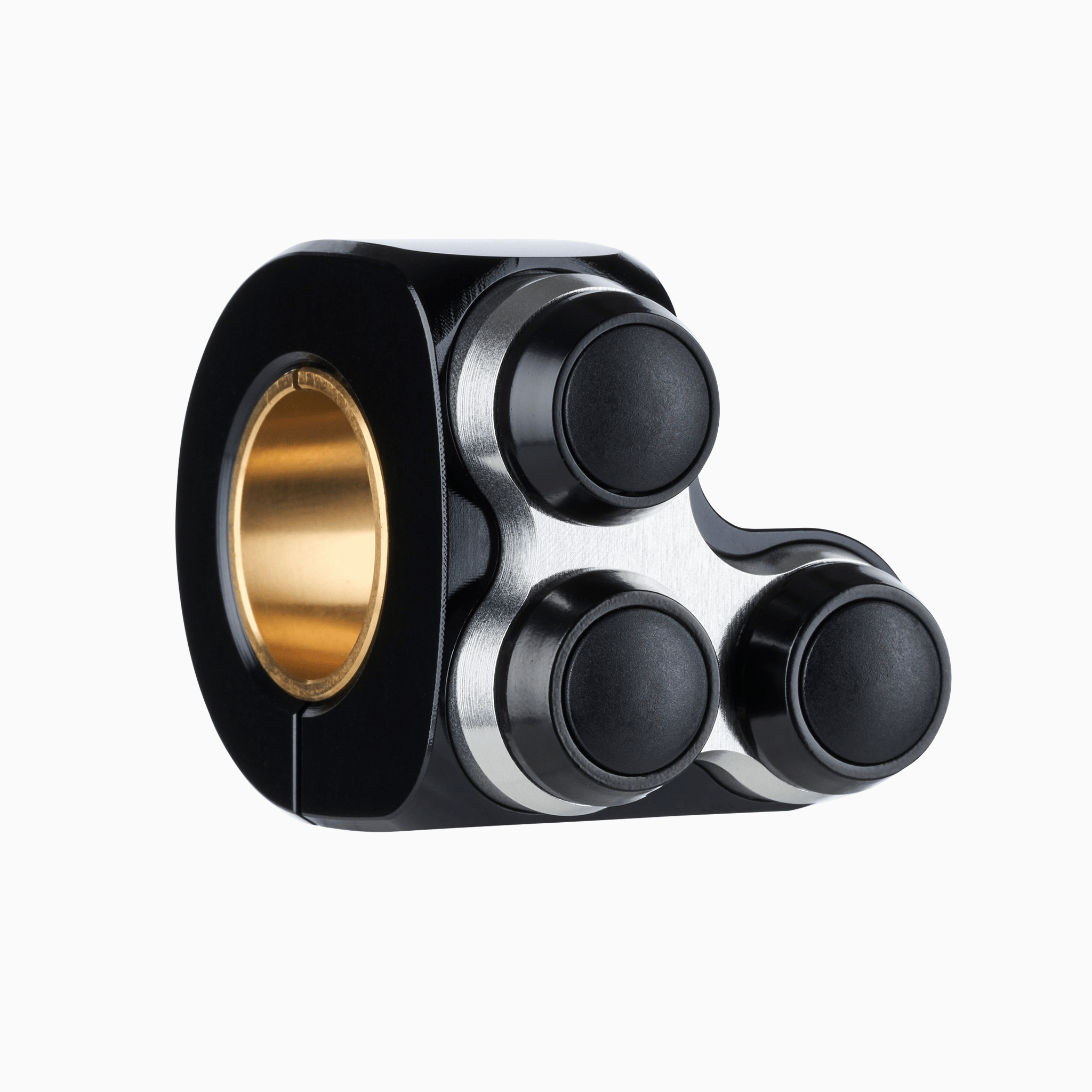

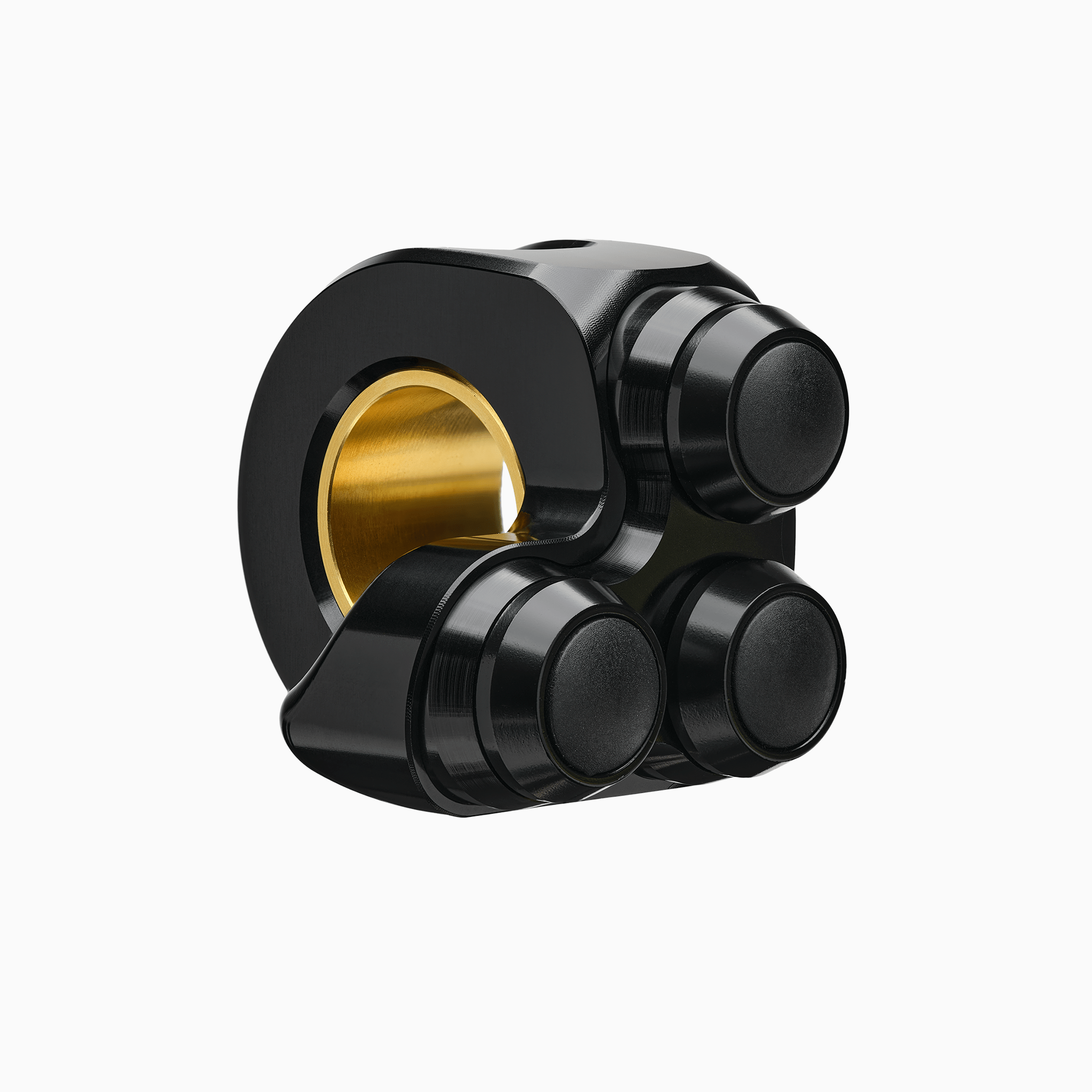

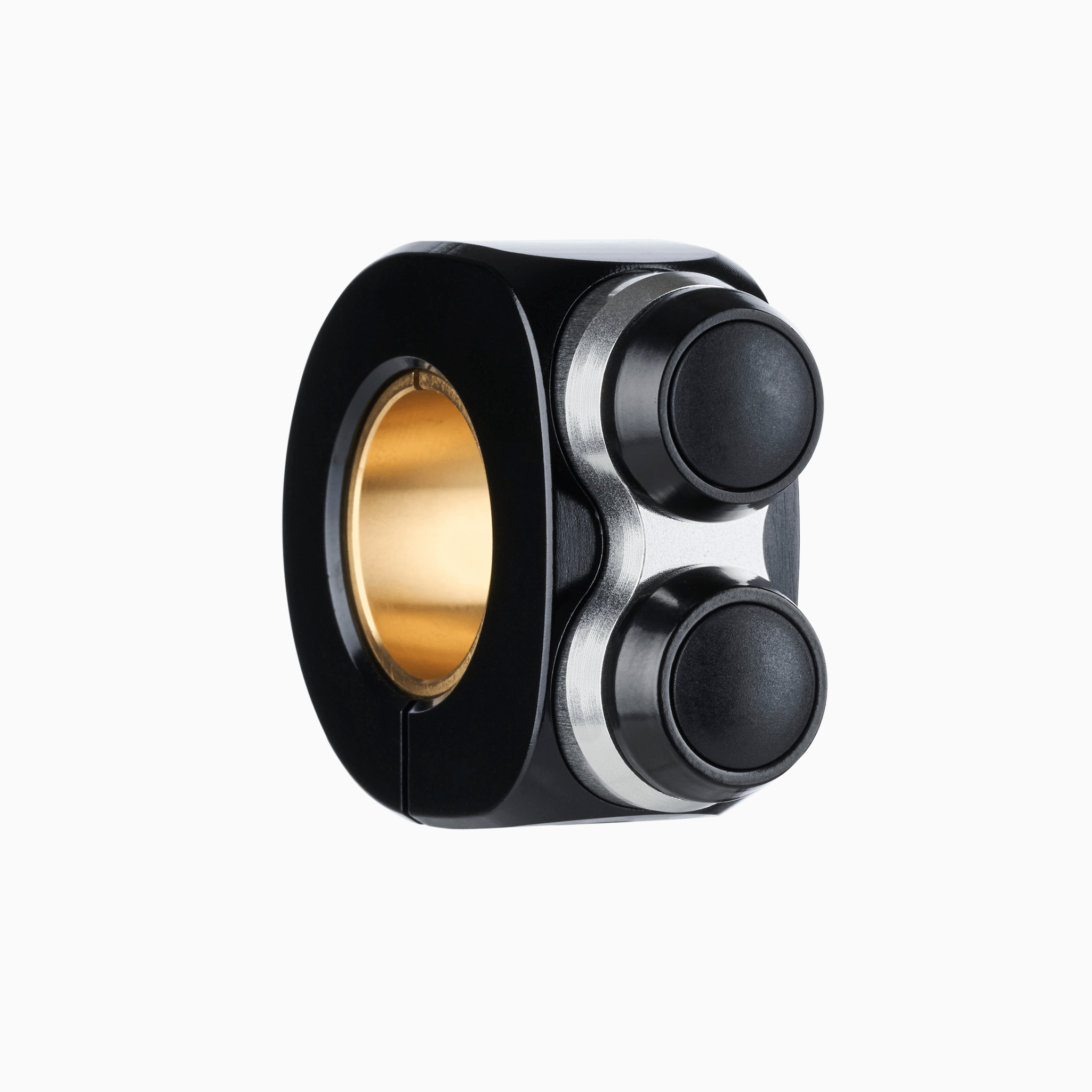

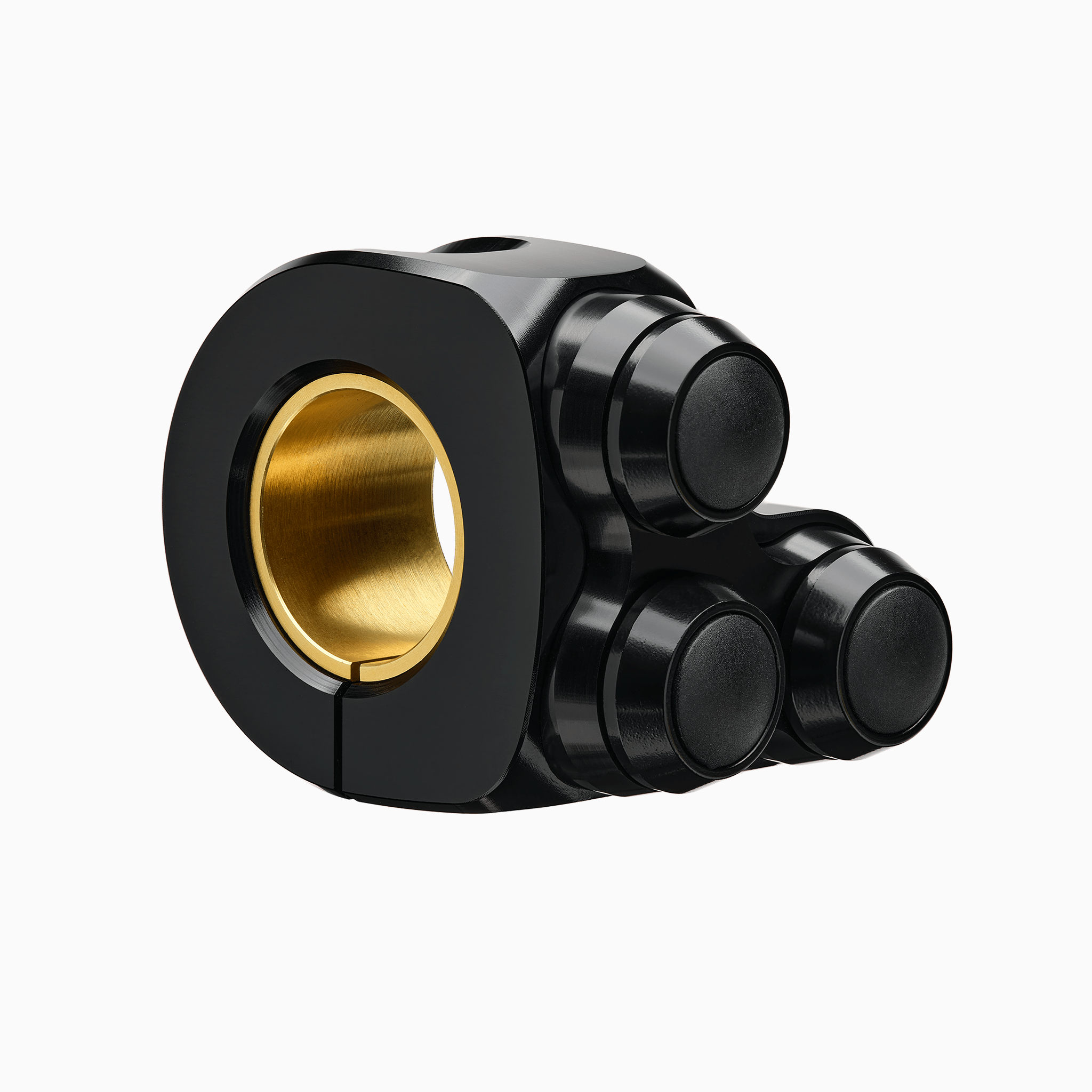

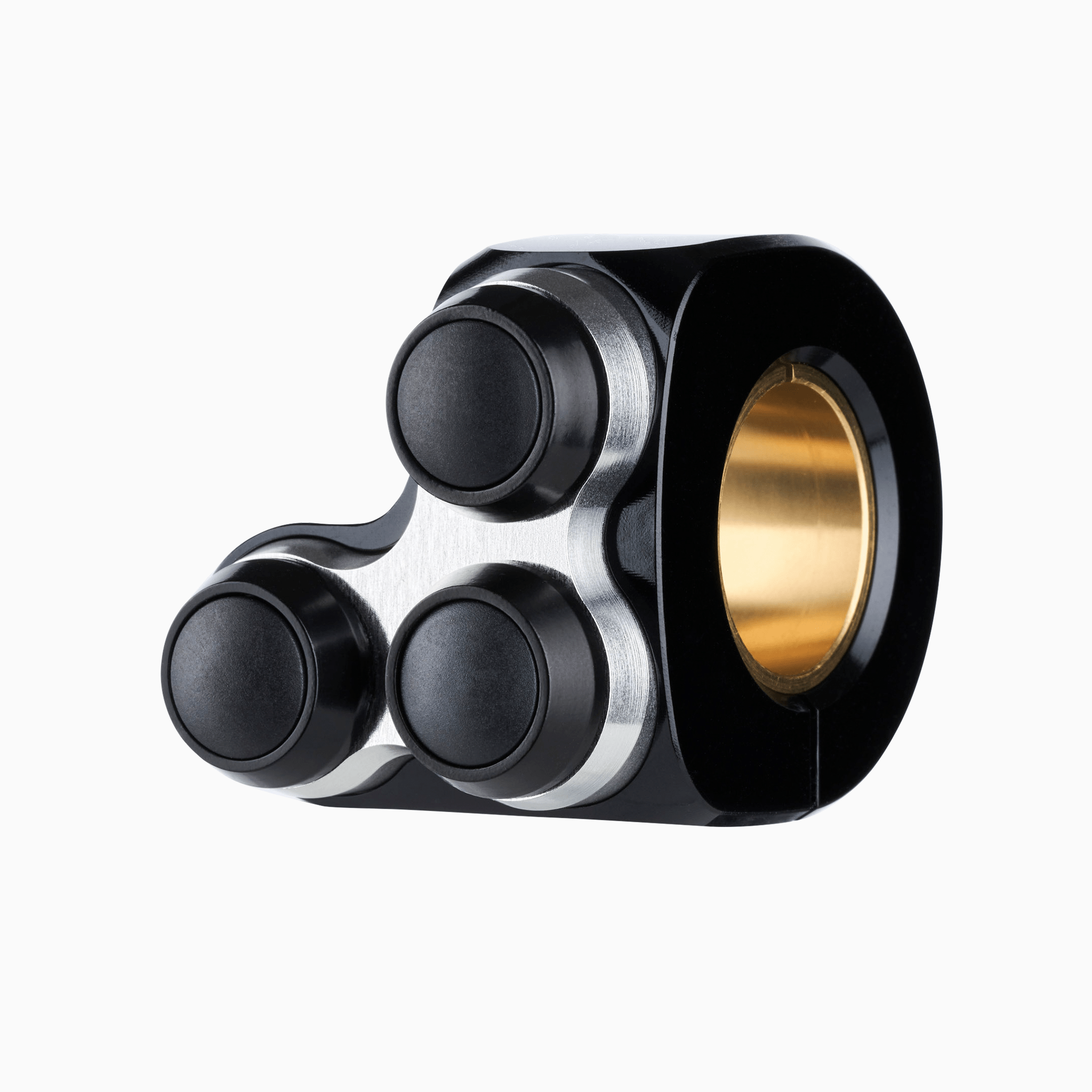

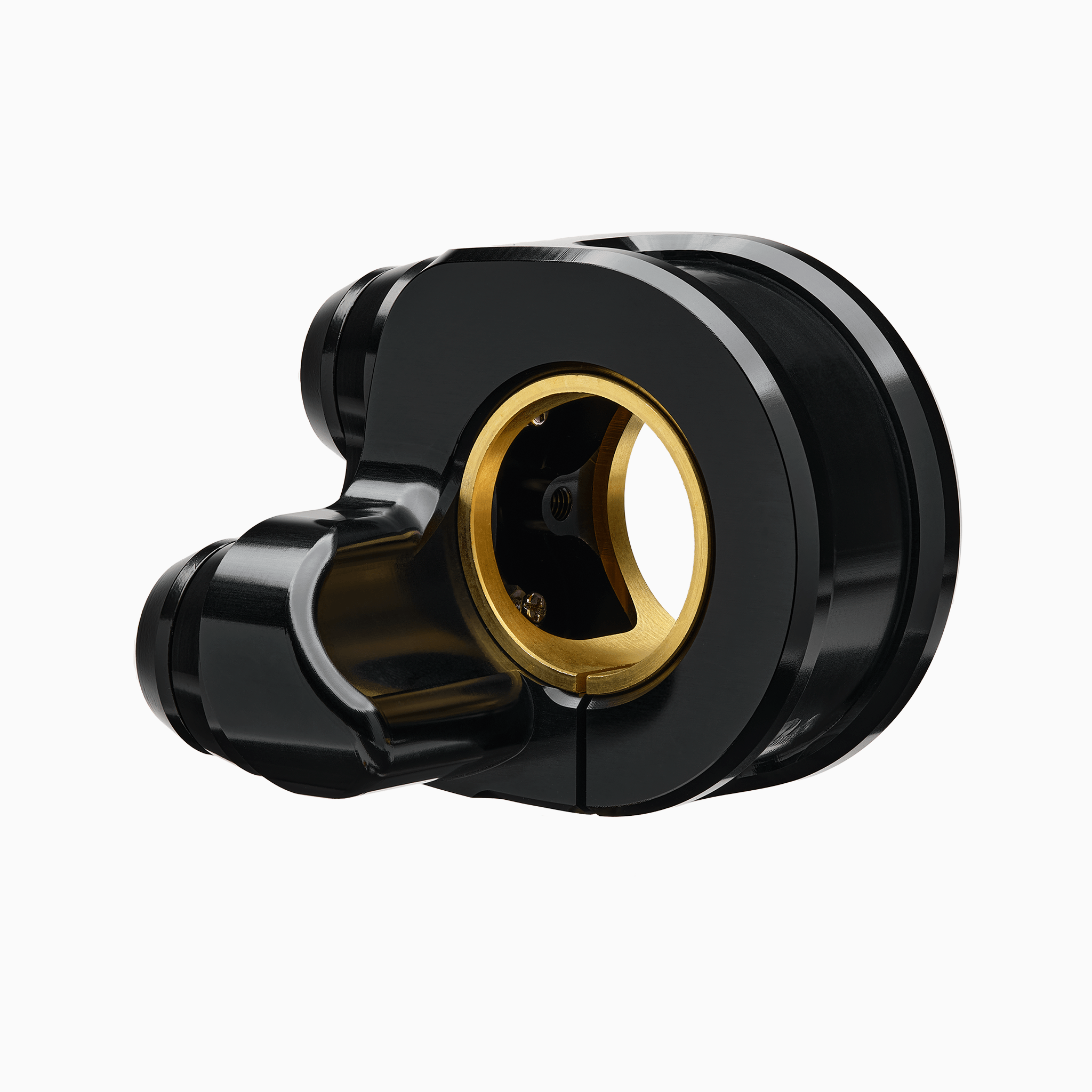

CNC-milled from billet aluminium, the housing is anodized in gloss black. The push-button fitting is also optionally available with a silver anodized push-button plate. The compact housing is equipped with either two or three individual buttons. All buttons are always aligned towards the driver.

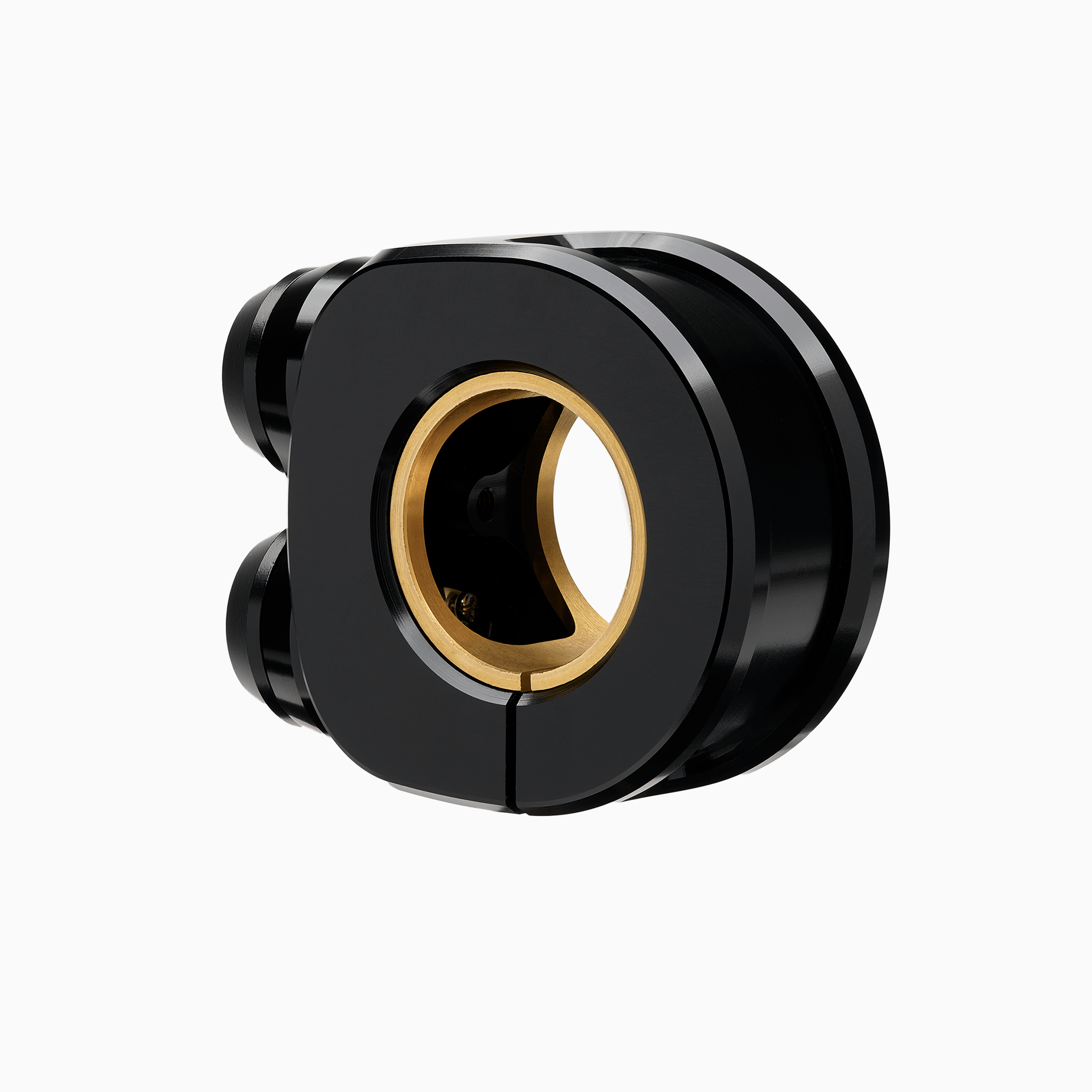

The two or three buttons per unit are always black in color. A concealed M4 stainless steel fastening screw clamps the housing securely and stably to any handlebar.

The individual buttons are of high quality, very robust and protected against vibrations and splash water (IP65).

Thanks to their sufficient size and ergonomic pressure point (light, mechanical detent), they provide a secure switching feel when actuated - even when operated with gloves.

With two connections per push-button, one-wire or two-wire wiring is easily possible. A connection for earth is already provided internally for single-wire wiring. Cable routing in the handlebars is therefore simple.

In the event of damage, the push-buttons are available individually and can be replaced. The mo.switch basic is of course compatible with all standard push-button controls such as the mo.unit blue/basic.

• Inner diameter: 22 mm and 1 inch
• Outer diameter of housing: approx. 45 mm
• Width: 2 push-buttons 22 mm, 3 push-buttons 42.5 mm

• mo.switch basic aluminum housing
• 2 or 3 high-quality push-buttons per unit
• Installation instructions
