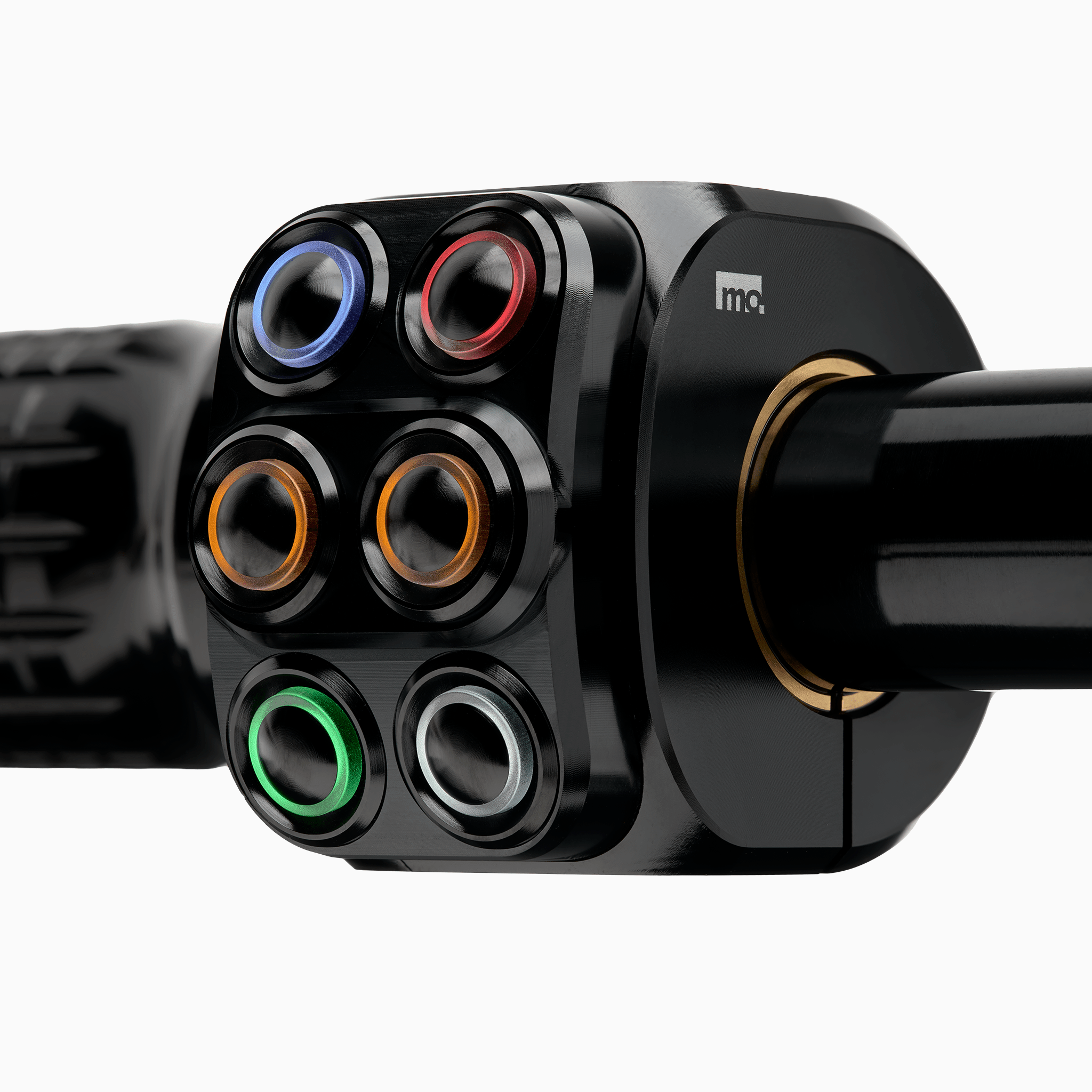

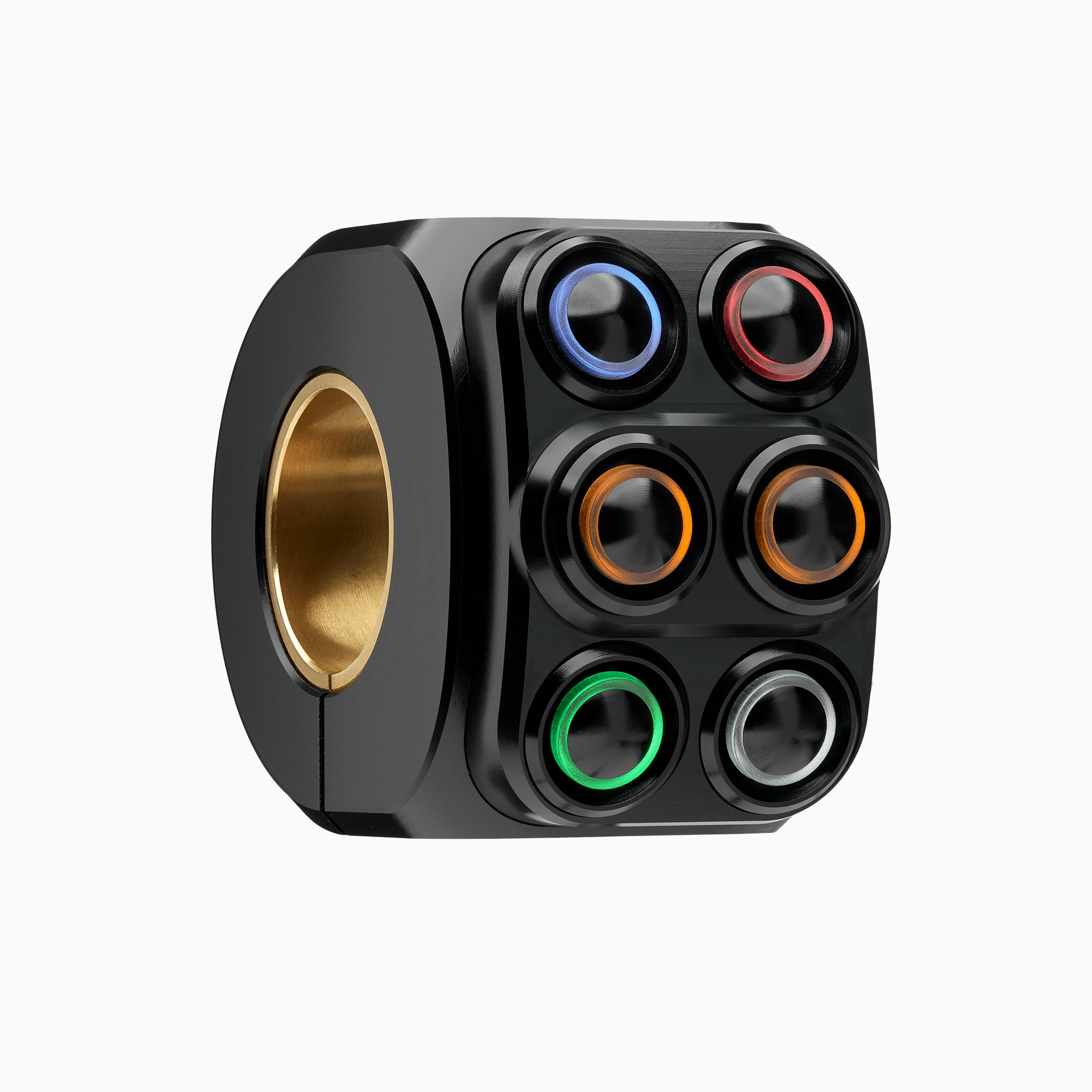

mo.switch pro

The mo.switch pro is our flagship product. A universal, high-quality switch fitting suitable for handlebar diameters of 22.2 mm or 25.4 mm.

The left-sided push-button panel is designed as a complete solution and includes all the standard push-buttons required to control the vehicle.

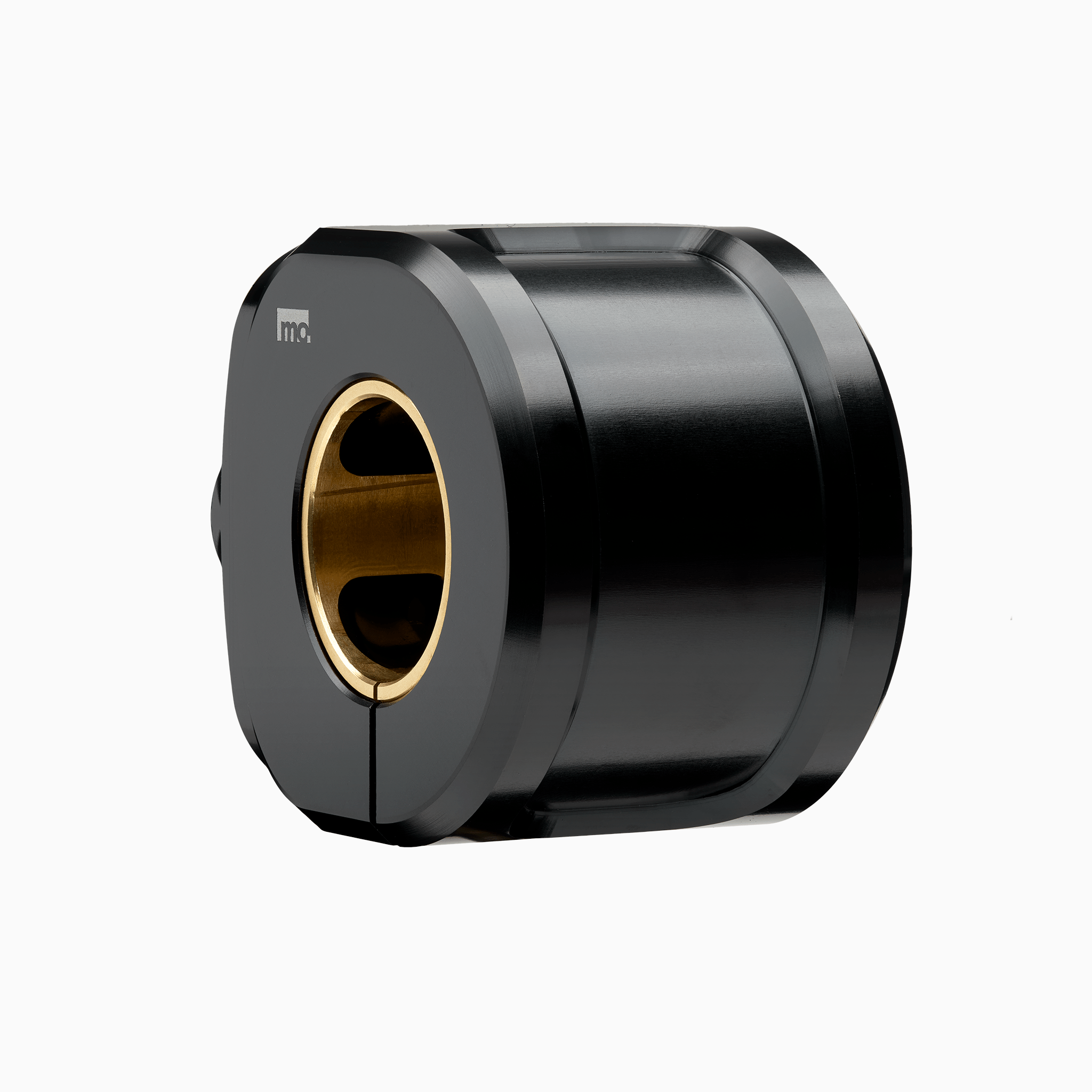

CNC-milled from billet aluminium, the housing is anodized black. A concealed M4 stainless steel fastening screw clamps the unit securely to the handlebars.

The two-part design with clamp housing and button inlay makes installation child's play. The handlebar adapter supplied acts as a drilling template.

The mo.switch pro is "ready to connect". Everything has already been completely wired, as we have already carried out the time-consuming connection of the individual buttons with the respective LED lighting.

The push-button unit is waterproof at the back and equipped with a highly flexible, black, 8-core cable.

The 1.8 m long cable is specially manufactured to our specifications, has a low cross-section and is perfect for routing through a handlebar.

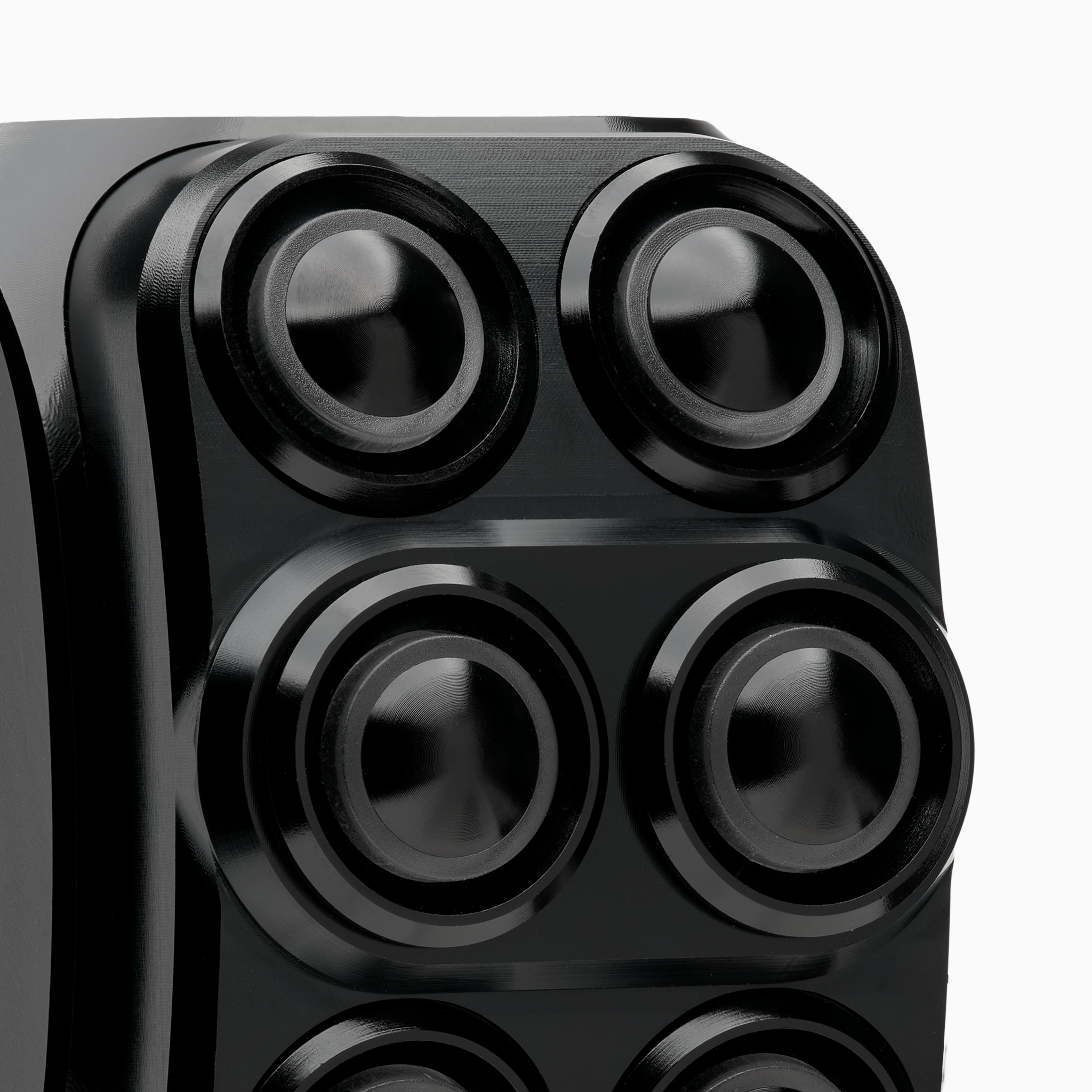

The buttons used are of high quality, vibration-resistant and protected against water jets in accordance with IP65. The button size and the ergonomic pressure point provide an optimum switching feel when operating with gloves.

• Push-button unit fully wired and waterproof encapsulated
• High-quality connection cable with a length of 1.8 m
• resistant to water jets according to IP65
• Ring-shaped LED illumination of the individual buttons
• Button functions: Horn | High beam | Left & right indicators | Starter | Instrument
• Clean look without visible screws
• Simple installation without wiring individual buttons
• suitable for handlebar diameter 22.2mm (7/8") or 25.4mm (1")
• CNC-milled from high-quality aircraft aluminium and UV-resistant anodized
• Housing color black, push-button black, push-button LED colors red, green, blue, white, yellow
• Maximum push-button switching current: 1A, all push-buttons switch to earth
• Additional mo.unit switching electronics required
• Height 48mm, width 36mm, depth 58mm

• Push-button unit with 1.8 m connection cable
• Fastening screws
