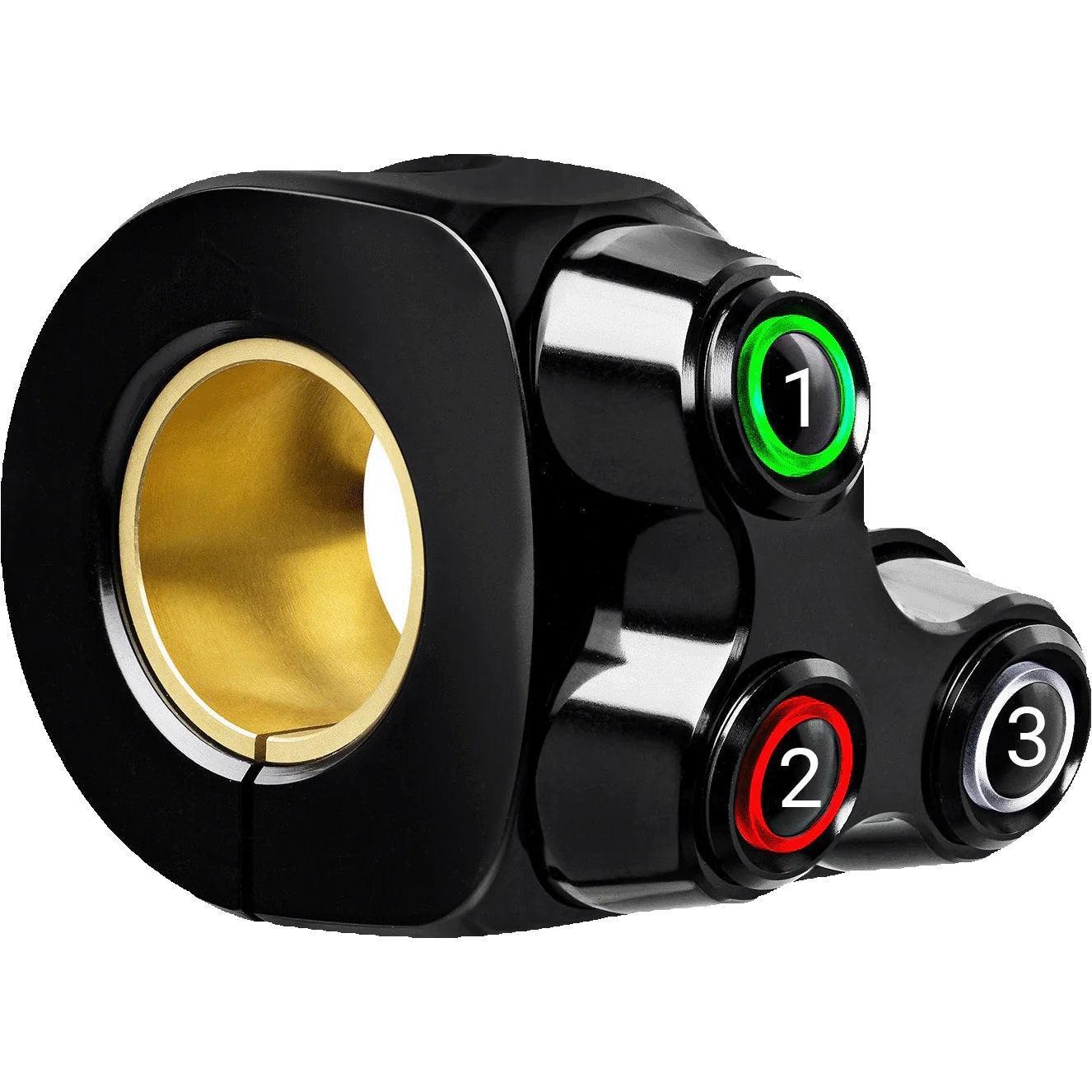

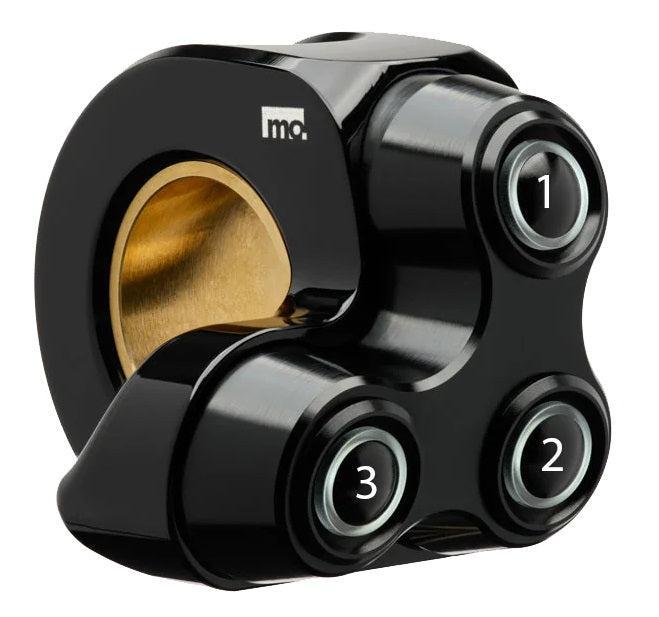

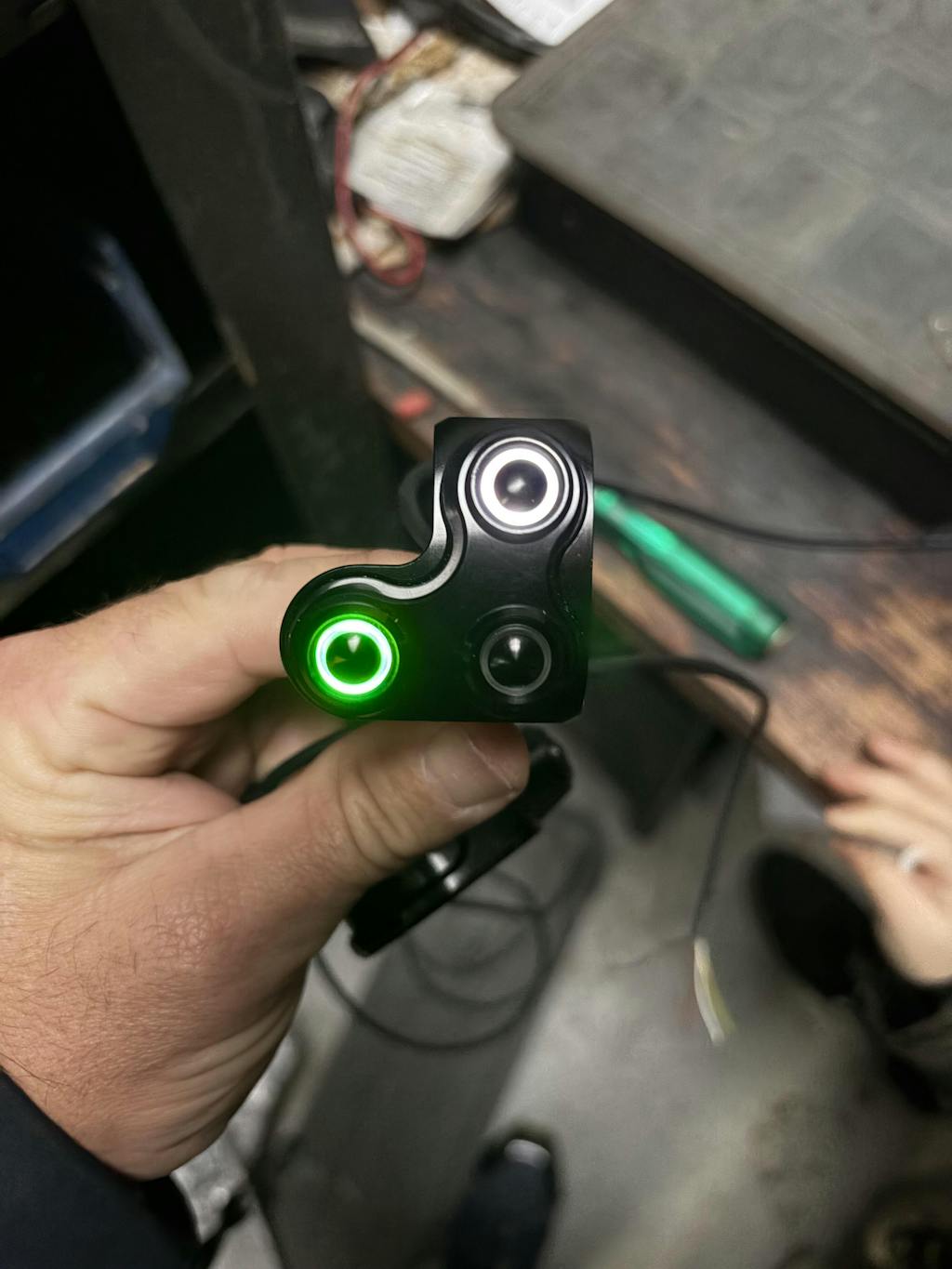

mo.switch basic LED 3 push-buttons

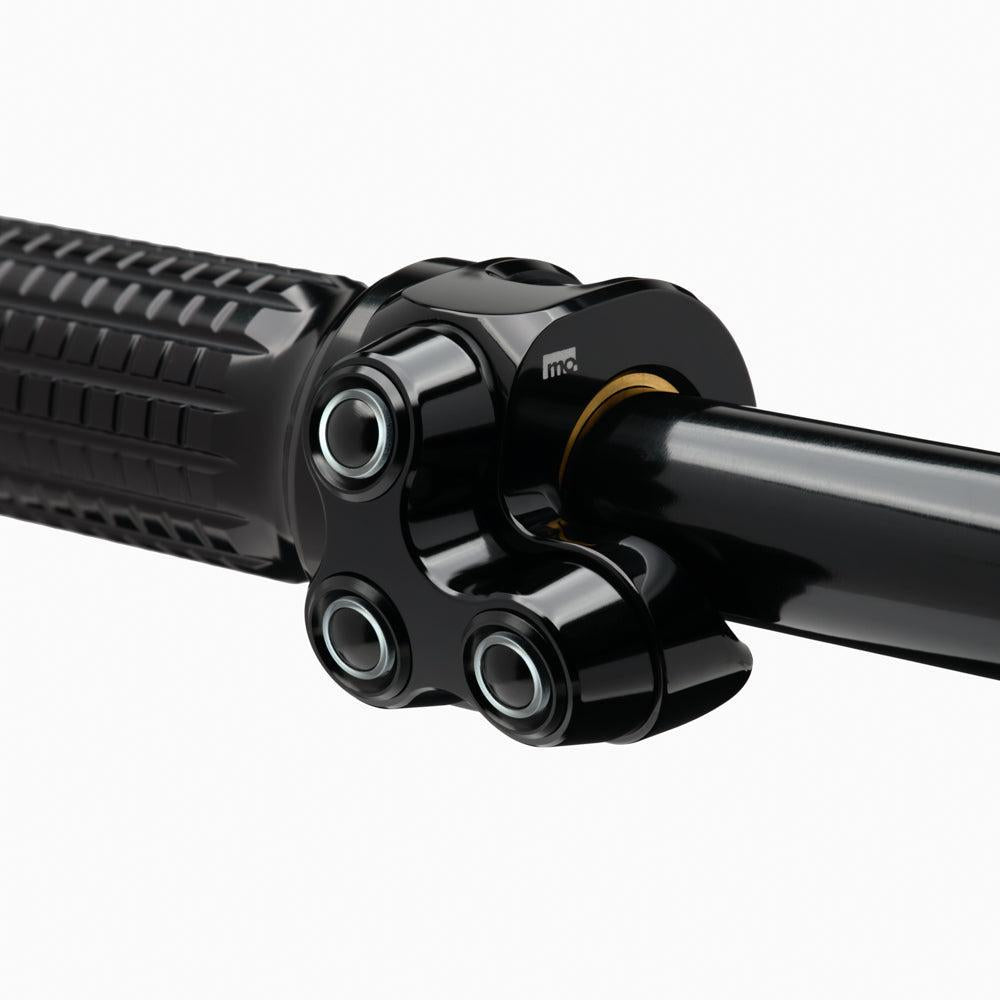

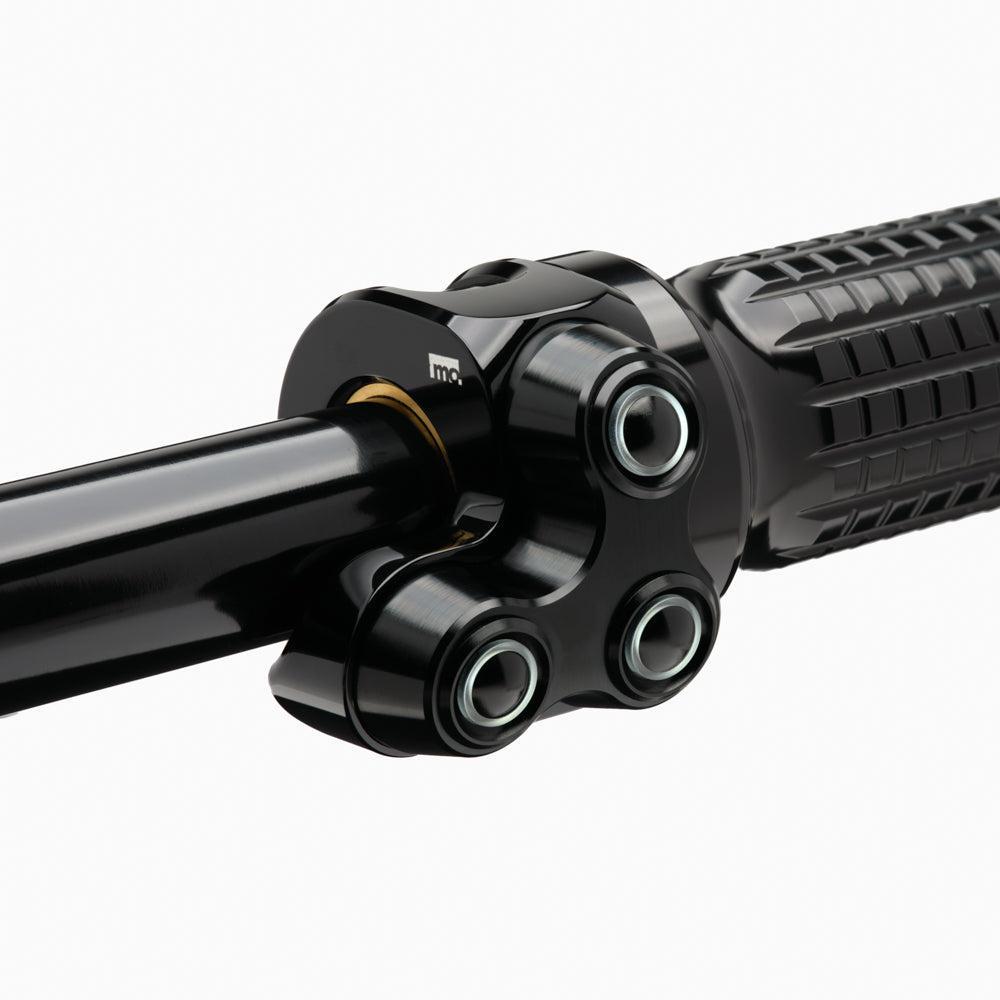

The mo.switch basic LED is a universal, high-quality push-button fitting for handlebars with a 1 inch or 22.2 mm (7/8 inch) tube diameter in a simple, elegant design. In conjunction with an electronic push-button control (not included), these CNC-manufactured push-button fittings can switch all electrical units such as lights, indicators, electric starter, horn and much more.

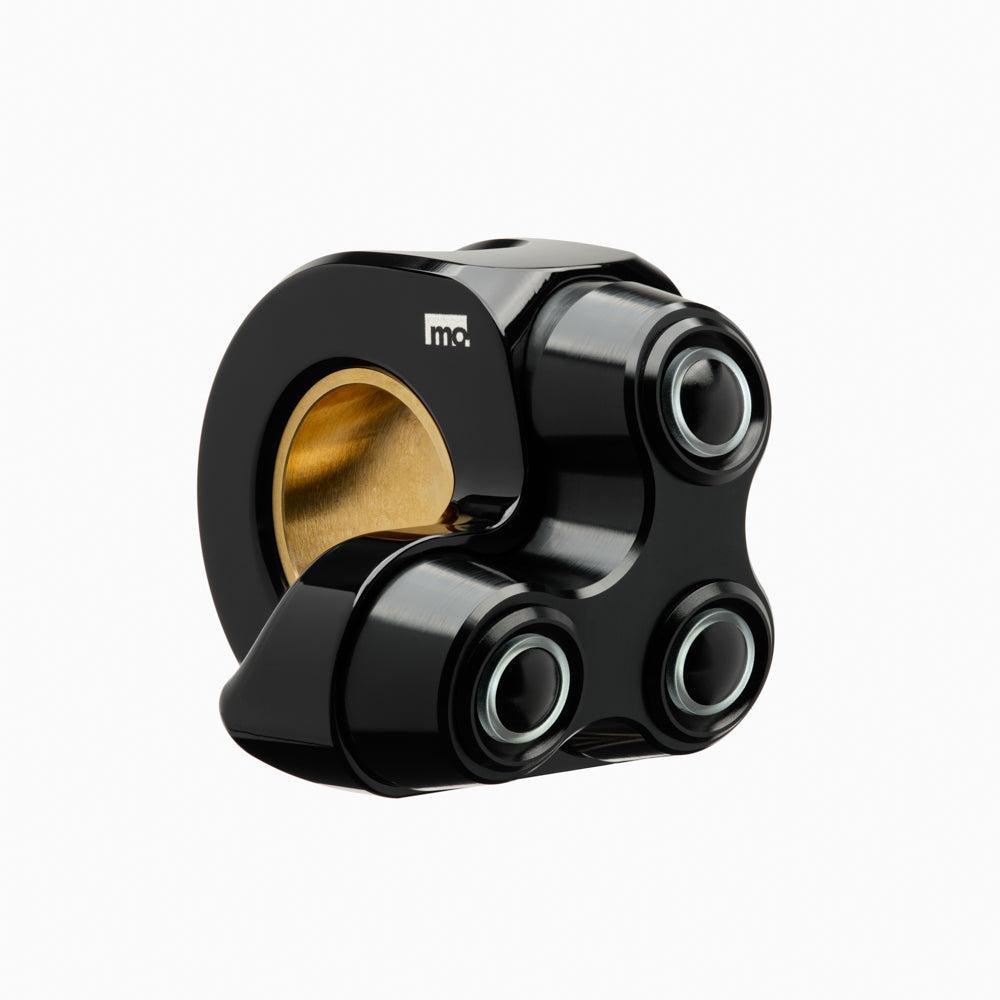

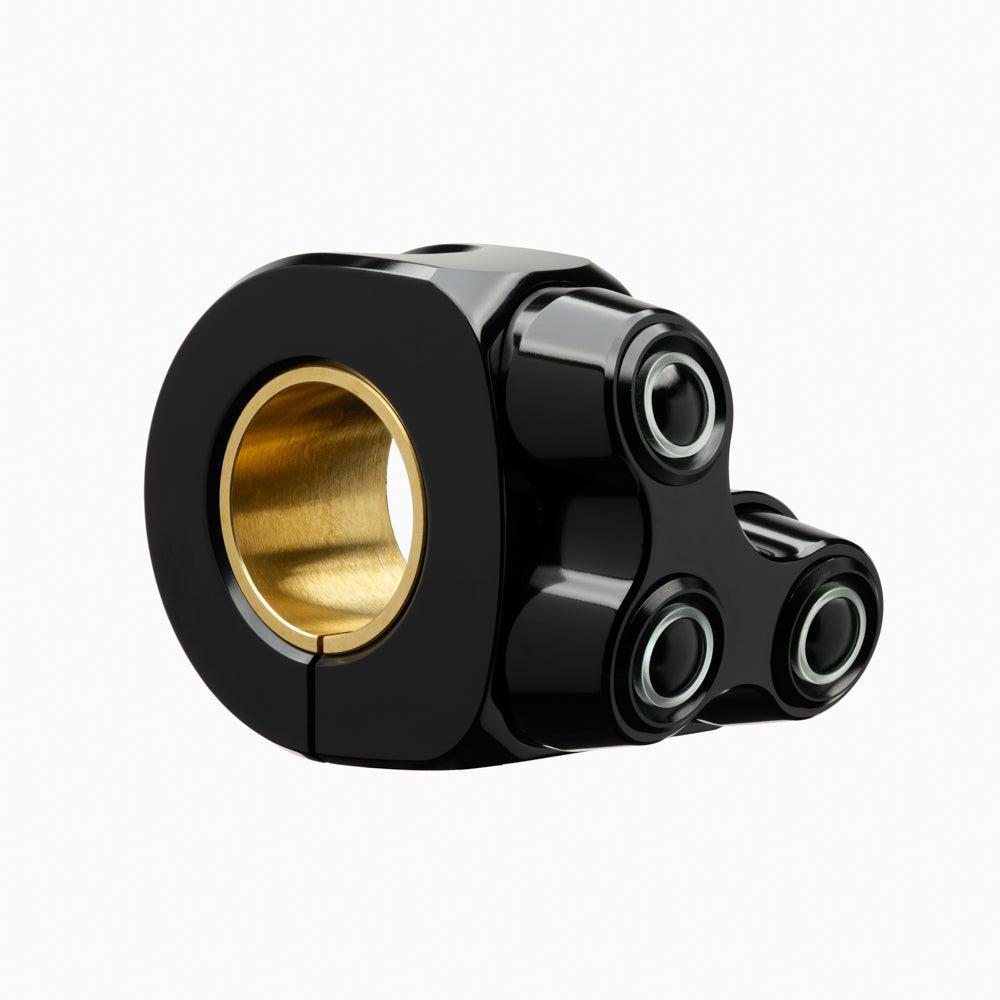

CNC-milled from billet aluminium, the housing is anodized in glossy black.

The individual push-buttons are of high quality, very robust and protected against vibrations and splash water (IP65). Standard version with white LED push-buttons. Each push-button color can be customized in 5 different LED colors.

Thanks to their sufficient size and ergonomic pressure point (light, mechanical detent), they provide a secure switching feel when actuated - even when operated with gloves.

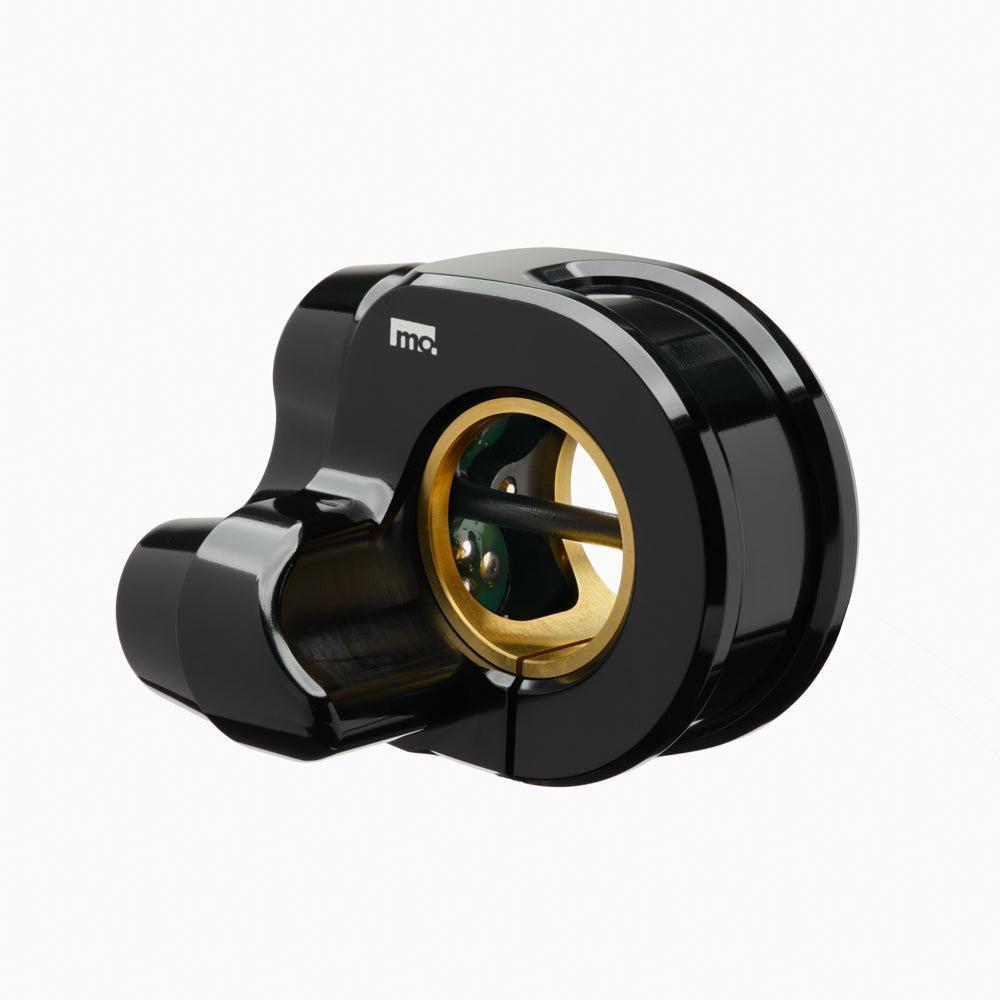

With two connections per push-button, one-wire or two-wire wiring is easily possible. A connection for earth is already provided internally for single-wire wiring. Cable routing in the handlebars is therefore simple.

In the event of damage, the buttons are available individually and can be replaced.

• Inner diameter: 7/8 and 1 inch
• Outer diameter of housing: approx. 45 mm
• Width: 2 push-buttons 22 mm, 3 push-buttons 42.5 mm
• Push-button completely wired
• High-quality connection cable with a length of 1.8m
• LED illuminated buttons, LED color selectable when ordering
• CNC-milled from solid material and UV-resistant anodized
• Housing color black, push-button black, push-button LED color white
• Maximum push-button switching current: 1A, all push-buttons switch to earth
• Additional mo.unit switching electronics required

• mo.switch basic aluminum housing
• 2 or 3 high-quality push-buttons per unit
• QR code for installation and operating instructions
