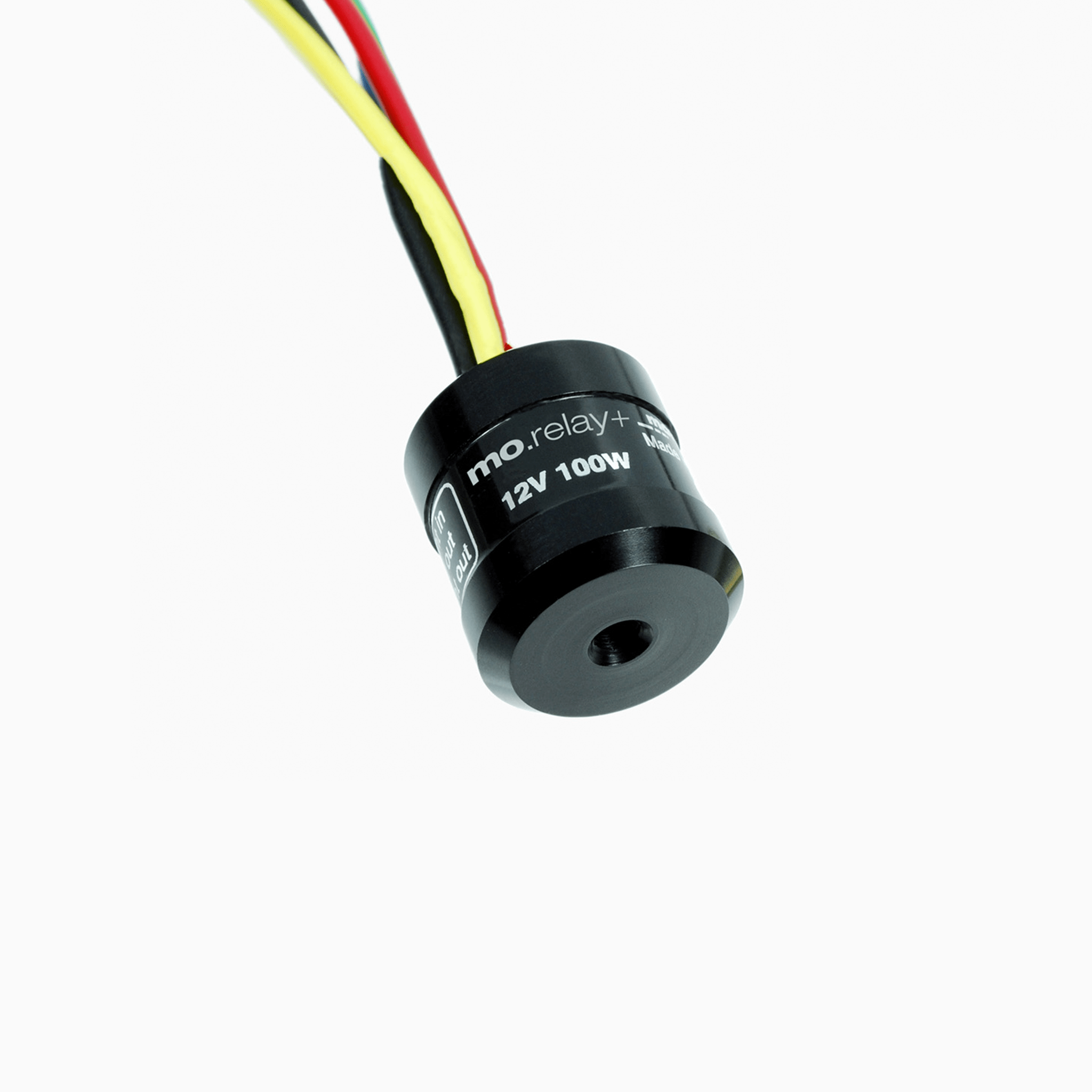

motogadget mo.relay+

Depending on how long the respective blinker button is pressed, 4 modes can be called up:

1. Lane change: Briefly press the button - flash 3 times, then automatic switch-off.
2. Turning: briefly press the button - flash 10 times, then automatic switch-off.
3. Continuous flashing: press and hold the button - switch off by pressing a button again.
4. The mo.relay+ also has a flashing warning function when both buttons are pressed simultaneously.

The mo.relay+ is load-independent (1-100W) and can supply almost all possible LED indicators, micro indicators, halogen indicators, 10W or 21 Watt bulbs with a constant flashing frequency. An immediate, loss-free and brighter illumination of the indicators is a result of the effective microelectronics. The small and lightweight aluminium housing is black anodized and has a practical M3 mounting thread. On-the-fly mounting with cable ties is also possible. Ideal for conversions and custom bikes with limited space. The electronics are completely waterproof, vibration-resistant and have overload protection.

Alternative flasher relays WITHOUT push-button control are our mo.flash or mo.wave. The flasher relay WITHOUT push-button control, with automatic switch-off is the mo.stop.

Advantages

• Very small and light, easy to attach
• Ideal for custom bikes and conversions with limited space - clunky standard flasher relays or load resistors are a thing of the past
• No additional push-button control necessary
• Intuitive timer control and automatic switch-off function
• Almost load-independent (min. 1 watt)
• Works completely with digital semiconductor technology. Control via microprocessor. No mechanics, no coils, no contacts
• Always constant and correct flashing frequency therefore suitable for almost all LED turn signals, all micro turn signals, halogen turn signals, 10 watt turn signals, 21 watt turn signals
• Works e.g. with 4 turn signals or 2 handlebar end indicators
• Immediate, loss-free, brighter illumination of the indicators
• Completely waterproof and vibration-resistant as it is fully encapsulated
• Short-circuit proof, automatic overload protection. Switches up to 100 watts of power.
• No heat generation during operation
• Operating voltage from 5V to 18V

• Diameter without cable: 19 mm
• Height: 19 mm
• Thread size: M3

1x mo.relay+
