motoscope tiny

The motoscope tiny is a very small, analog speedometer in 49mm format. It measures speed digitally and displays it precisely via a stepper motor and pointer. The installation diameter of 49 mm and the installation depth of just 24 mm open up a wide range of installation options. The dial has no display cut-out or LCD and has a convincing classic-style look. The perfect solution for purists and minimalists.

Housing

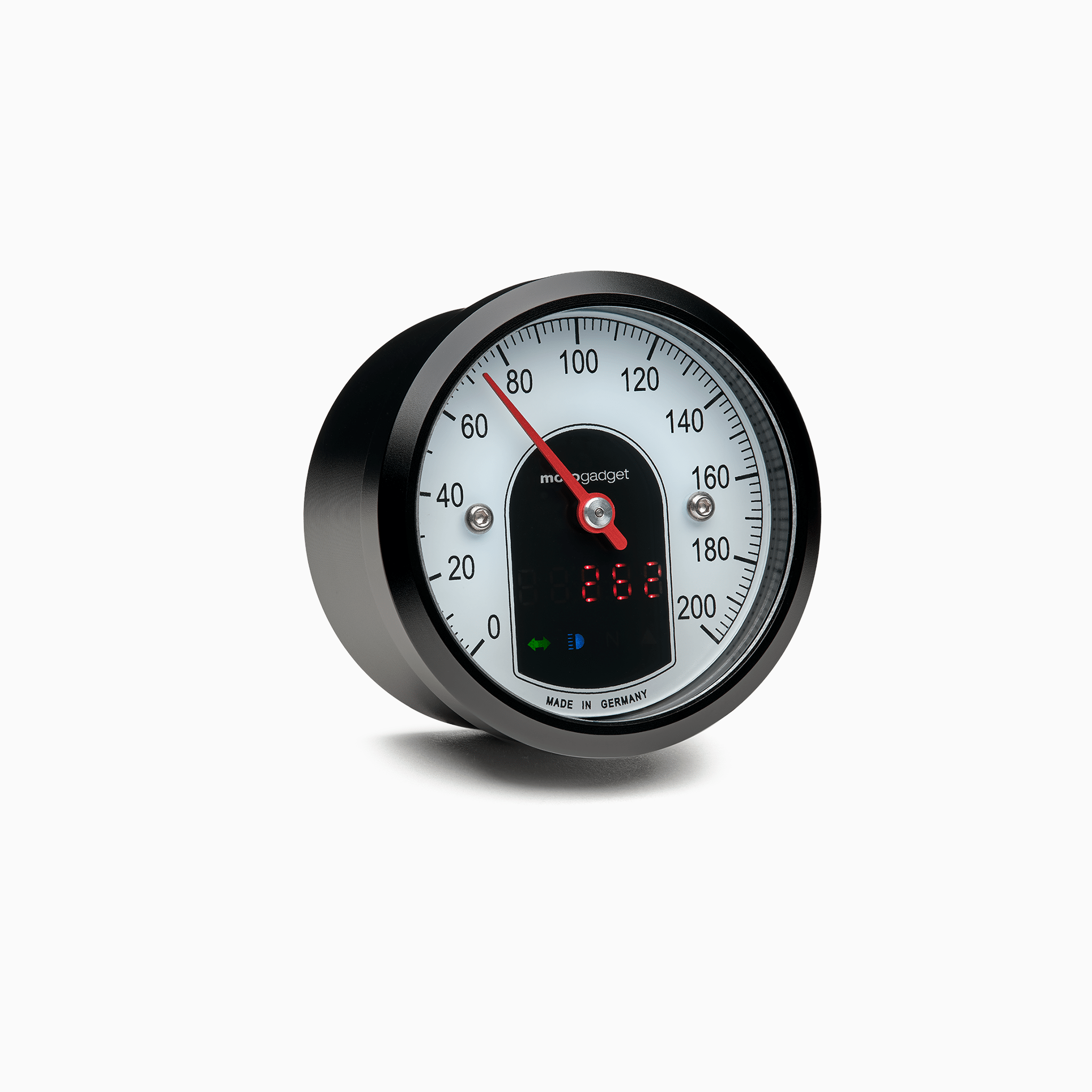

The high-quality aluminium housing is machined from a solid block and its surface is anodized black. The screw ring is available with a black anodized or highly polished finish.
The housing is 100% waterproof and insensitive to vibrations.

Display

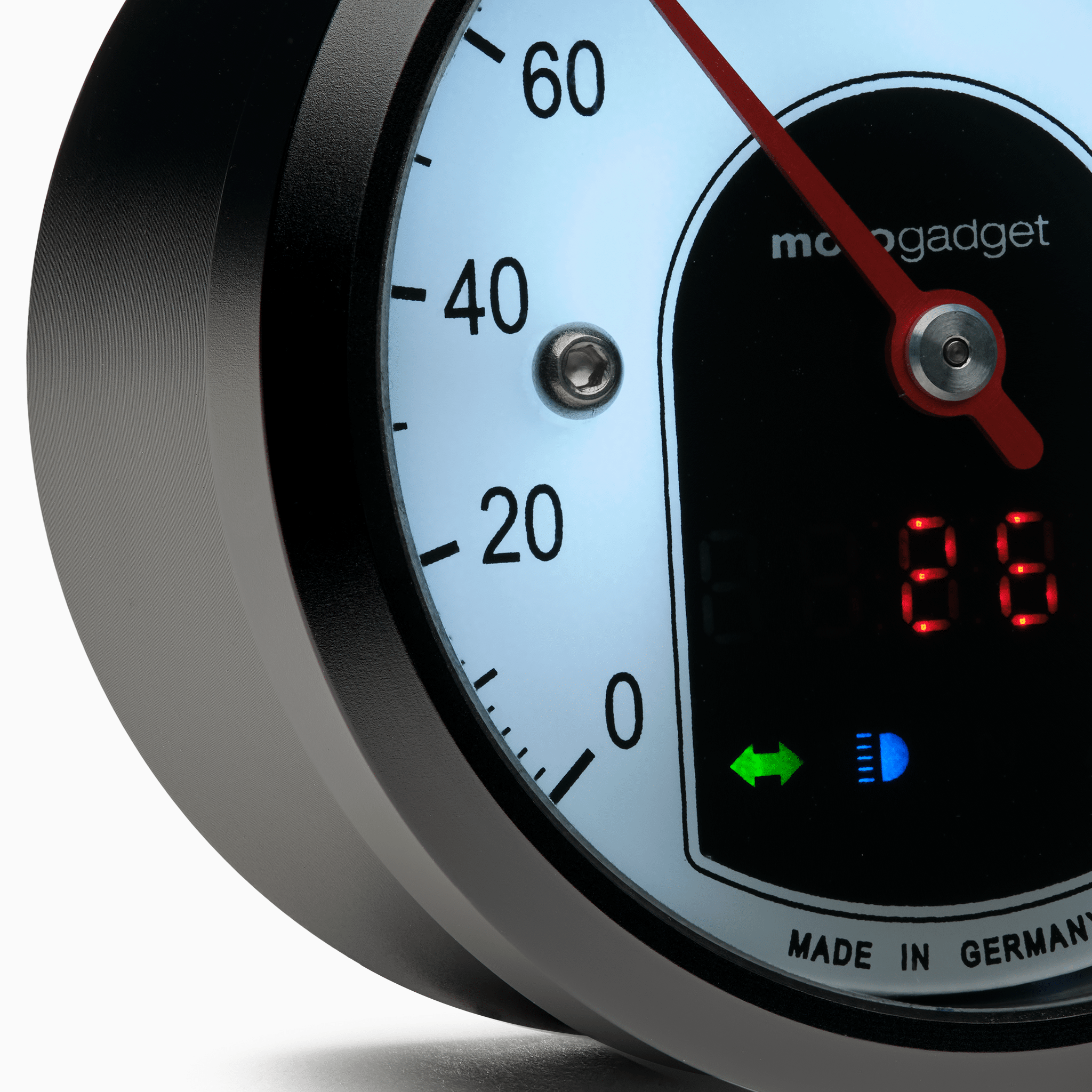

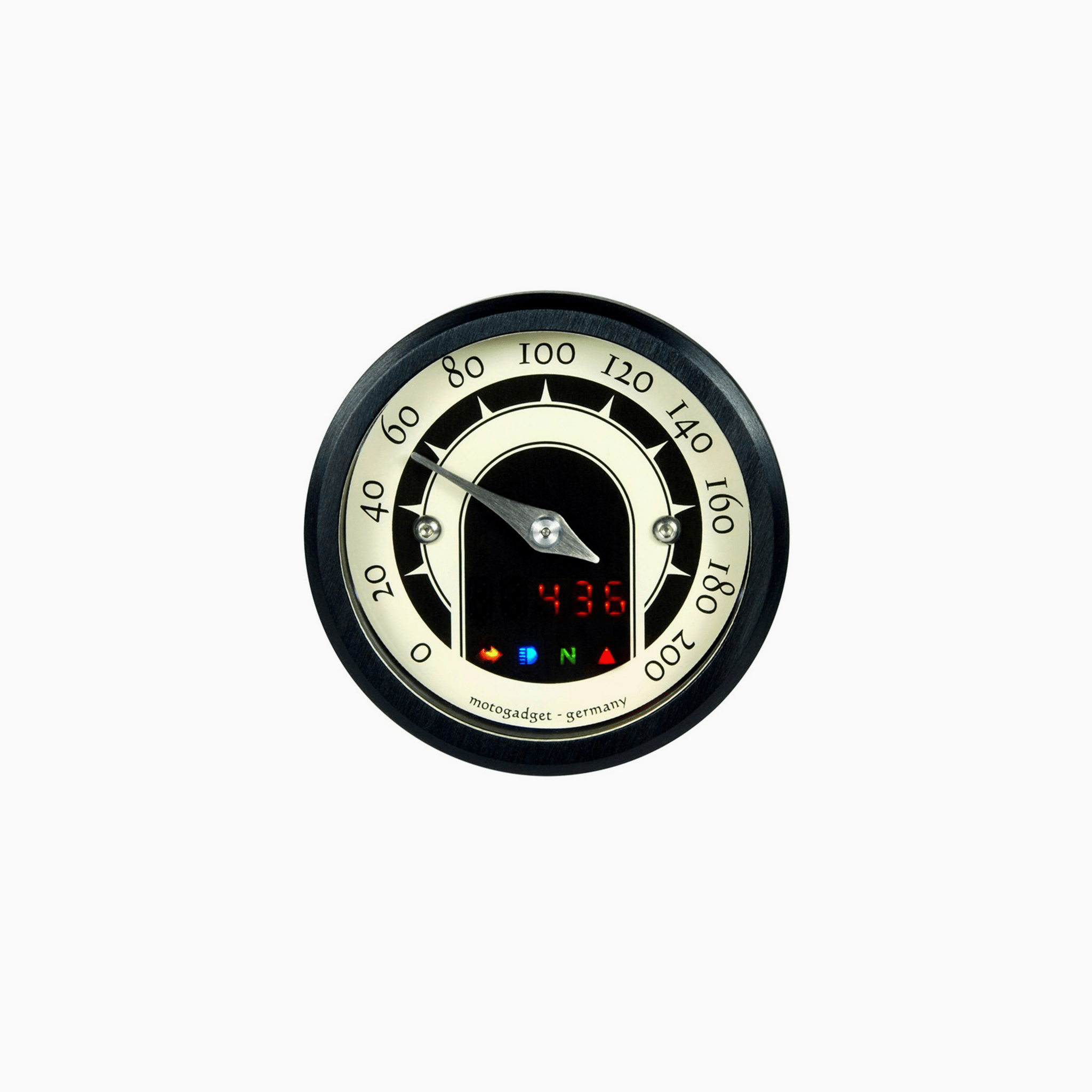

The analog dial in black and white contrast is indirectly illuminated by white LEDs. Hidden behind the black part of the dial is an innovative LED display that only shines through the dial when the watch is in operation and is not visible when it is switched off.

In order to achieve optimum readability in the dark, sun and twilight, the brightness of the LEDs is automatically adjusted. If the 200 km/h on the analog scale is exceeded, the speed is automatically shown on the LED display.
speed is automatically shown on the LED display. The maximum speed is also saved. The 4 indicator lights (blue, red, 2 x green) are integrated into the dial. These also only become visible during operation.

Operation

Use the menu button supplied or, for example, the light horn button on the handlebars to switch between the LED display.

The standard display shows the time. If required, the values for total kilometers, daily kilometers, on-board voltage, etc. can be displayed by briefly pressing the button.

All functions, such as resetting the trip odometer or similar, are easy to operate using the button. Presets or saved values remain stored even without power supply.

Cultivation

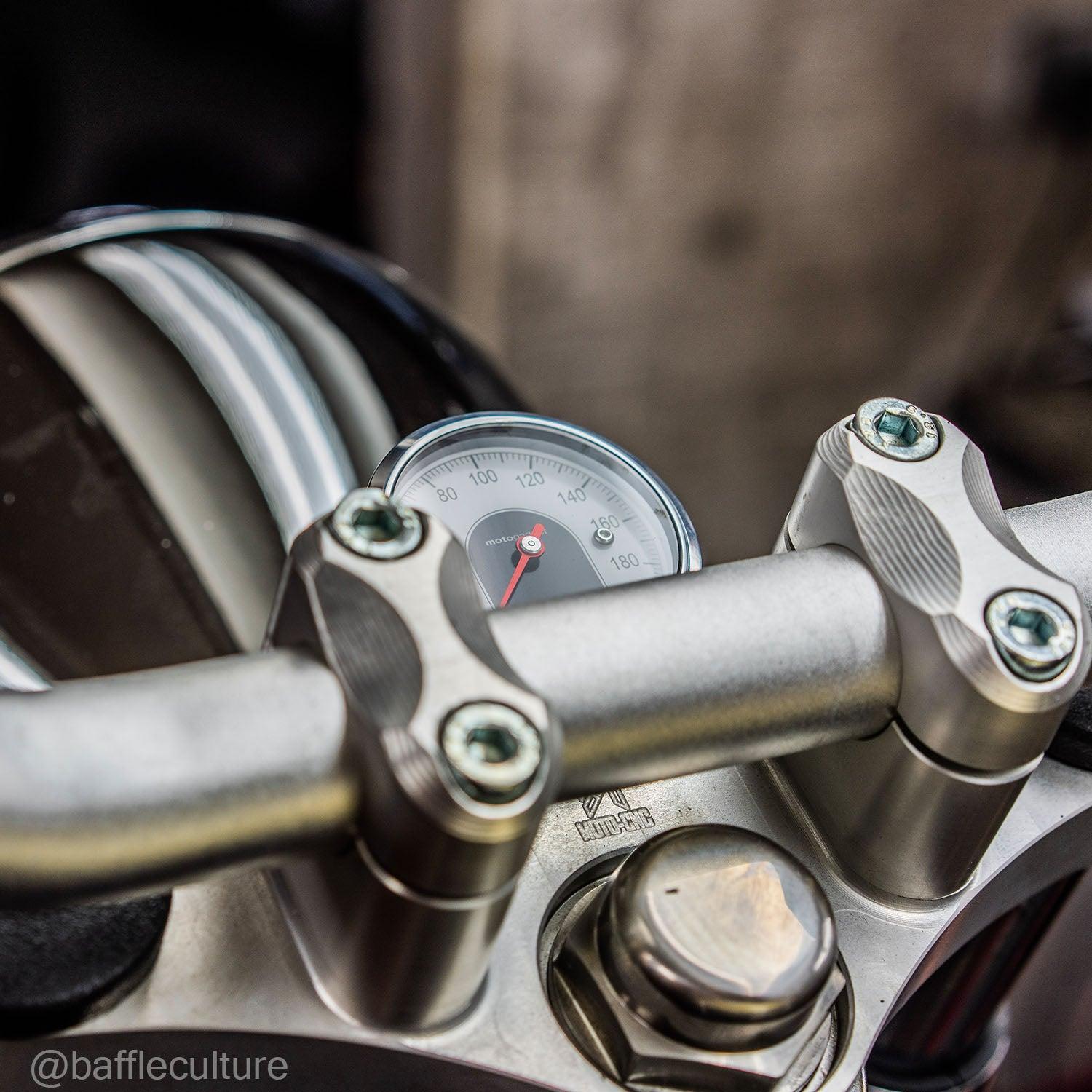

The motoscope tiny is easy to mount using the two M3 threaded bushes on the back. We offer various brackets for mounting.

Connection and sensors

The detailed installation and operating instructions make it possible to connect the instrument even for users who have previously stayed away from vehicle electrics.

The stainless steel speedometer sensor supplied is small (M5/23 mm) and easy to conceal.
concealed. With the 1.5 m long connection cable, it can be easily attached to the front or rear wheel.
front or rear wheel. This means that even vehicles with an original mechanical speedometer drive can be easily converted. The motoscope tiny is compatible with many original speedometer sensors (reed contact and proximity sensors) from vehicle manufacturers. In this case
connections and the mechanical installation of a sensor becomes completely superfluous.

An intelligent 'teach function' makes it easy to calibrate the speedometer - even on vehicles with sensors on the gearbox, such as Harley-Davidson (TM).

• Installation diameter: 49 mm
• Weight: approx. 96 g
• Fastening:2 x M3 threaded bush
• Current consumption during operation: approx. 200 mA (depending on load)
• Current consumption in idle state: 0 mA
• Operating voltage: 9 V - 15 V
• Operating temperature: -20°... +80°C
• Speedometer analog (pointer): 0 - 200 km/h or mph
• Numerical speedometer (LED display): 200 - 999 km/h or mph
• Maximum speed: 0 - 999 km/h or mph
• On-board voltage: 9 - 15 V
• Time: 00:00 - 23:59
• Trip odometer: 0 - 999.9 km or mi
• Total kilometers (adjustable) up to 99 999 km or mi
• Blinker lights Indicator, high beam, neutral, warning light

• Instrument with approx. 75 cm connection cable
• Minitaster
• 2 flying fuses
• 9 Cable end connectors
• Speedometer sensor (M5 x 0.5 fine thread, stainless steel, IP 68) with 150 cm connection cable
• 2 strong neodymium mini magnets
• 2 M3 fastening screws with washer
• 2 diodes for combining the indicators
• QR code for the installation and operating instructions
