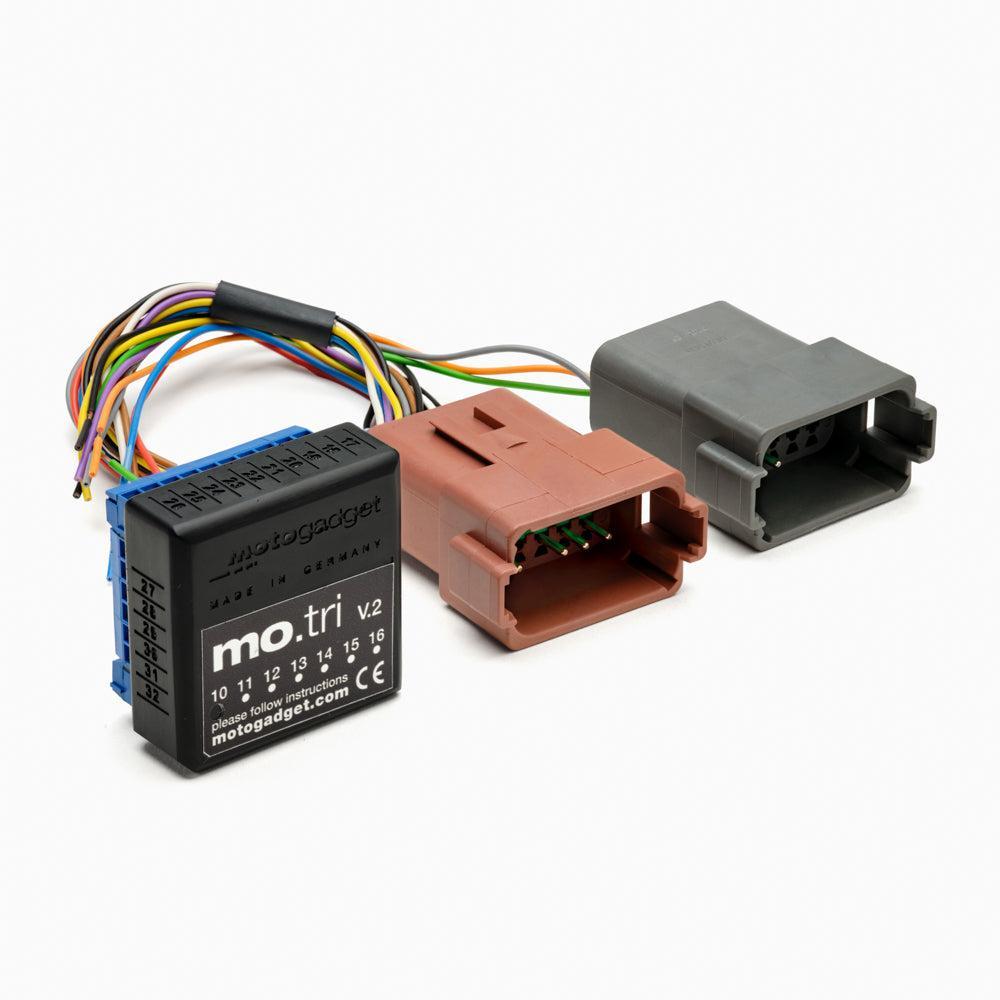

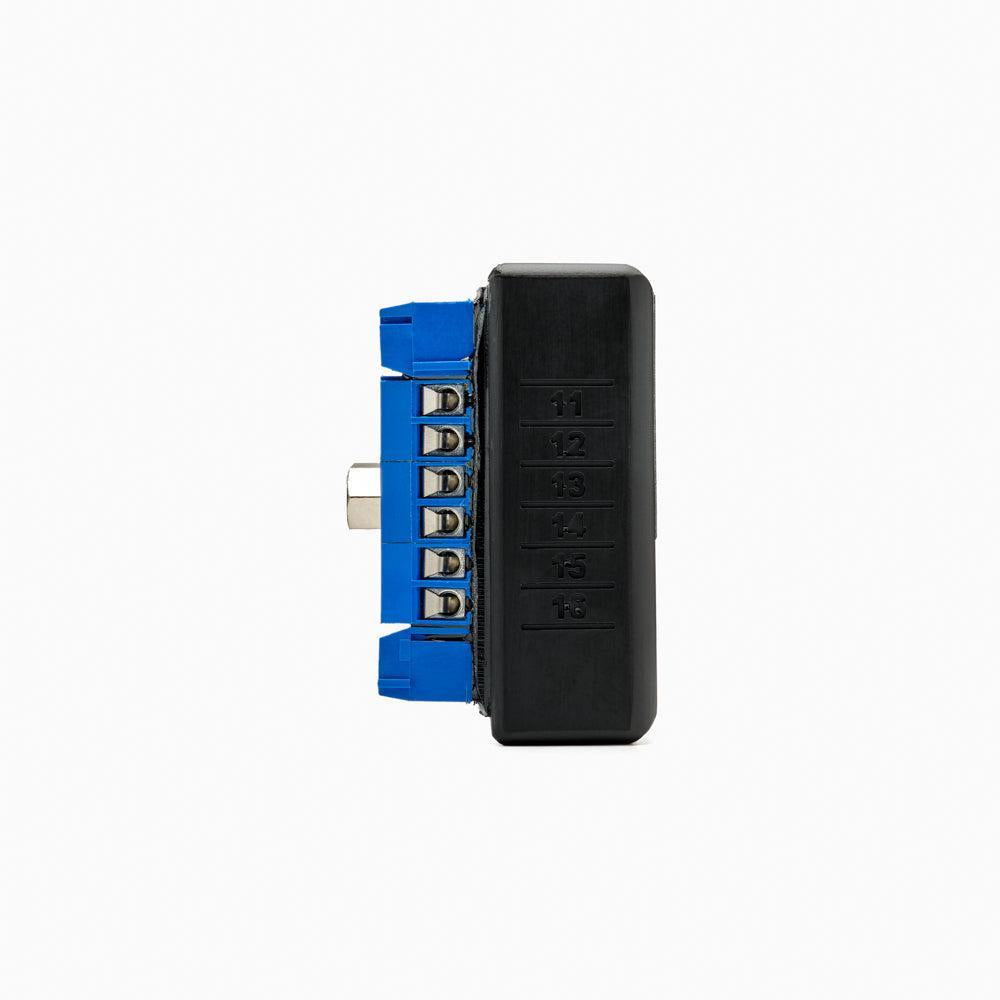

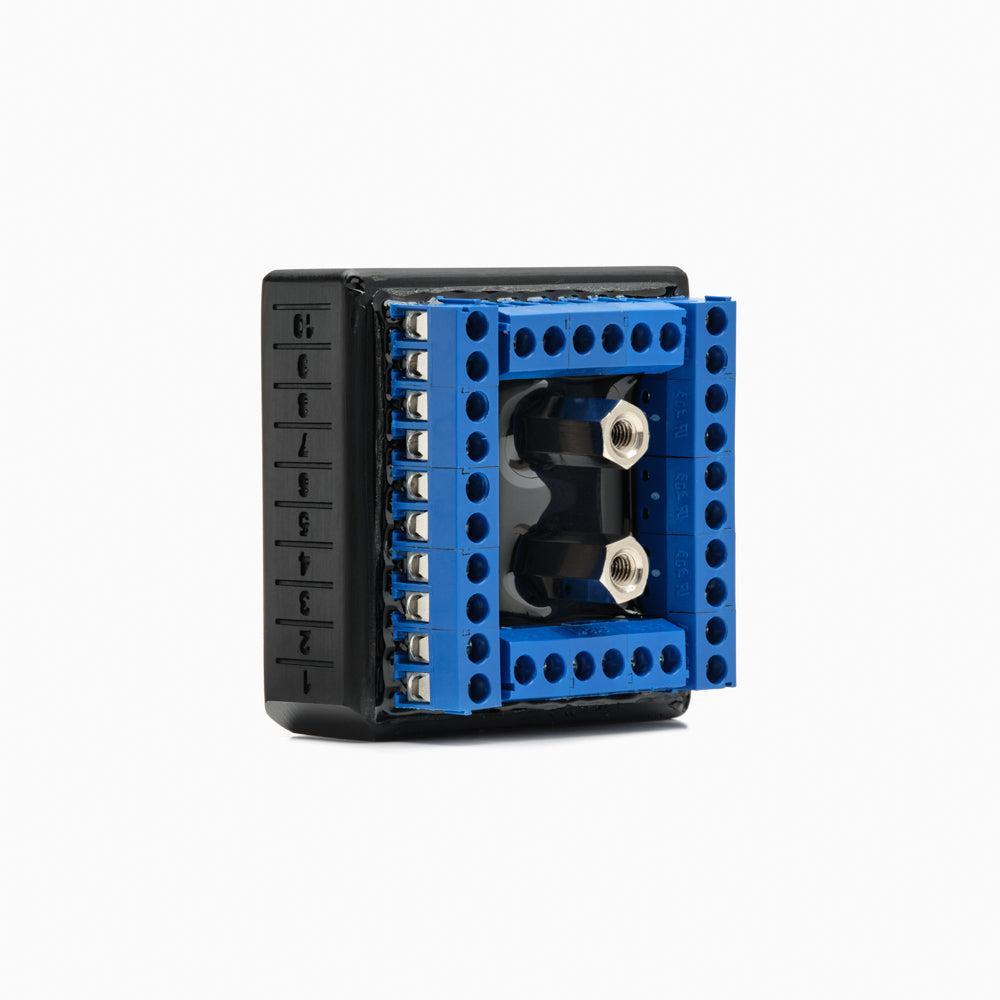

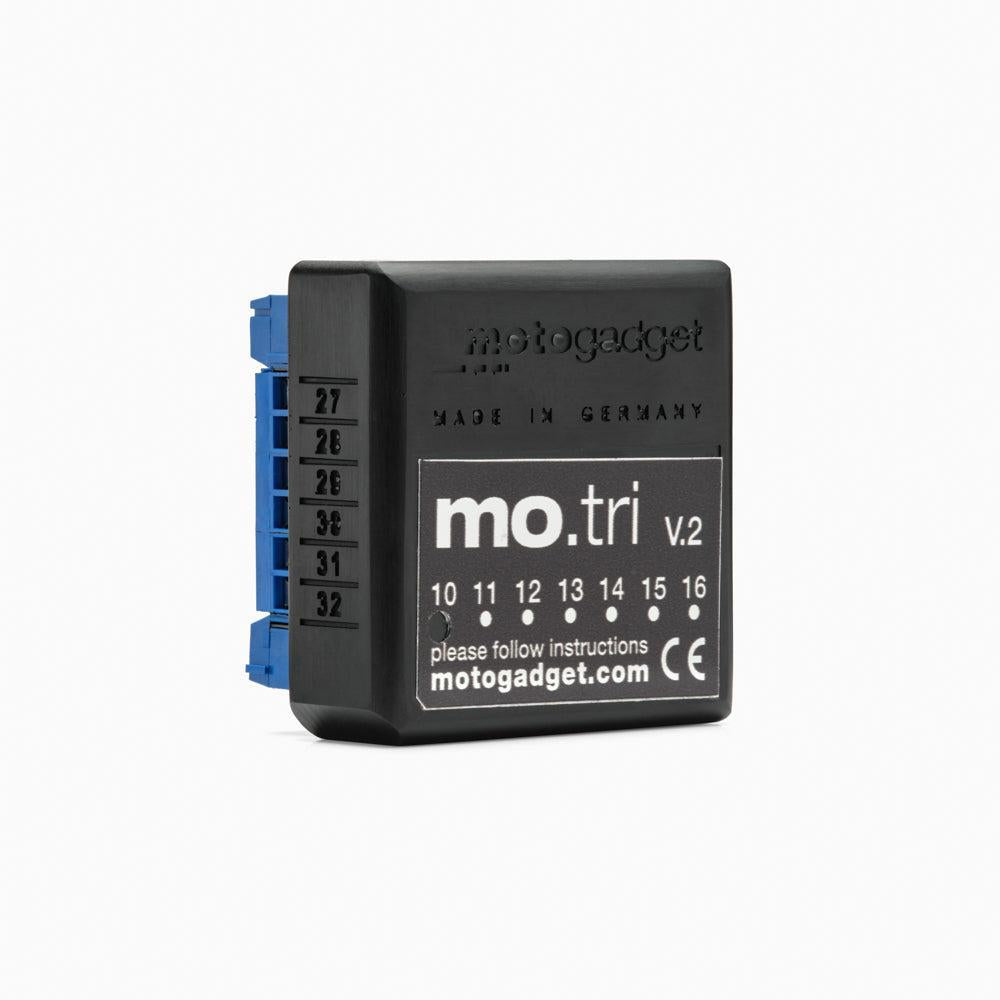

motogadget mo.tri Triumph Adapter

On supported Triumph models, the standard vehicle electronics typically prevent the original instruments from being removed without difficulty. The mo.tri solves this problem and allows for the installation of a compatible motogadget instrument.

In addition to RPM and speed, the adapter also provides signals for the indicator lights, including left and right turn signals, low fuel warning, error messages, high beams, neutral gear, coolant temperature, and oil pressure—provided the vehicle supports these features.

The connection is made using the vehicle's original connector. The remaining connections to the instrument panel and the indicator lights are made according to a clear color-coding system.

Your benefits:

• Allows you to replace the original Triumph instruments
• Compatible with select motogadget instruments
• Easy installation using the vehicle's original connector
• No soldering or cutting of the original wiring harness is required
• Provides speed, RPM, and indicator light signals

Vehicle Compatibility

Suitable for the following supported air-cooled Triumph models:

• Triumph Bonneville T100 / SE
• Triumph Thruxton
• Triumph Scrambler

Supported model years: 2010–2015

Please note: The model year is not necessarily the same as the year of manufacture or the year of initial registration. The model year can be determined by the 11th character of the vehicle identification number (VIN).

Examples:

• A = 2010
• B = 2011
• C = 2012
• D = 2013
• E = 2014
• F = 2015

Length/ width/ height 42 mm/ 42 mm/ 27 mm

• Instrument with approx. 55 cm connection cable
• Connectors suitable for the selected model
• Cable end sleeves
• 2 x M3 screws
• Cable holder
• Cable ties
