motoscope mini

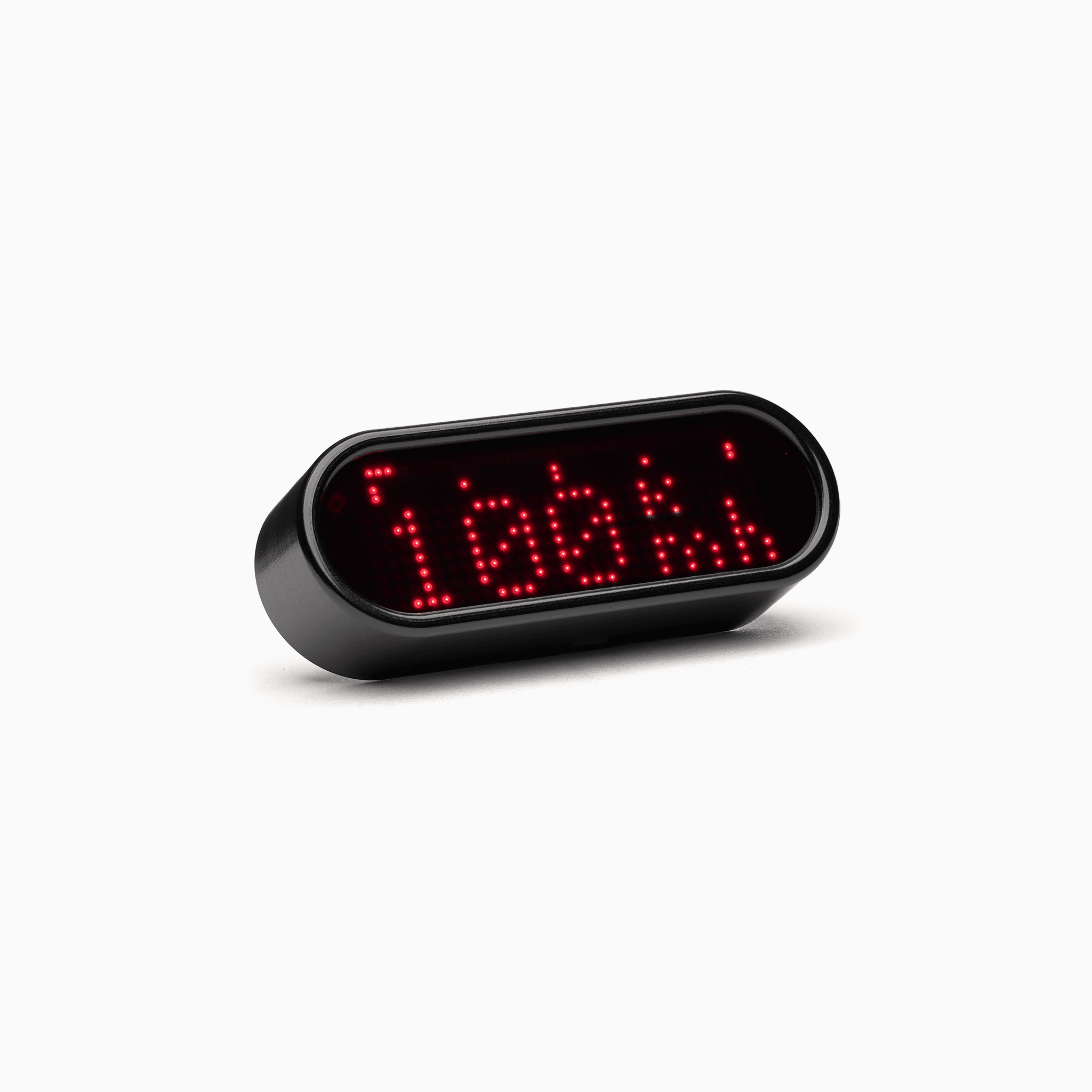

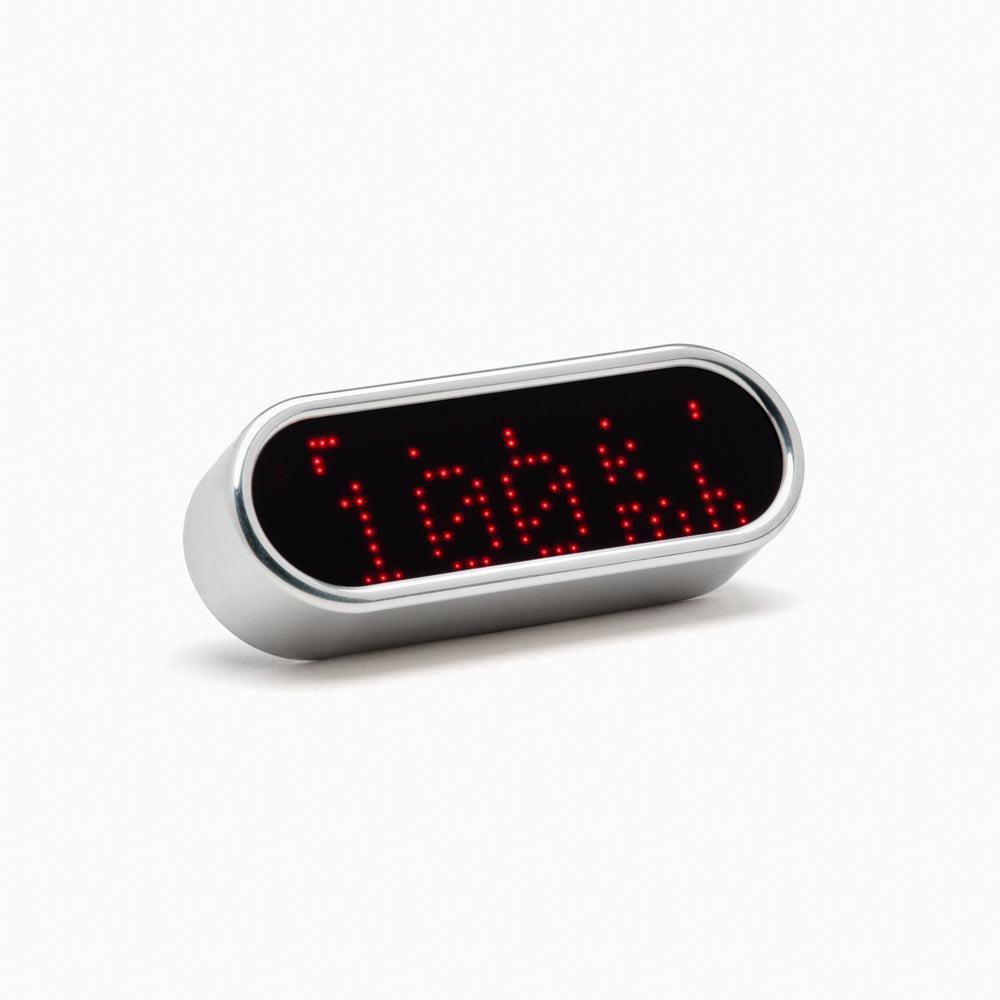

Housing

The high-quality aluminum housing is milled from the solid
and its surface is anodized black. The electronics are completely
encapsulated in the housing and thus protected against weather, water, dust and vibration.

Display and functions

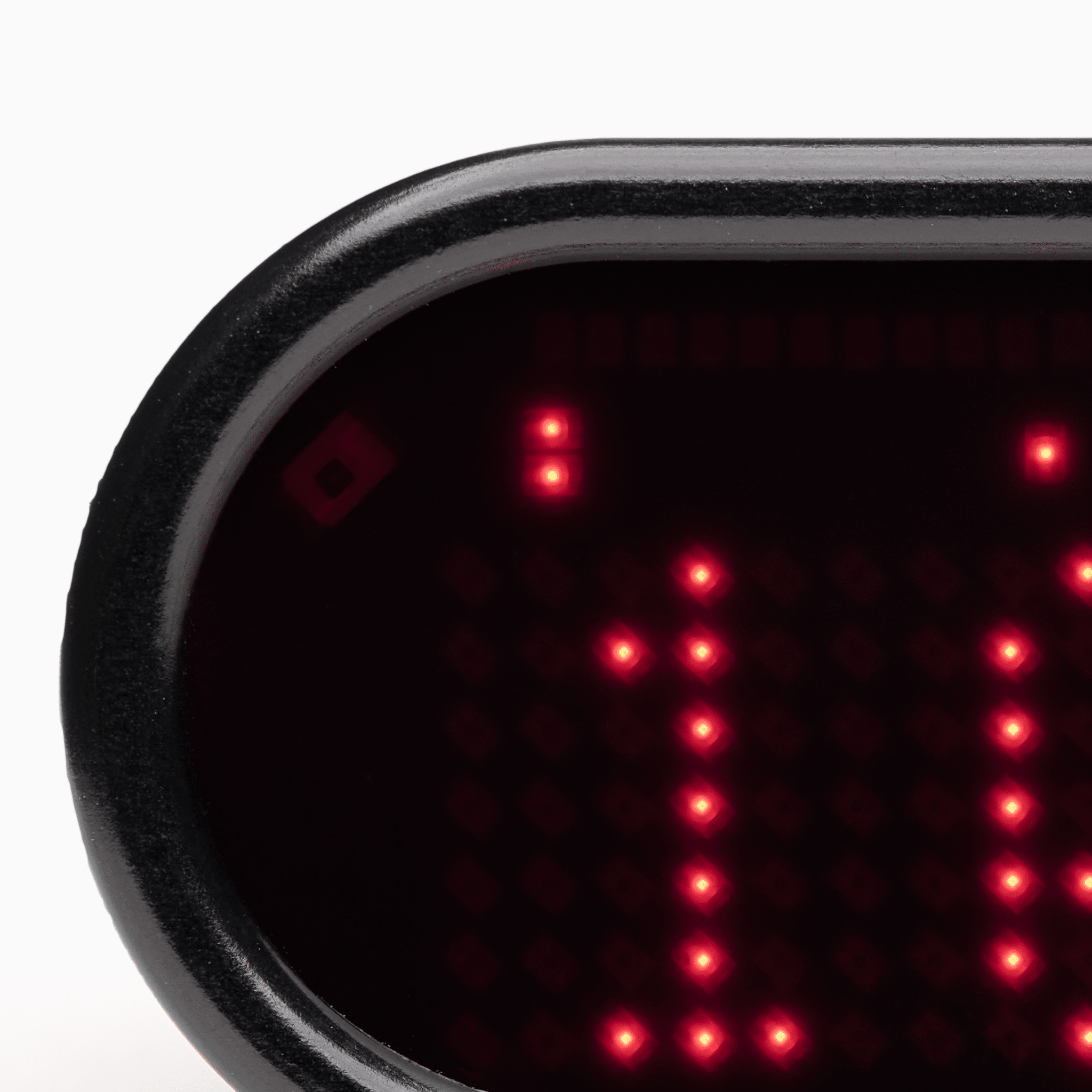

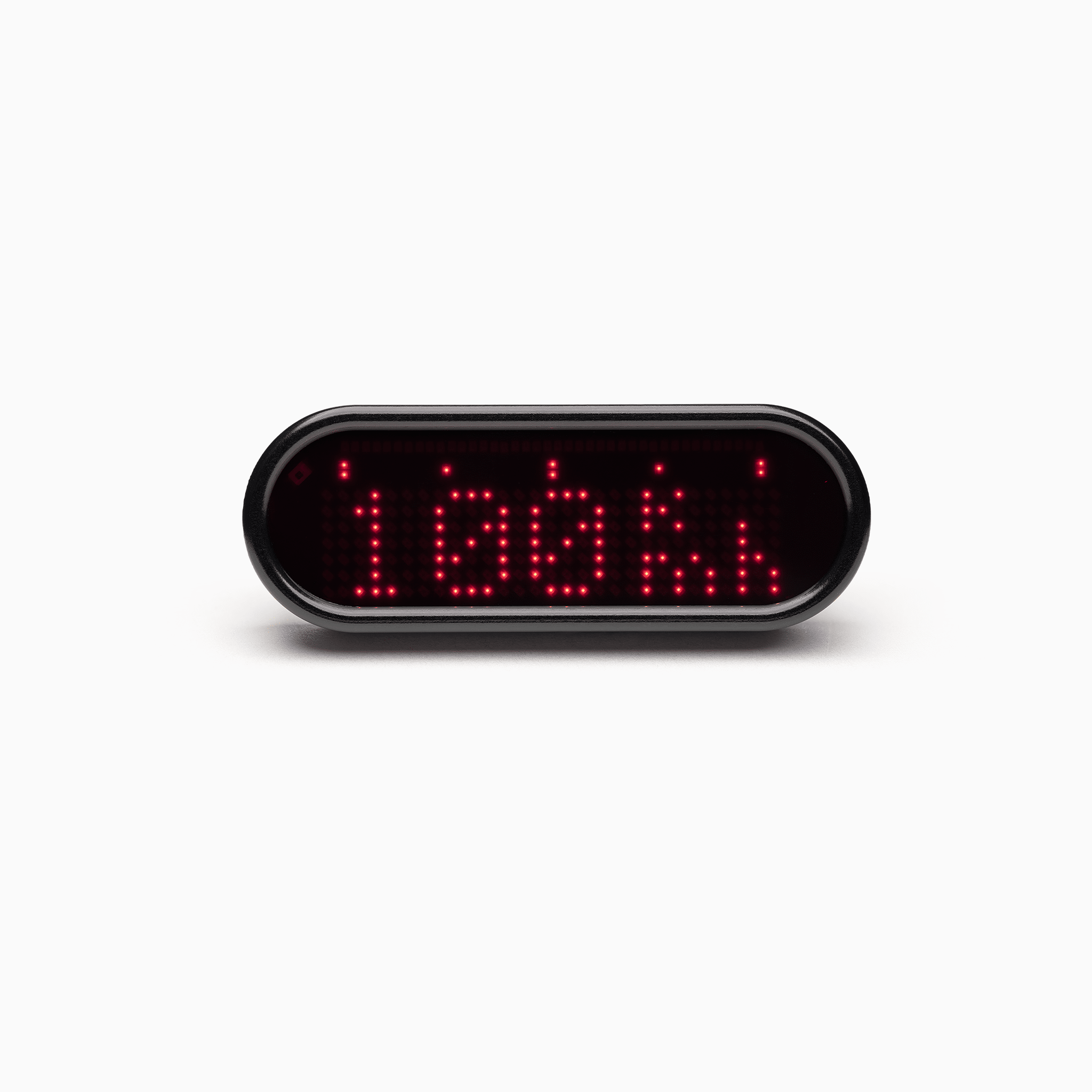

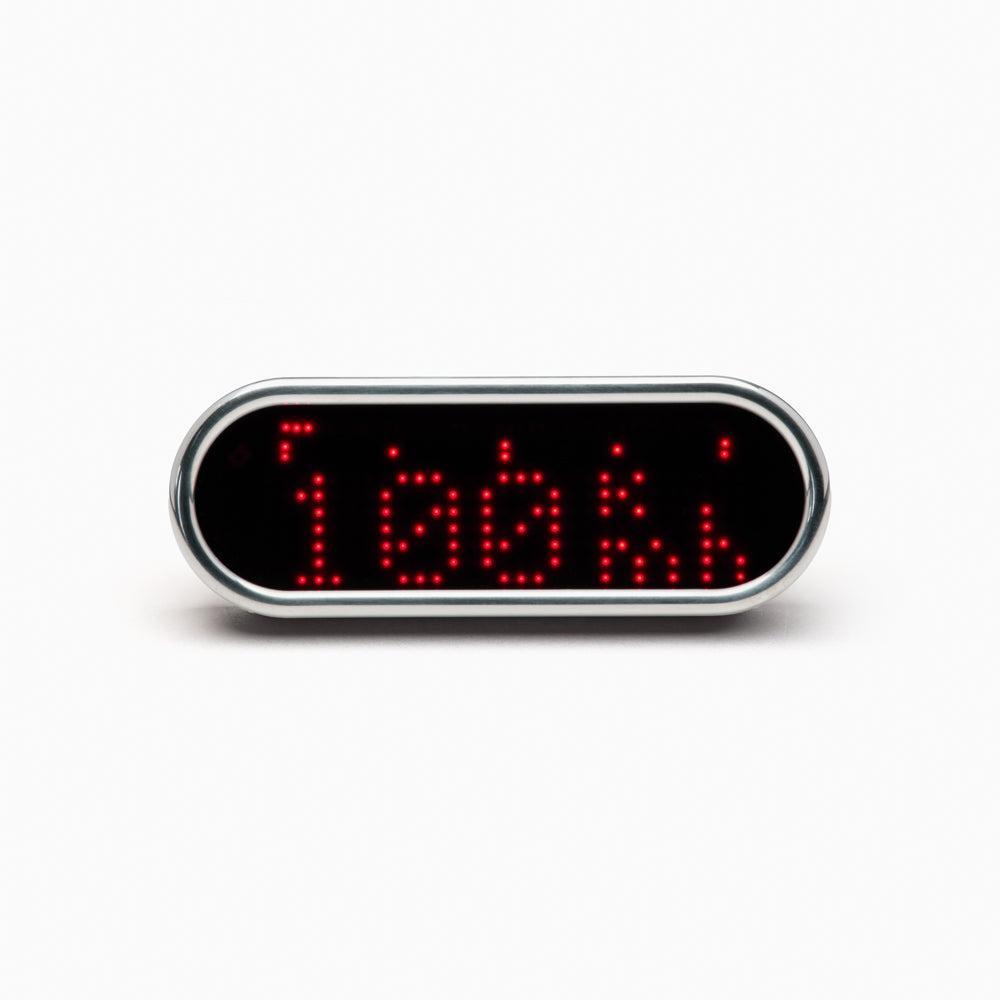

The innovative dot matrix of 251 ultra-bright LEDs
displays the speed by means of a scalable, horizontal light band and all other
other functions as a numerical value. The speed can be called up as a
numerical value at the touch of a button. To achieve optimum readability in darkness, sunlight and twilight
and twilight, the brightness of the LEDs is automatically adjusted.
automatically adjusted. A speed value can be entered for the limit range of the permissible speed ('red range') or
a speed value can be entered as a switching flash function.
If this value is exceeded, all LEDs light up simultaneously in pulsating mode.

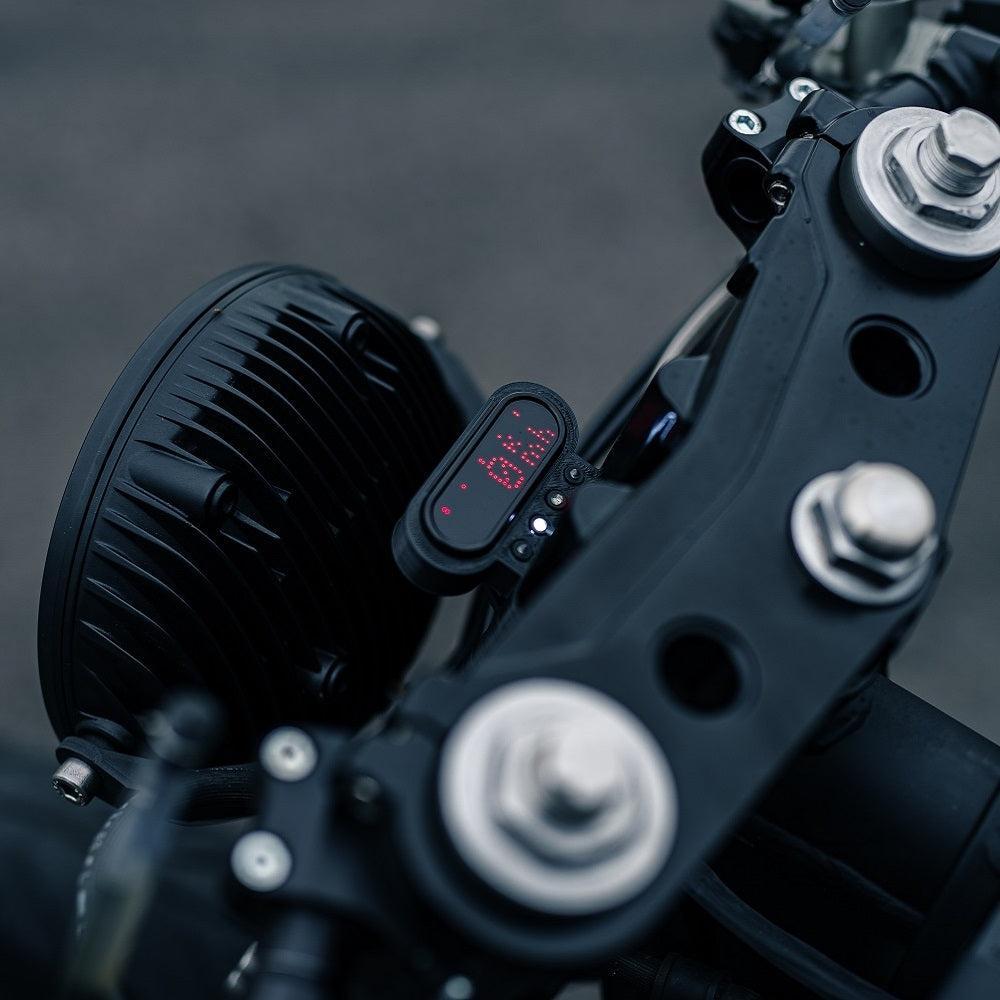

Special feature: the display of the motoscope mini can show the numerical values not only from
left to right, but also from top to bottom. Therefore the
instrument can also be mounted upright!

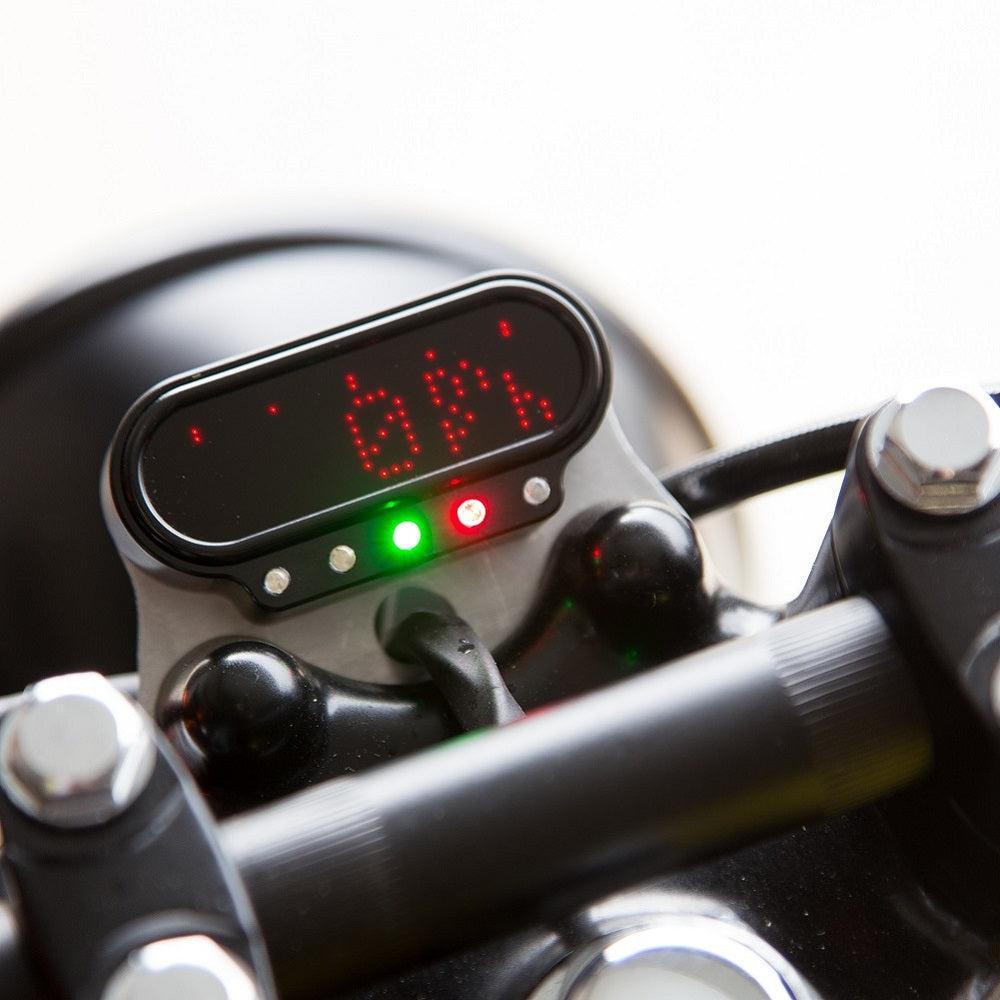

Operation

Use the menu button supplied or, for example, the
button on the handlebars to switch between the displays. The
standard indication on the display is the speed value. The other
values can be shown on the display by briefly pressing a button.
on the display. Optionally, you can set the display to automatically return to the speed value after a short
automatically returns to the speed value after a short time or that a specific
specific display is permanently set. Default settings or stored values are of course saved even without a power supply.

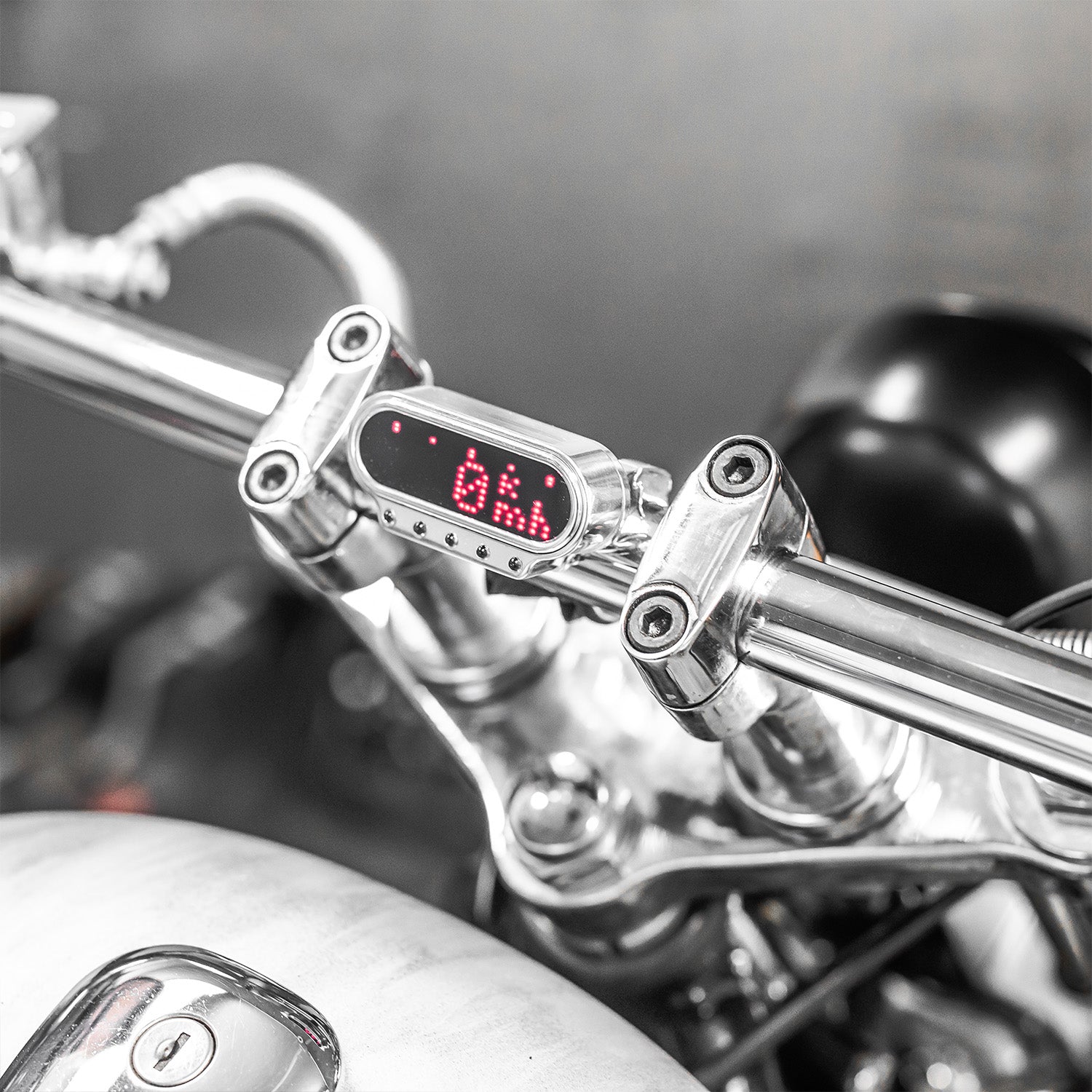

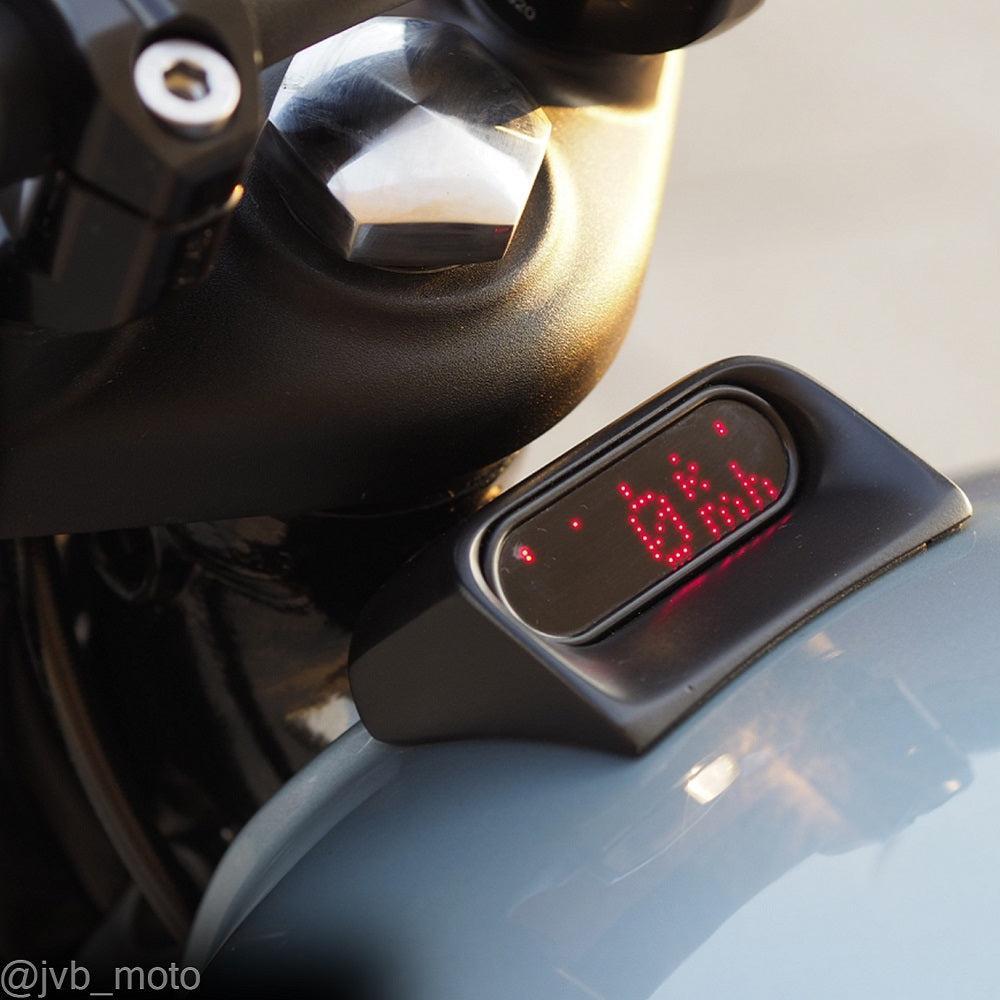

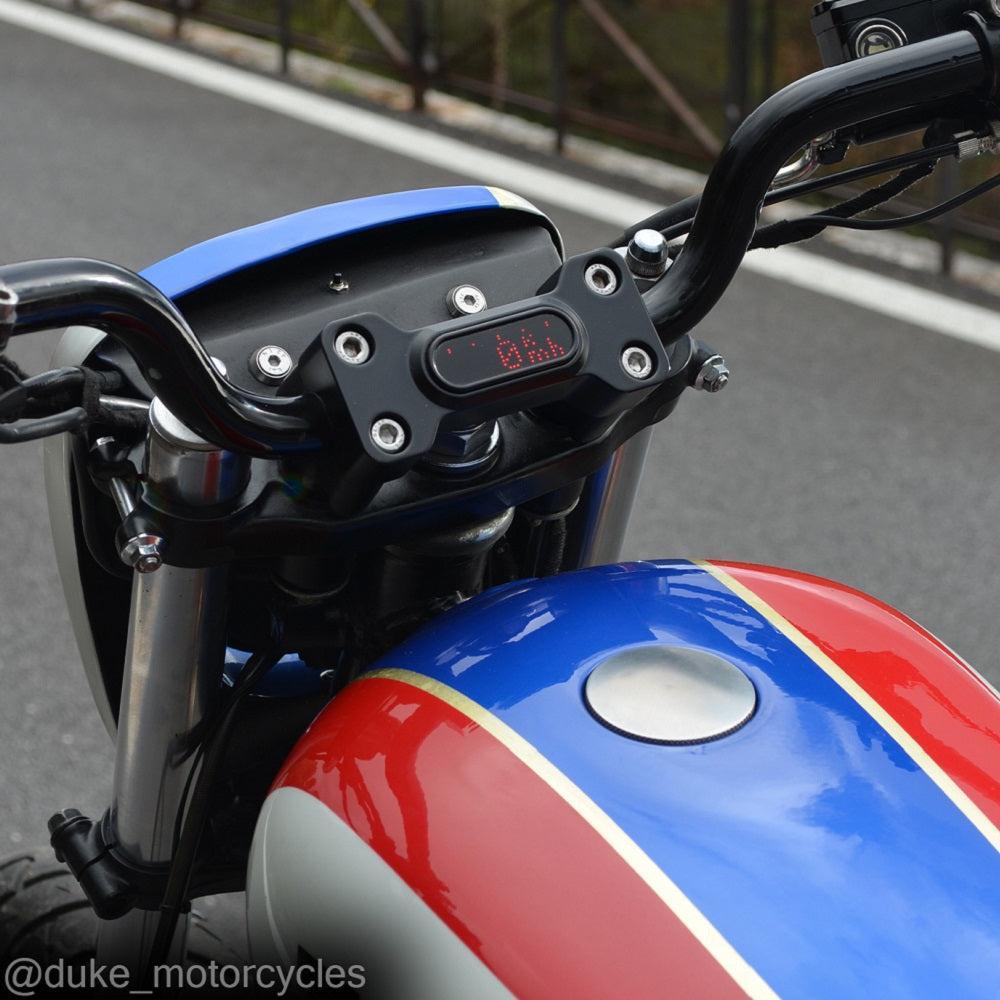

Assembly

Thanks to its very small dimensions, the motoscope
mini can be easily attached to almost any vehicle. Stand-alone on the
fork bridge or on the handlebars, in existing instrument panels or recessed
in the tank or GRP - the instrument can be integrated anywhere. We offer
various suitable universal brackets for mounting as well as
type-specific solutions.

Connection and sensors

The simple wiring makes it possible to connect the
instrument even for users who have never dealt with vehicle electrics before.
before.

The stainless steel speedometer sensor supplied is very small (M5/25 mm). With the
1.5 m long connection cable, it can be easily attached to the front or rear wheel.
wheel. Even vehicles with an original mechanical speedometer drive can be
easily converted.

The motoscope mini is compatible with many original speedometer sensors (reed contact and
proximity sensors) from vehicle manufacturers. In this case, only the
connections are connected and the mechanical installation of a sensor becomes
superfluous.

An intelligent 'teach function' makes it easy to calibrate the speedometer
speedometer - even for vehicles with sensors on the gearbox.

• Length/width/depth: 59 mm/21.5 mm/13 mm
• Weight: approx. 32 g
• Fastening: 2 x M3 threaded bush
• Current consumption during operation: approx. 100 mA
• Current consumption in idle state: 0 mA
• Operating voltage: 7 V - 18 V
• Operating temperature: -20°... +80°C
• Rev counter (LED bar): 6/ 8/ 10/ 14/ 16 krpm
• Rev counter (numerical): 0 - 20 krpm
• Limit range setting/shift flash: 0 - 20,000 rpm
• Speedometer: 0 - 999 km/h or mph
• Trip odometer: 0 - 999.99 km or mi
• Total kilometers (adjustable): up to 99 999 km or mi
• Travel time display: 0 - 99:59 h/min

• Instrument with approx. 55 cm connection cable
• Complete plug connection
• Fuse
• Speedometer sensor with 150 cm connection cable
• 2 x magnet
• Mini push-button
• 3x VA screws M4
• QR code for the installation and operating instructions
