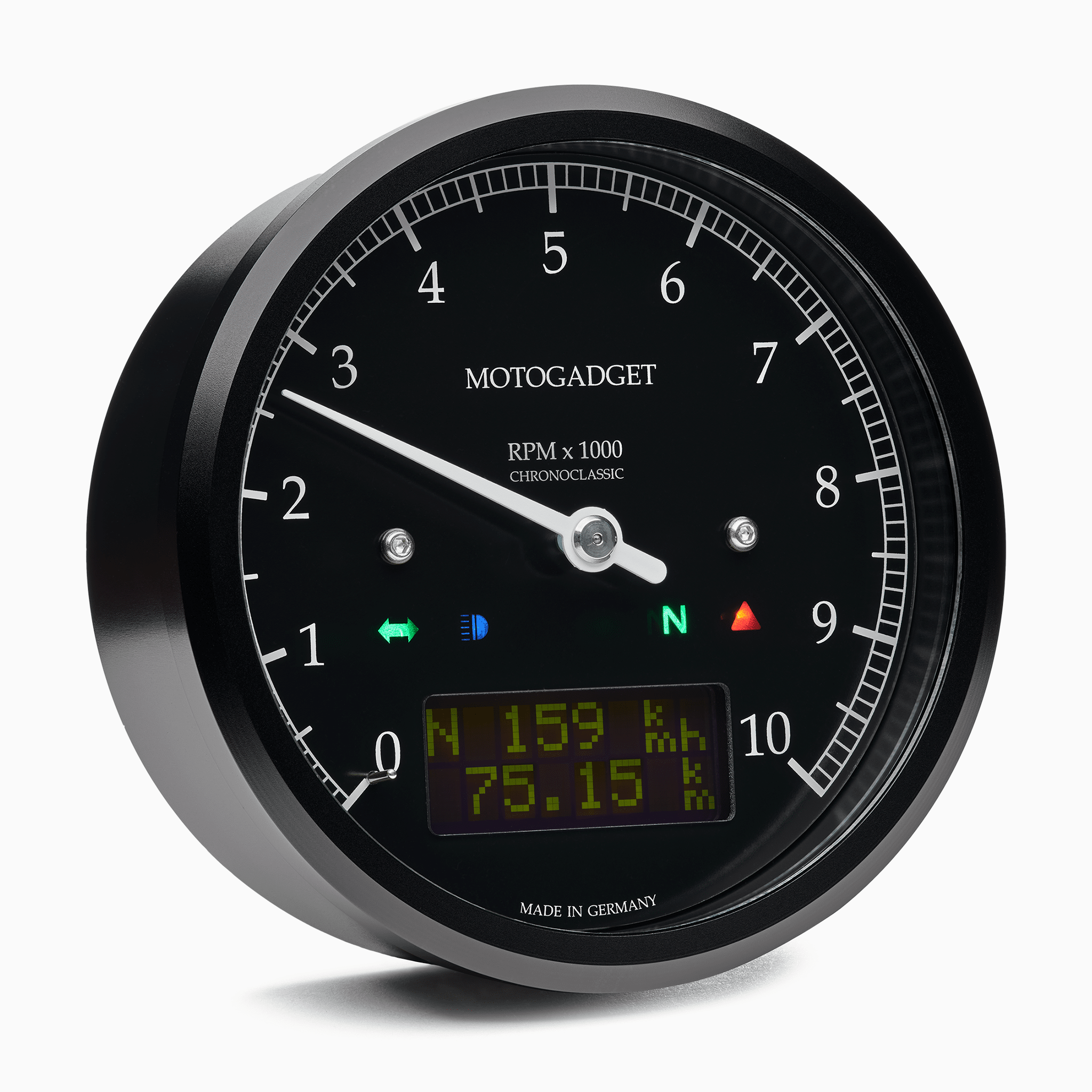

motogadget motoscope chronoclassic

Housing

The high-quality aluminum housing is turned and milled from solid material on CNC machines. The surface is brushed and anodized in black or natural aluminium. The housing has a vent valve with Gore membrane, which prevents fogging. The viewing window of the instrument
is made of a scratch-resistant special plastic. Due to the widely
80 mm, original instruments can often be replaced very easily.
replaced.

Analog display with pointer and LC display

The speed is easy to read with the red pointer on the white
dial for optimum readability. The innovative, full-surface backlighting
backlighting, the maximum surface area is used for the dial.

When the instrument is switched off, no symbols are visible. Freely
adjustable transmission ratios and the pointer damping enable precise and
precise and jitter-free speed indication by the stepper motor. The LC display
is very easy to read and illuminated, even in direct sunlight.

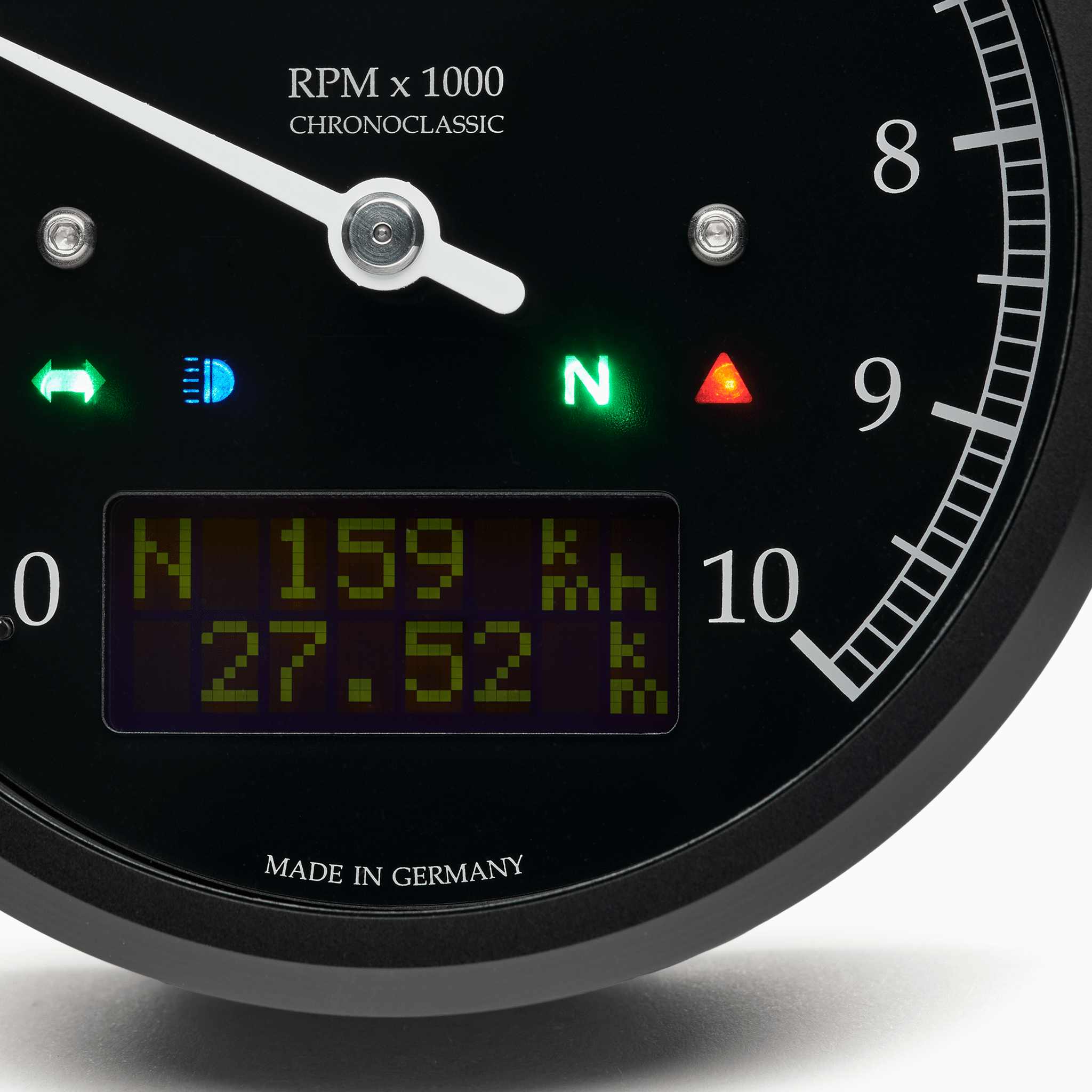

Four ultra-bright control LEDs complete the instrument. The
red LED acts as a warning light when the set speed limits are reached,
temperatures (min./max.), pressure measurement (min./max.), on-board voltage and for the oil pressure switch or similar existing sensors. Different warning functions are indicated by different flashing or continuous lights.

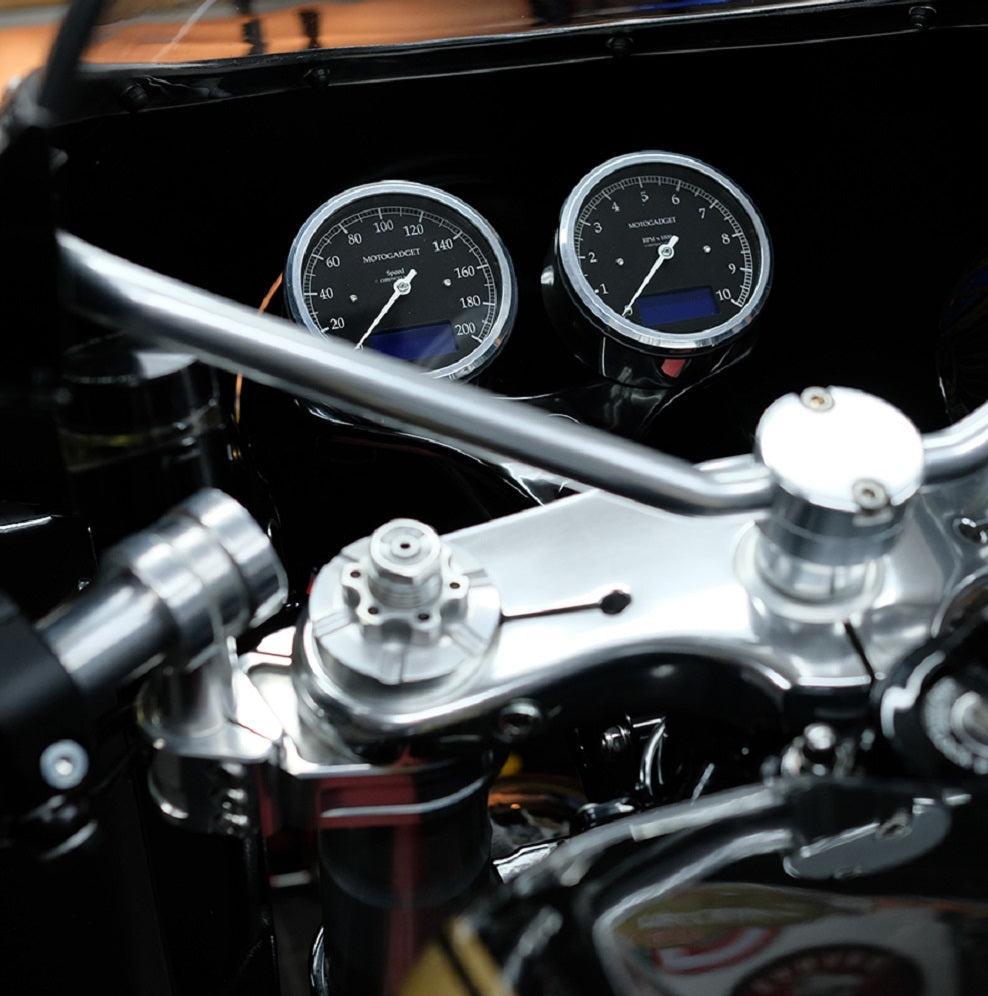

Cultivation

Thanks to the standard installation diameter, the
instrument is easy to fit to many vehicles. We also offer
various optional mounting options. See under mounting.

Connection and sensors

The connection cable has a length of approx. 55 cm and the
connectors are pre-installed. For the vehicle side, the corresponding
corresponding counterparts are supplied. The input for the speed measurement
is simply connected to the ignition coil or ignition box. The included
speedometer sensor made of stainless steel is small (M5/22 mm) and can be easily attached to the front or rear wheel with the 1.5 m
connection cable to the front or rear wheel. Suitable sensors for the optional measurement of air, oil or water
water temperature and oil pressure are available from us as accessories
(see accessories).

Operation

A menu button or, for example, the light horn button on the handlebars
switch between the LCD displays. The first line permanently
permanently displays the speed. If required, further measured values can be
the display by pressing a button. Settings or saved values
values are retained and saved even without a power supply.

• Installation diameter: 80 mm
• Overall diameter (screw ring): 85 mm
• Housing depth without cable gland: 34 mm
• Weight: approx. 230 g
• Fastening: 3 x M4 threaded bush
• Current consumption during operation: 200 mA
• Current consumption in idle state: 0 mA
• Operating voltage: 9 V - 18 V
• Operating temperature: -20°C to +80°C

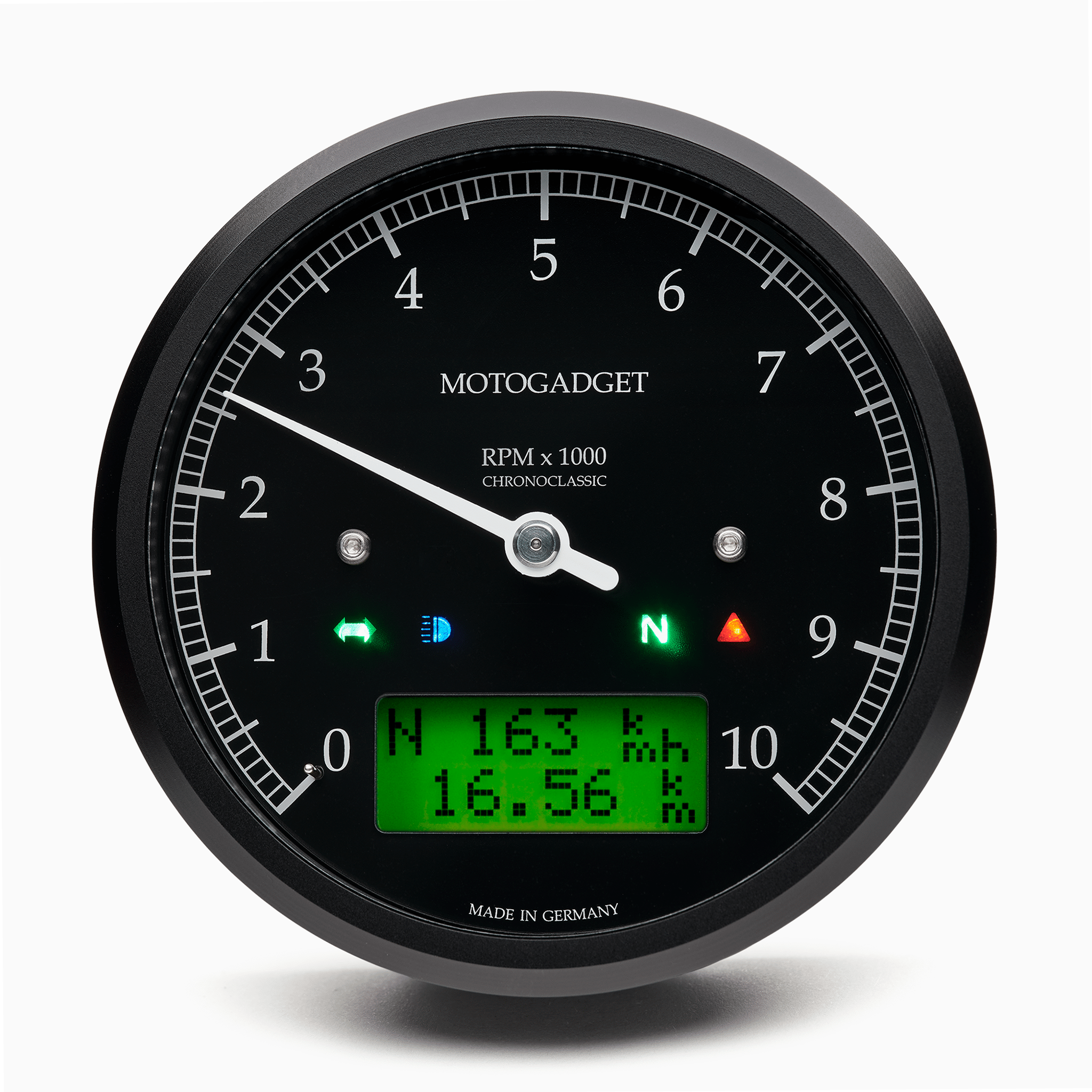

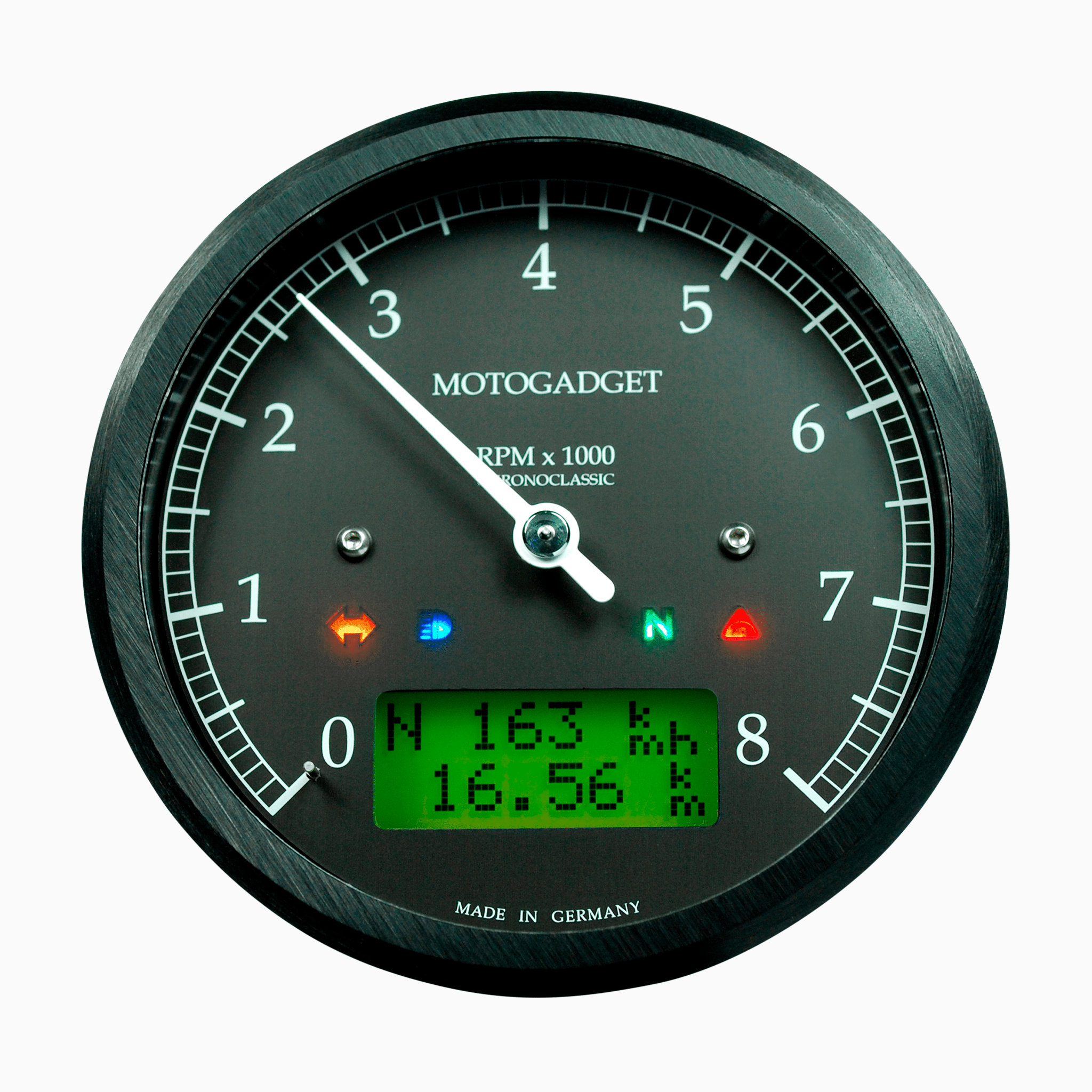

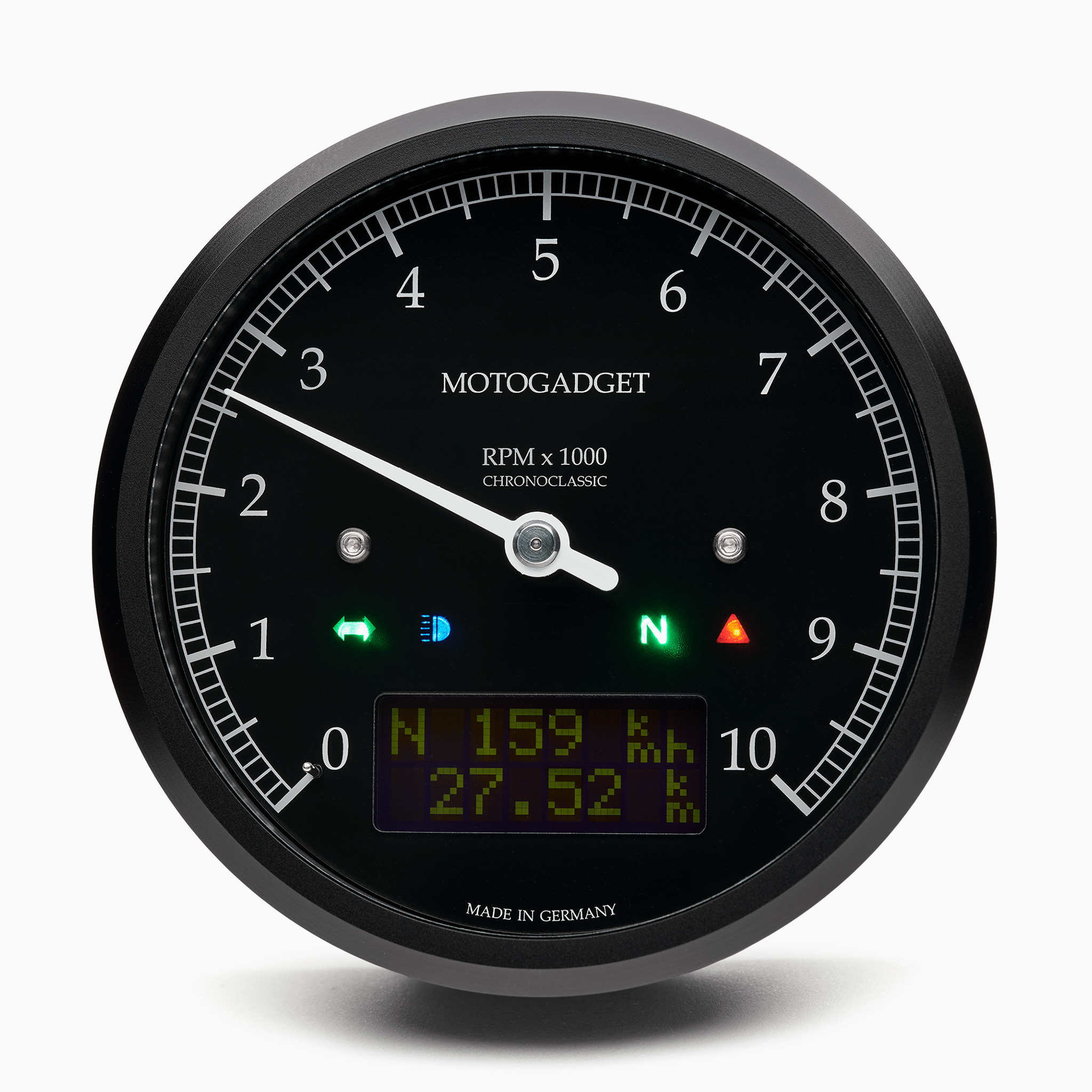

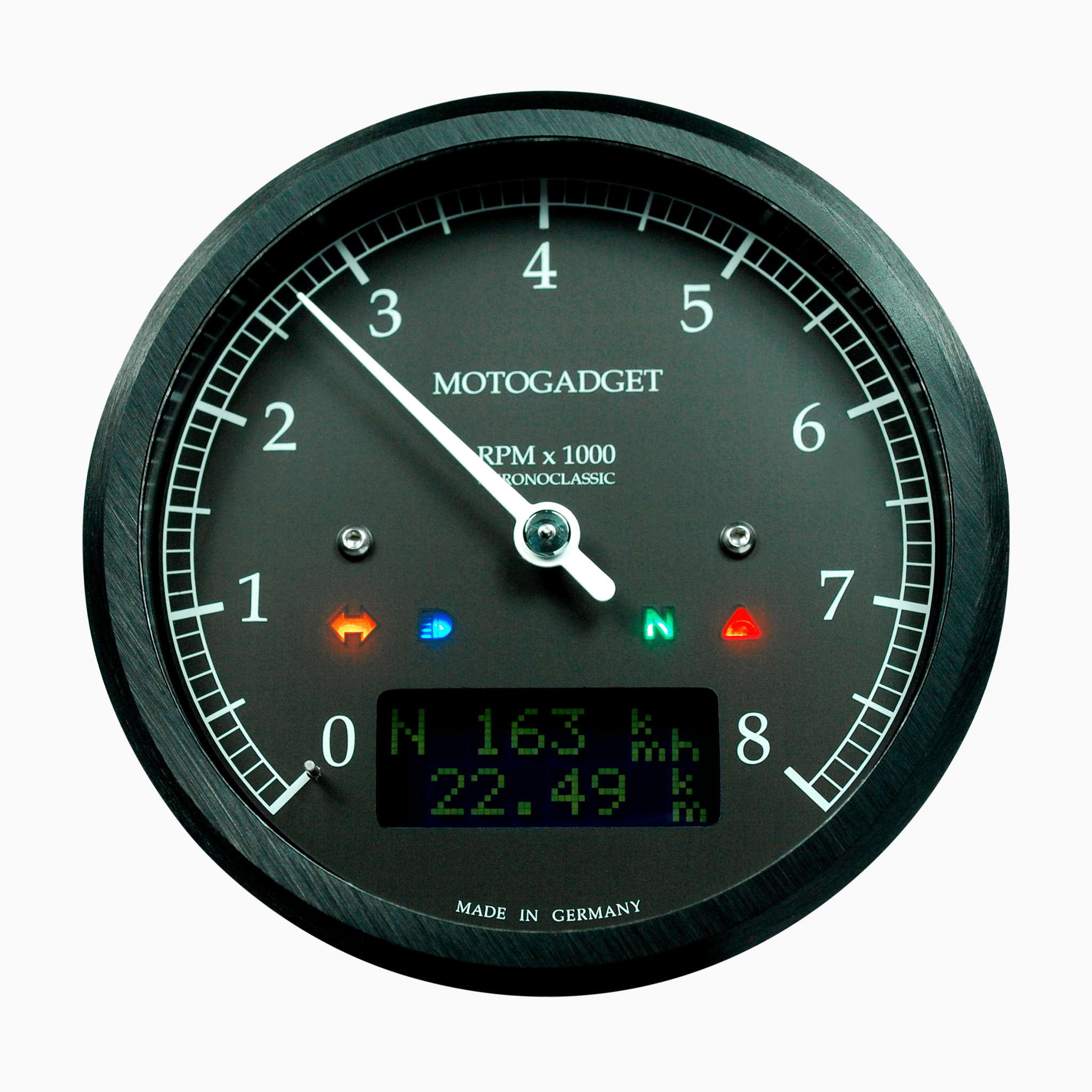

• Rev counter (analog/pointer): 0 - 8, 10, 14 krpm
• Speedometer (LCD): 0 - 350 km/h or mph
• Trip odometer up to 999 km or mi
• Total kilometers (adjustable) up to 250,000 km or mi
• Travel time display: 0 - 99:99:99 h/min/s
• Rev counter (on LCD): 0 - 20,000 rpm
• Adjustable speed warning (int. LED and ext. switching flash): 0 - 20,000 rpm
• On-board voltage display: 9 V - 18 V
• NEW! Low voltage warning LED flashes when on-board voltage falls below approx. 11V, replaces charging indicator lamp
• Air temperature* (optional instead of water temp.): -20 - 80 °C / -4 - 17°F with high/low warning
• Water temperature* (optional instead of air temperature): 40 - 120 °C / 104 - 24°F with high/low warning
• Oil temperature*: 40 - 160 °C / 104 - 320 °F with high/low warning
• Oil pressure*: 0.5 - 8 bar / 8 - 116 psi with high/low warning
• Time measurement: 0 - 100 km/h or 0 - 60 mph 0.0 - 99.9 sec.
• instantaneous acceleration: (-20.0) - 20.0 m/s2
• Average speed: 0 - 350 km/h o. mph
• Maximum speed value: 0 - 350 km/h o. mph
• Maximum speed value: 0 - 20,000 rpm
• Max. positive acceleration: 0 - 20.0 m/s2
• Max. negative acceleration: 0 - (- 20.0) m/s2
• Gear indicator: N, gear 1 - 6
• Green control LED: Idle (N)
• Yellow indicator LED: Left, right blinker
• Blue control LED: High beam
• Red control LED: for various external warning functions (e.g. oil pressure switch
  oil pressure switch), internal (speed, temperature, pressure, voltage)
• Output for external switching flash lamp, switching capacity max. 1.4 A

• Instrument with 55 cm connection cable & plug connection
• Cable fuse
• Speedometer sensor with 150 cm connection cable & two magnets
• Mini push-button
• Stainless steel fastening screws
• QR code for installation and operating instructions

Please order temperature and pressure sensors separately under accessories.
