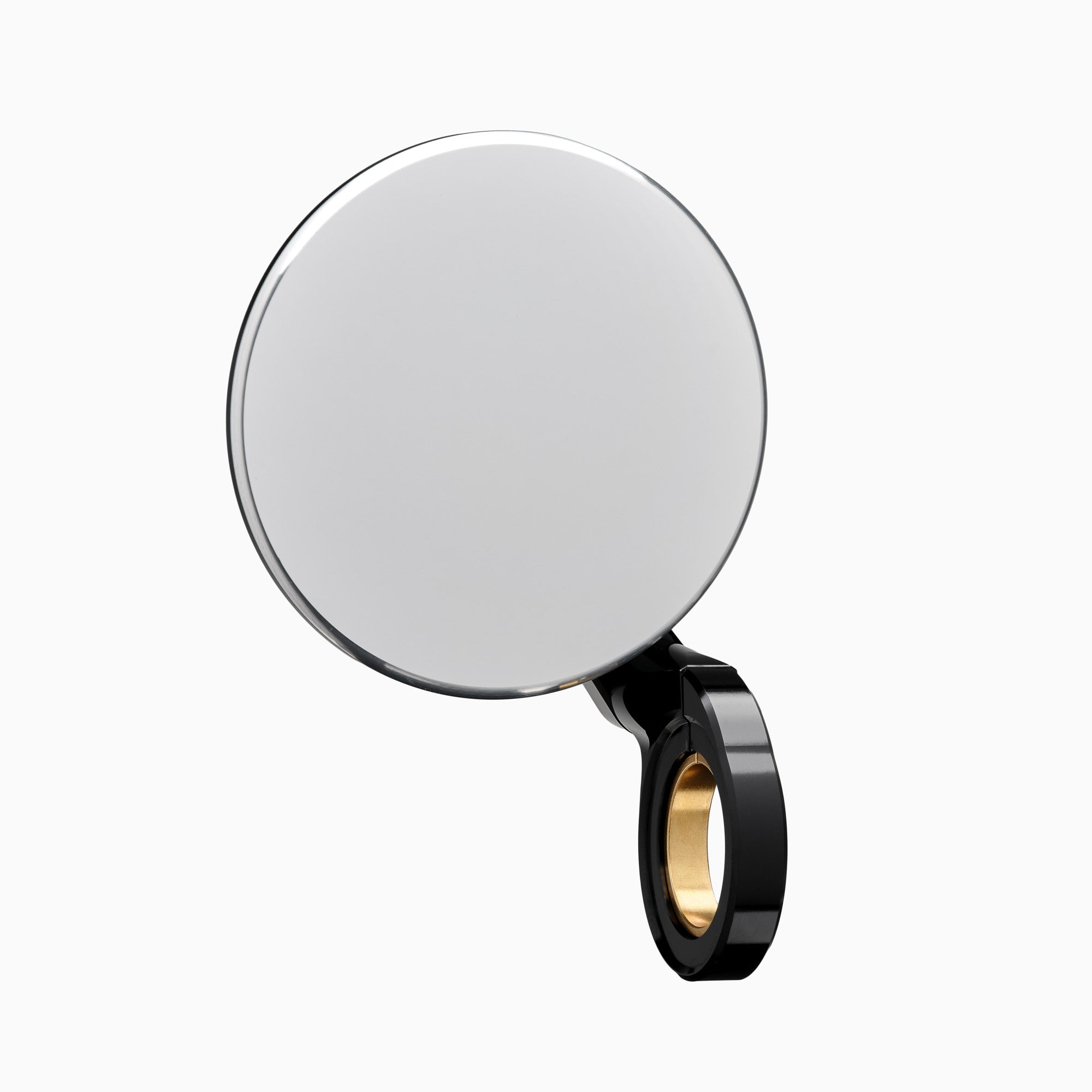

mo.view spy 50 flip

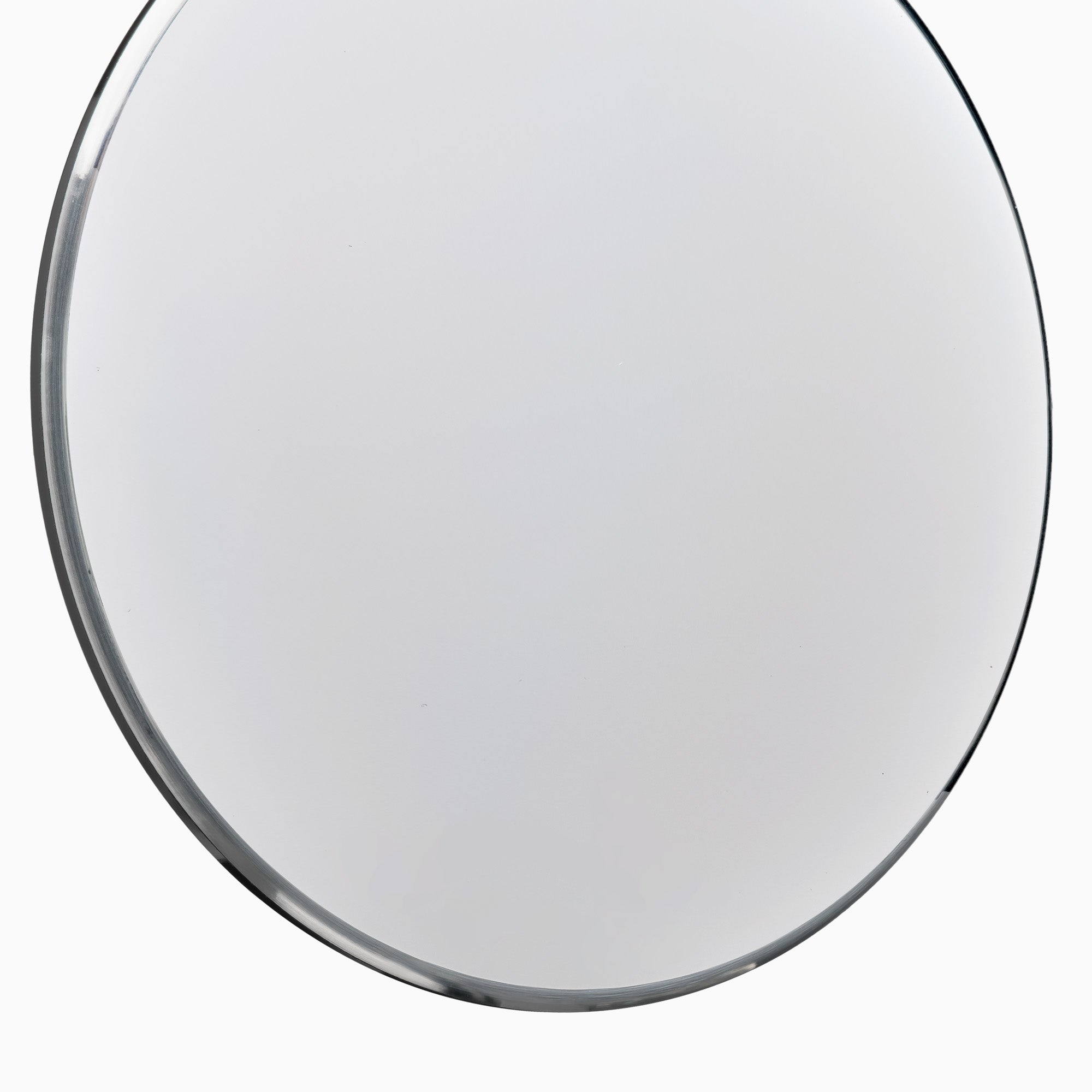

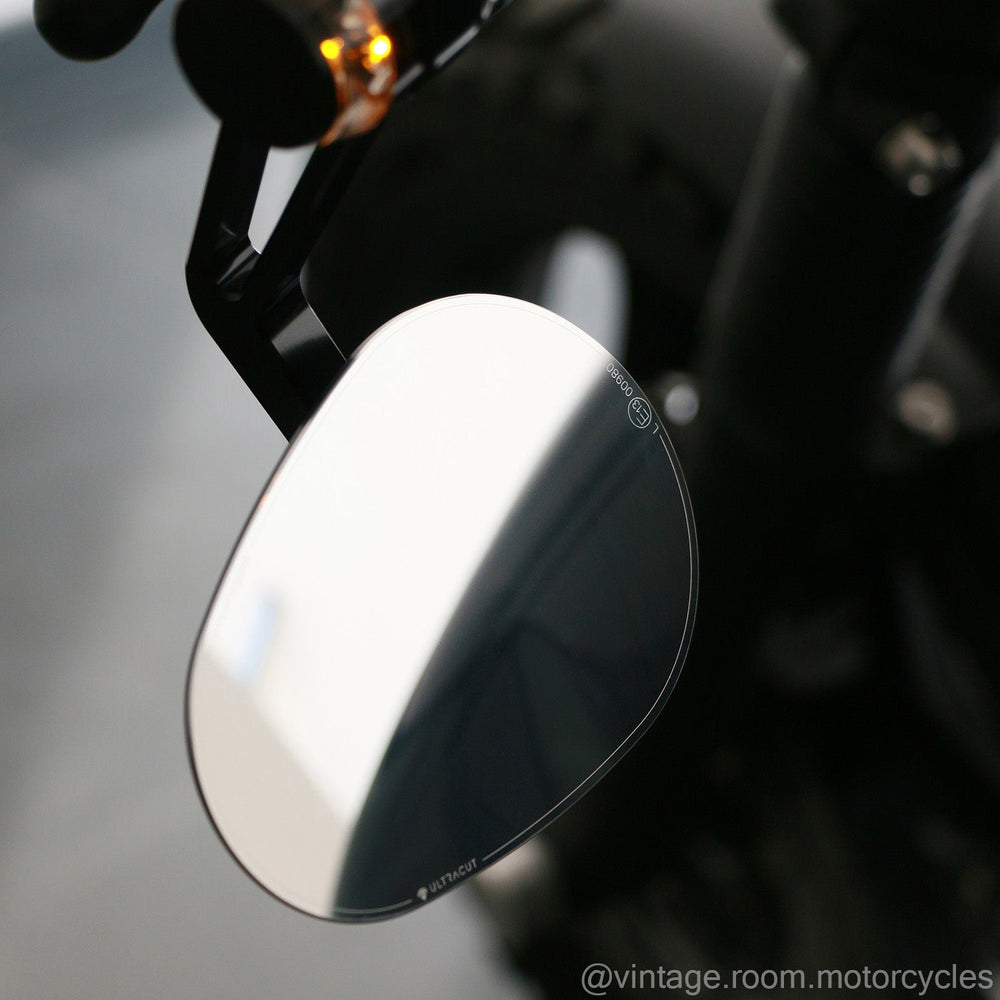

Our glassless mirror series mo.view is unique worldwide. The special feature of our mirrors is the patented mirror surface, which is made directly from the metal of the body. The aluminum itself is the mirror surface.

The mirror body itself is very thin and light, resulting in a weightless design without a rim or frame. The convex mirror surface is produced by flycutting using diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion and abrasion by an elaborate plasma coating in a vacuum.

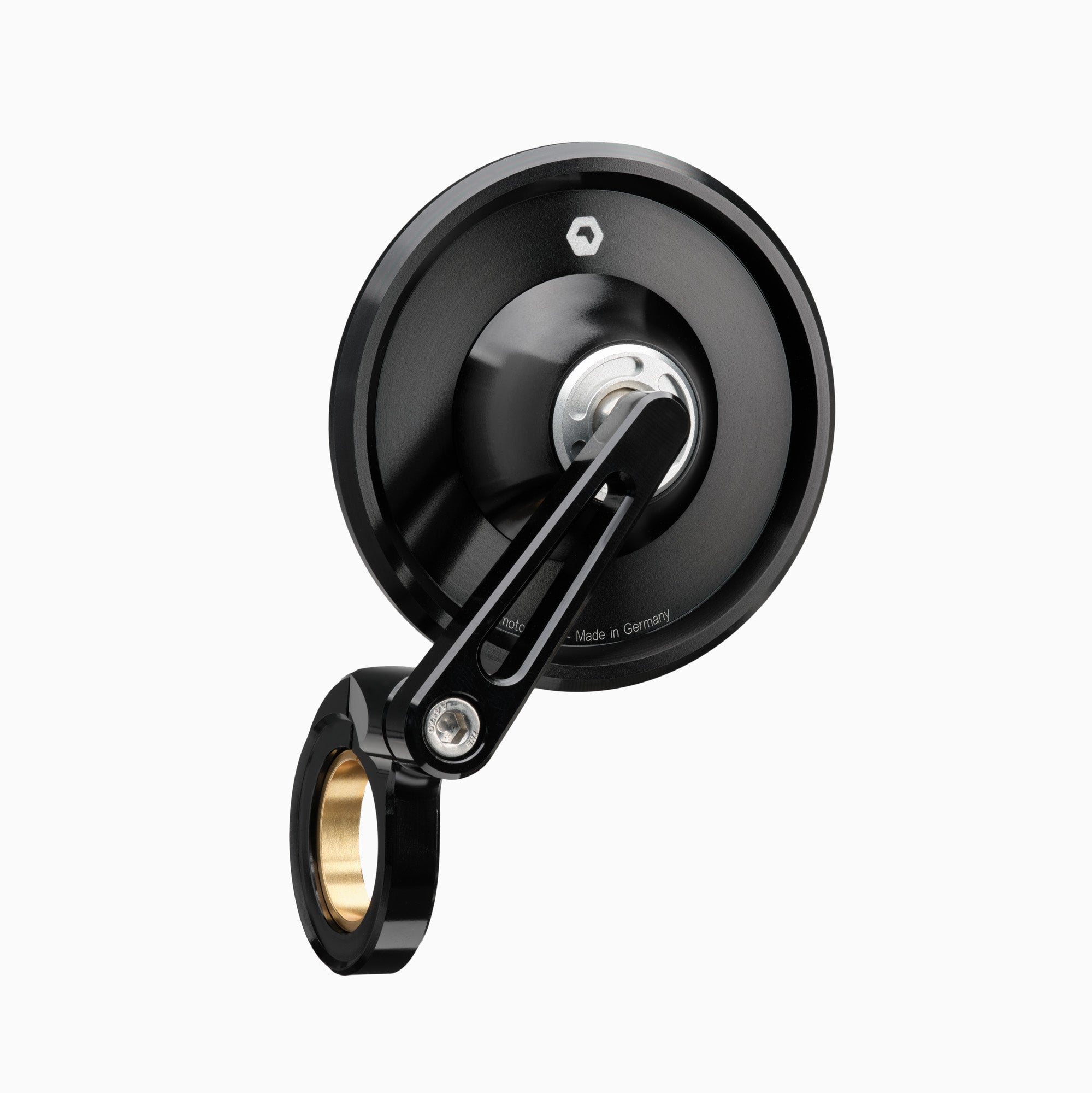

The mirror body, mirror arm and the clamp for the handlebar end are milled from solid aluminum on
CNC-machined from solid aluminium and anodized to a high quality. All

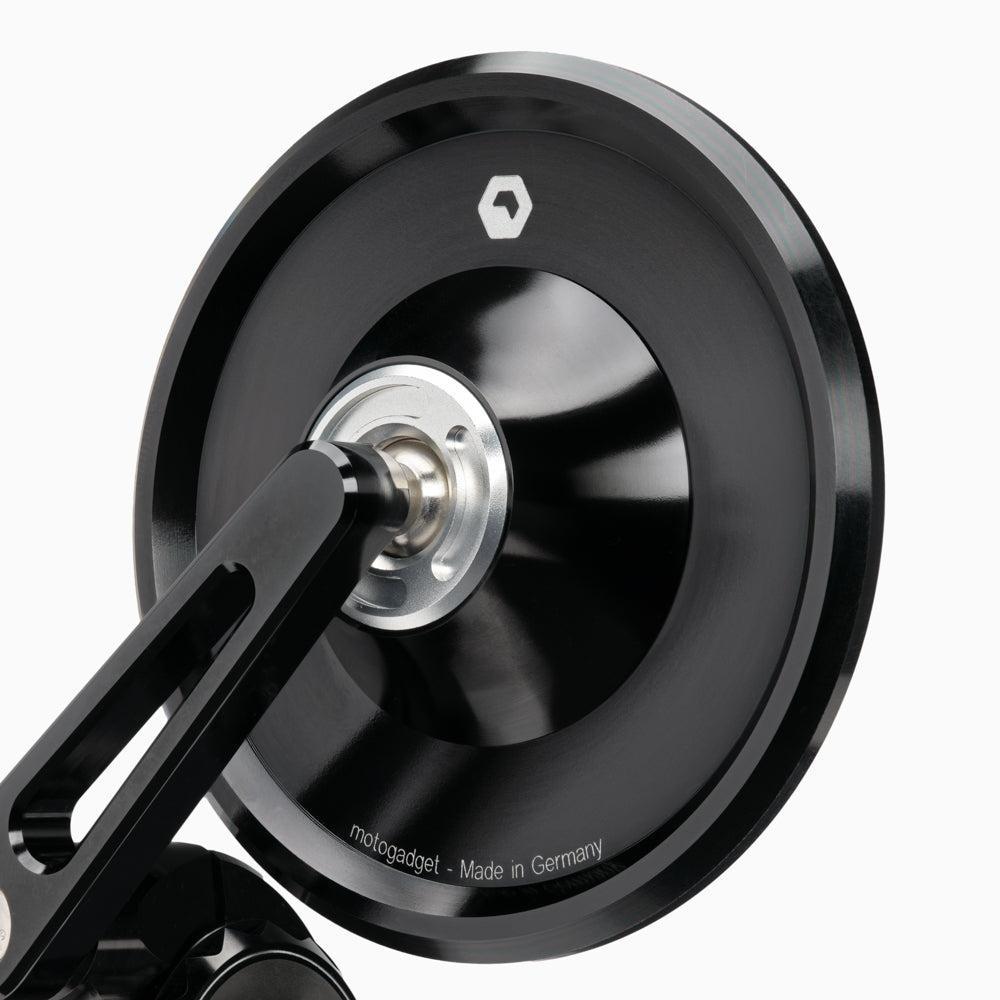

screws are made of stainless steel. The precise ball joint allows the mirror to be adjusted comfortably and very stably. Glass breakage or glass falling out is simply not possible.

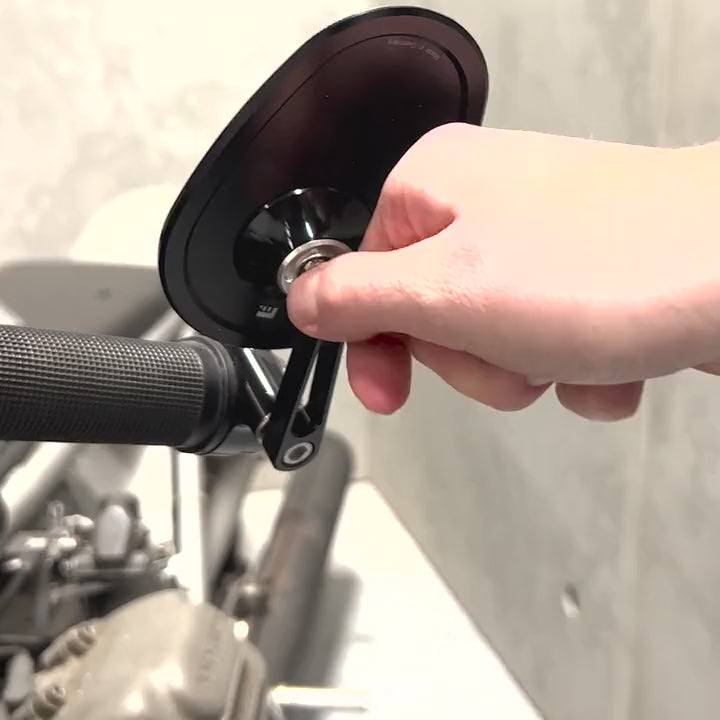

A special feature of the flip series mirrors is the pivoting mirror arm with defined locking angles at 45° intervals. This allows the mirror to be tilted upwards as required without changing the mirror setting.

For narrow passages, space problems in the garage or for transportation
extremely practical. The locking mechanism is very stable and cannot be adjusted accidentally. The mirror does not vibrate even at high speeds when fitted correctly.

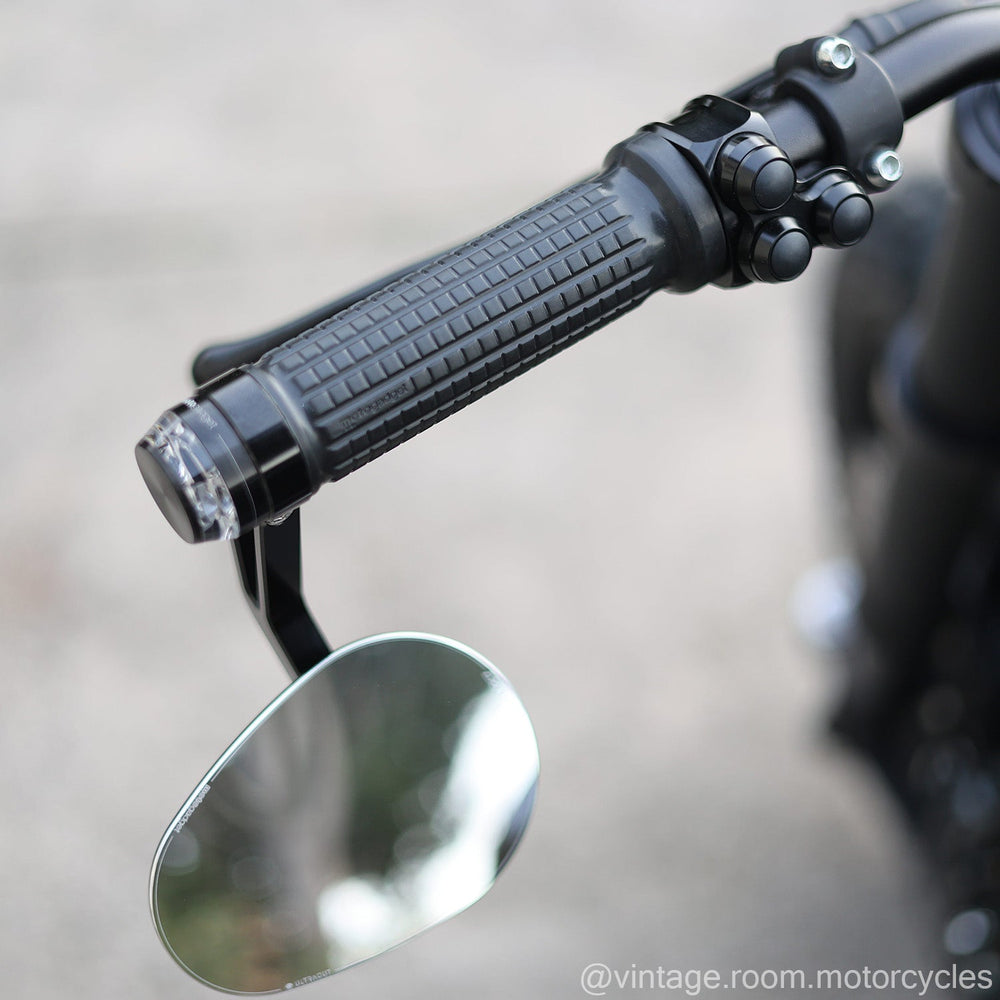

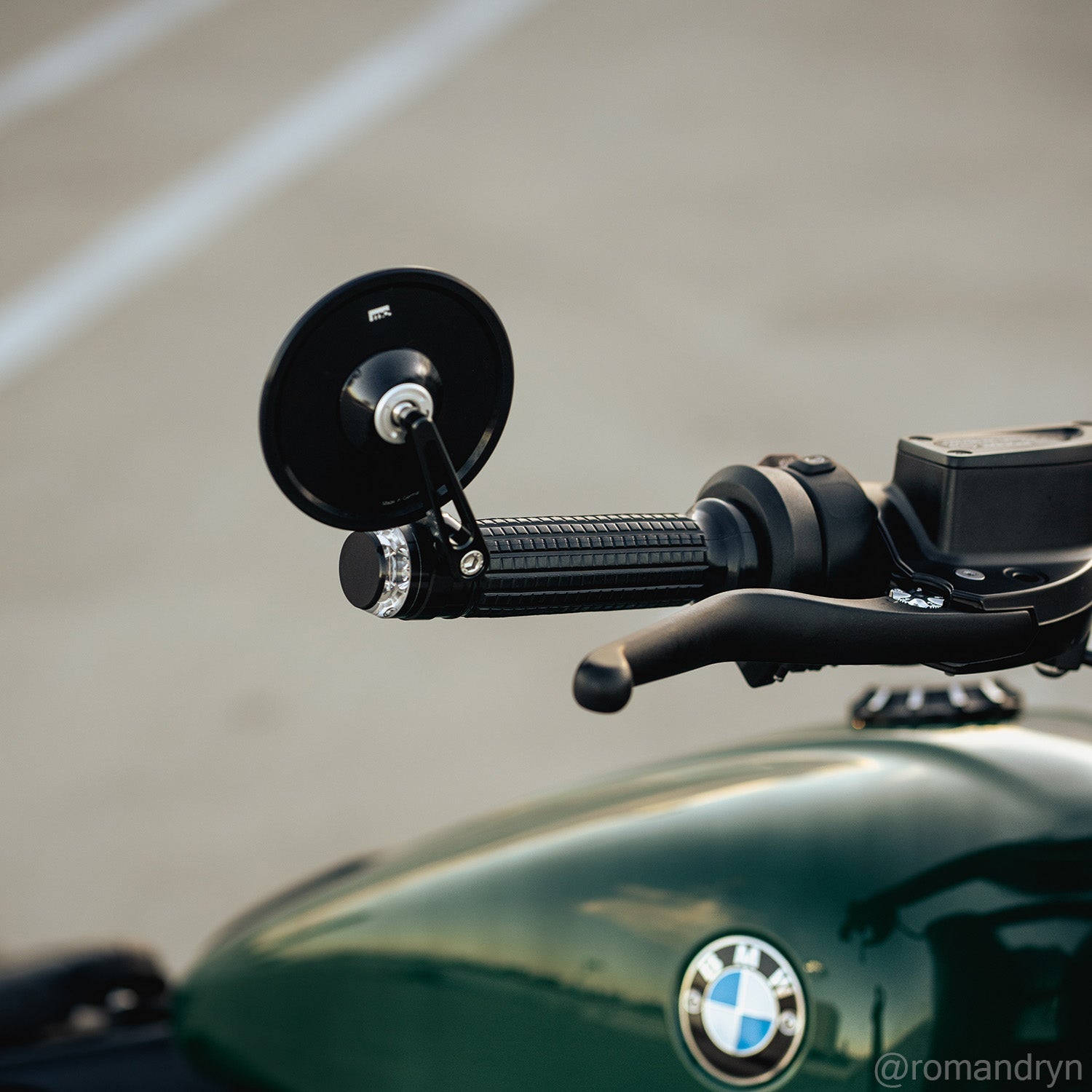

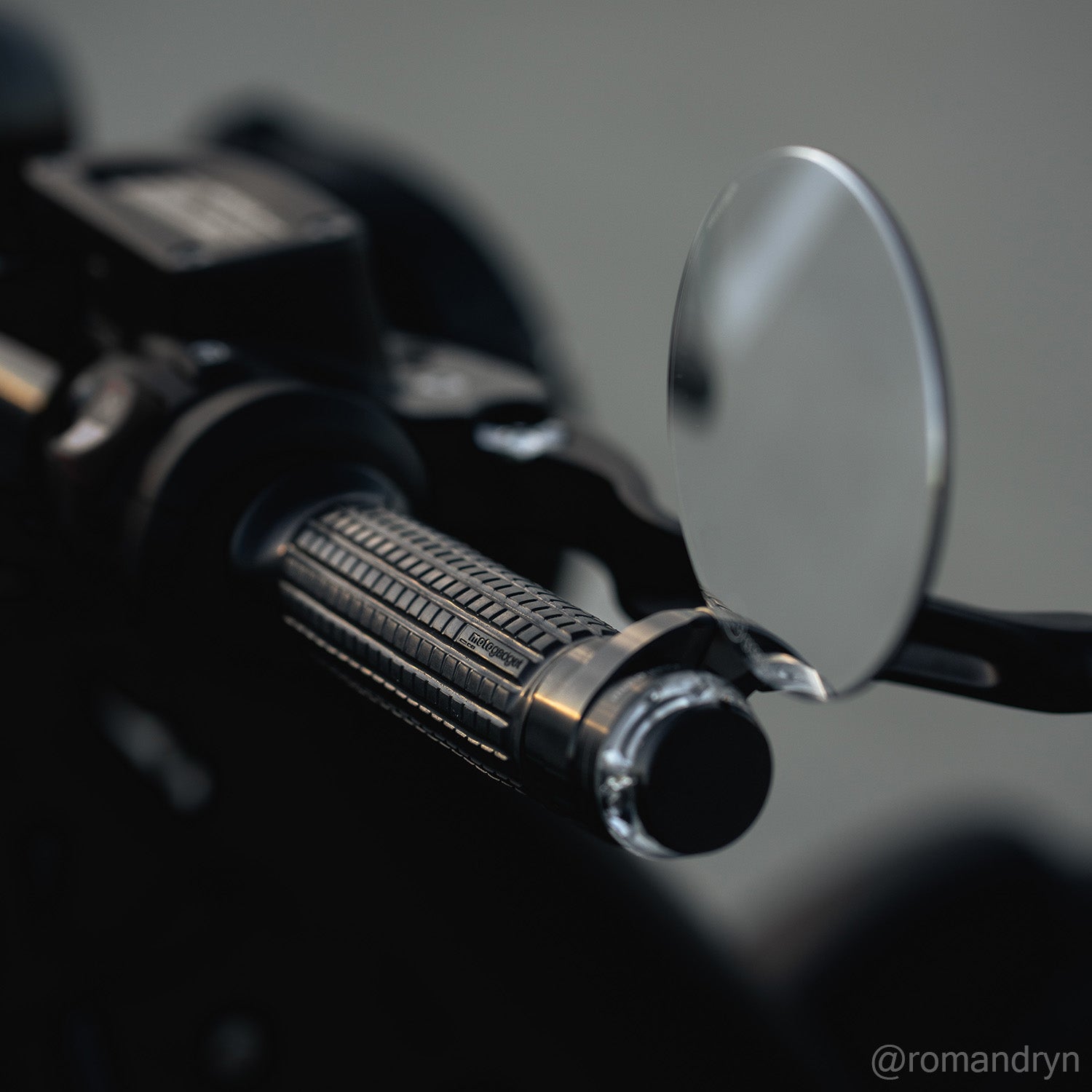

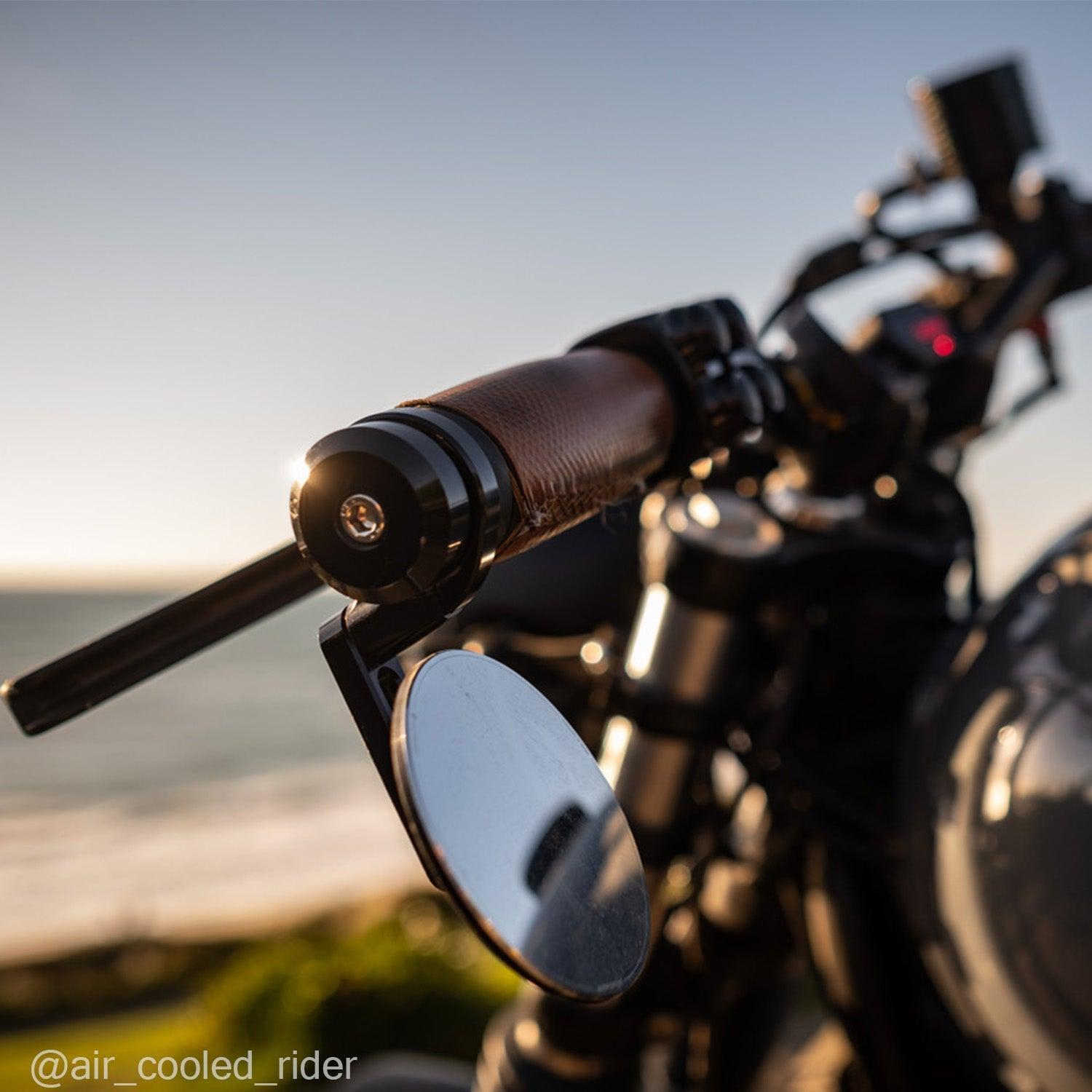

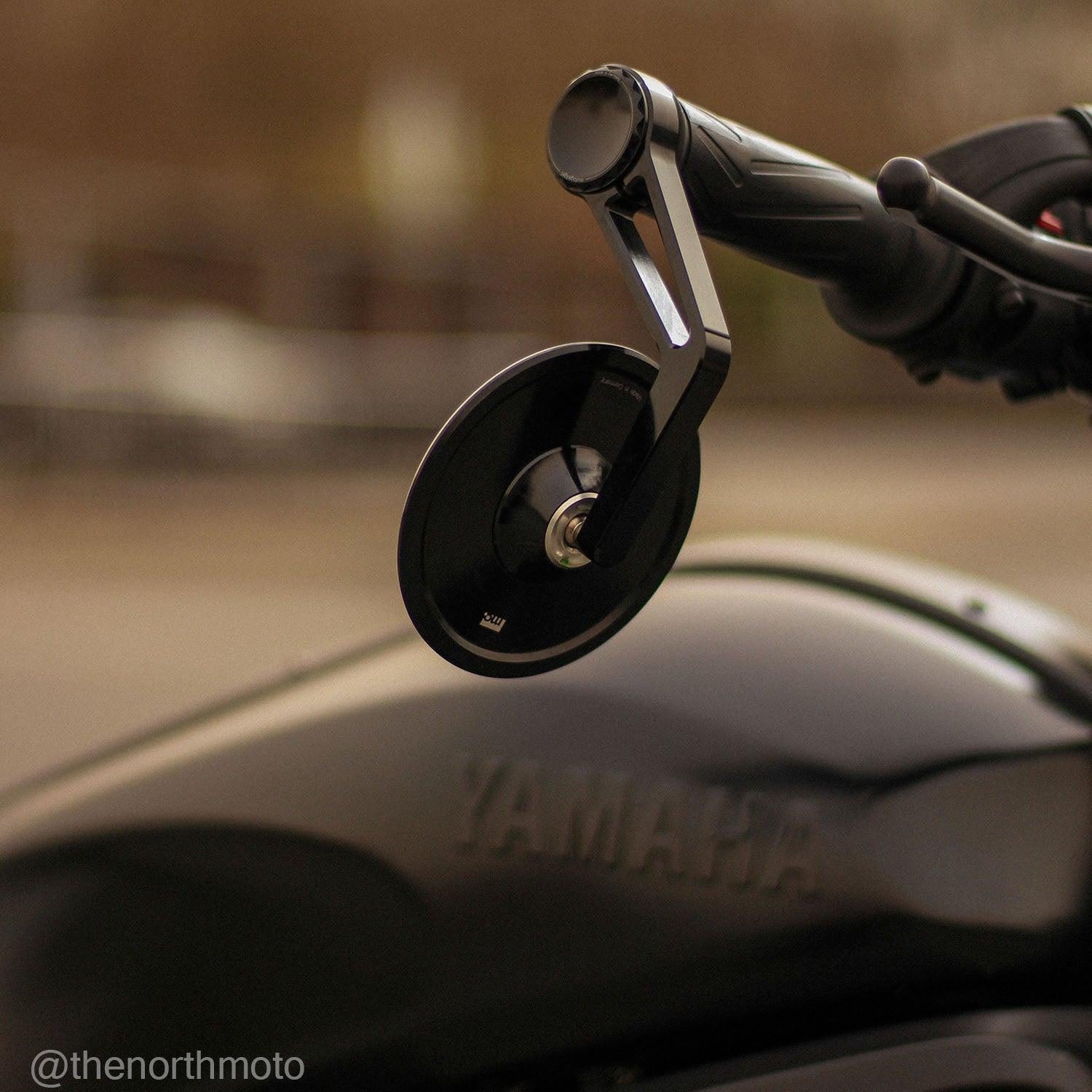

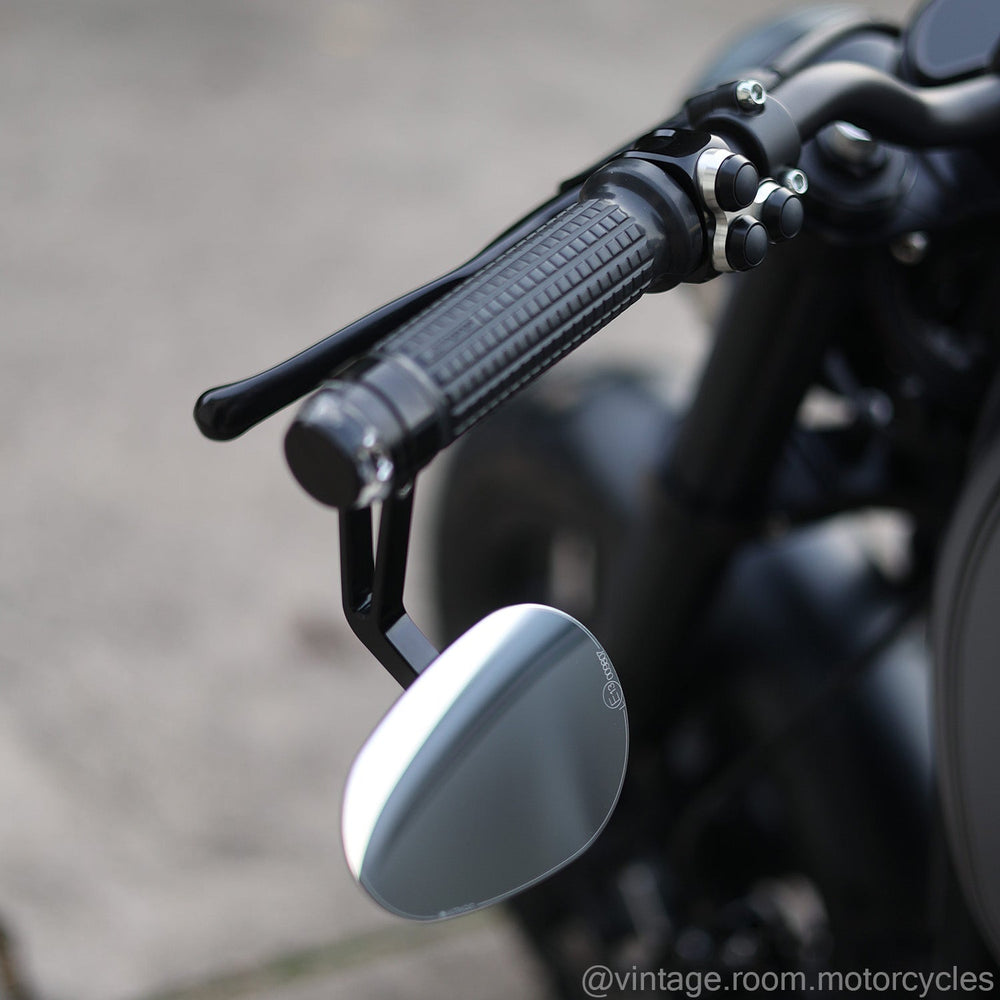

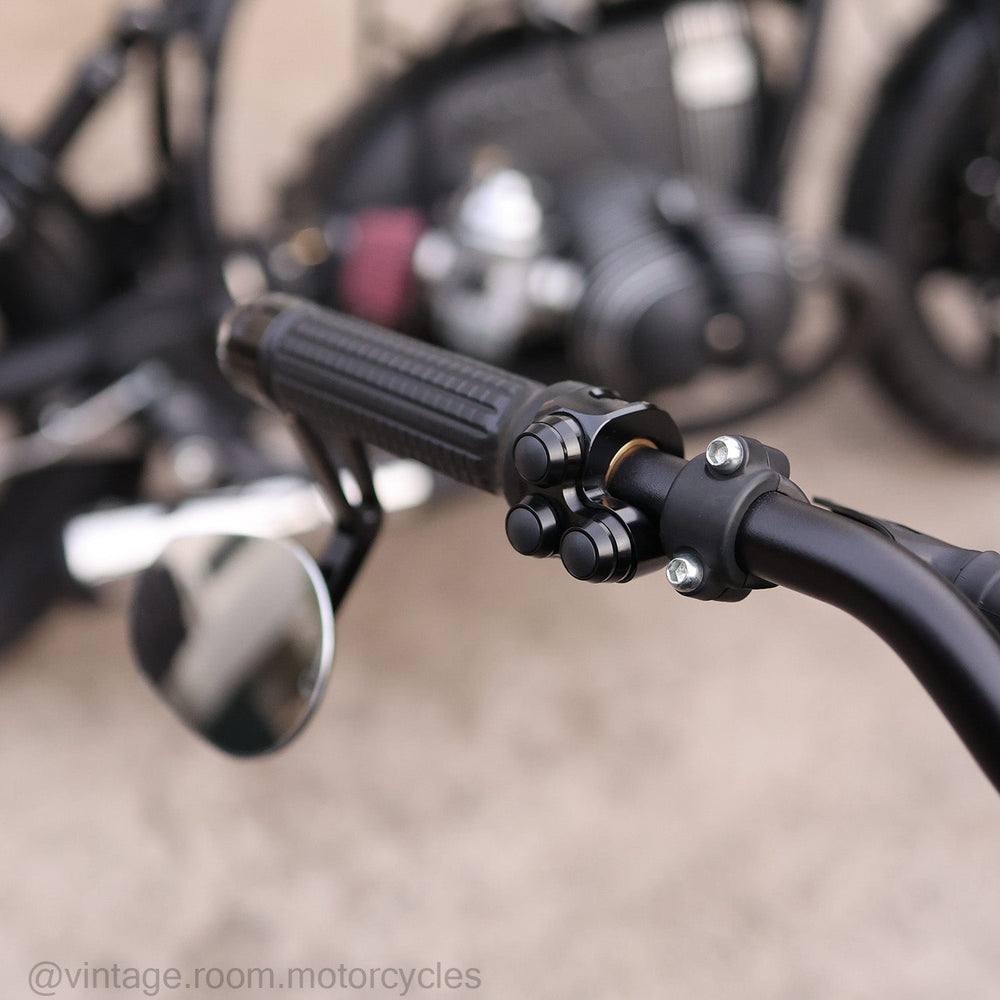

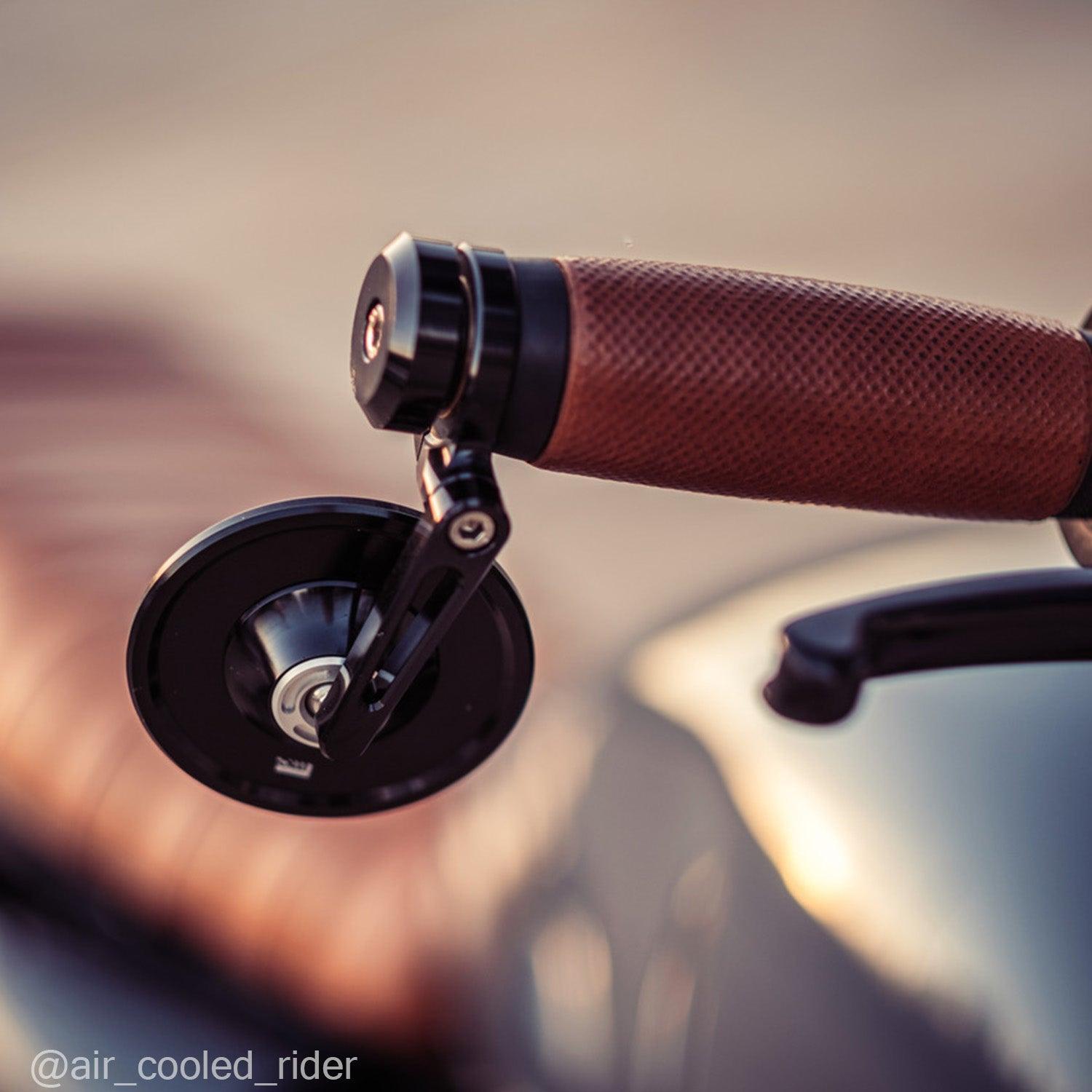

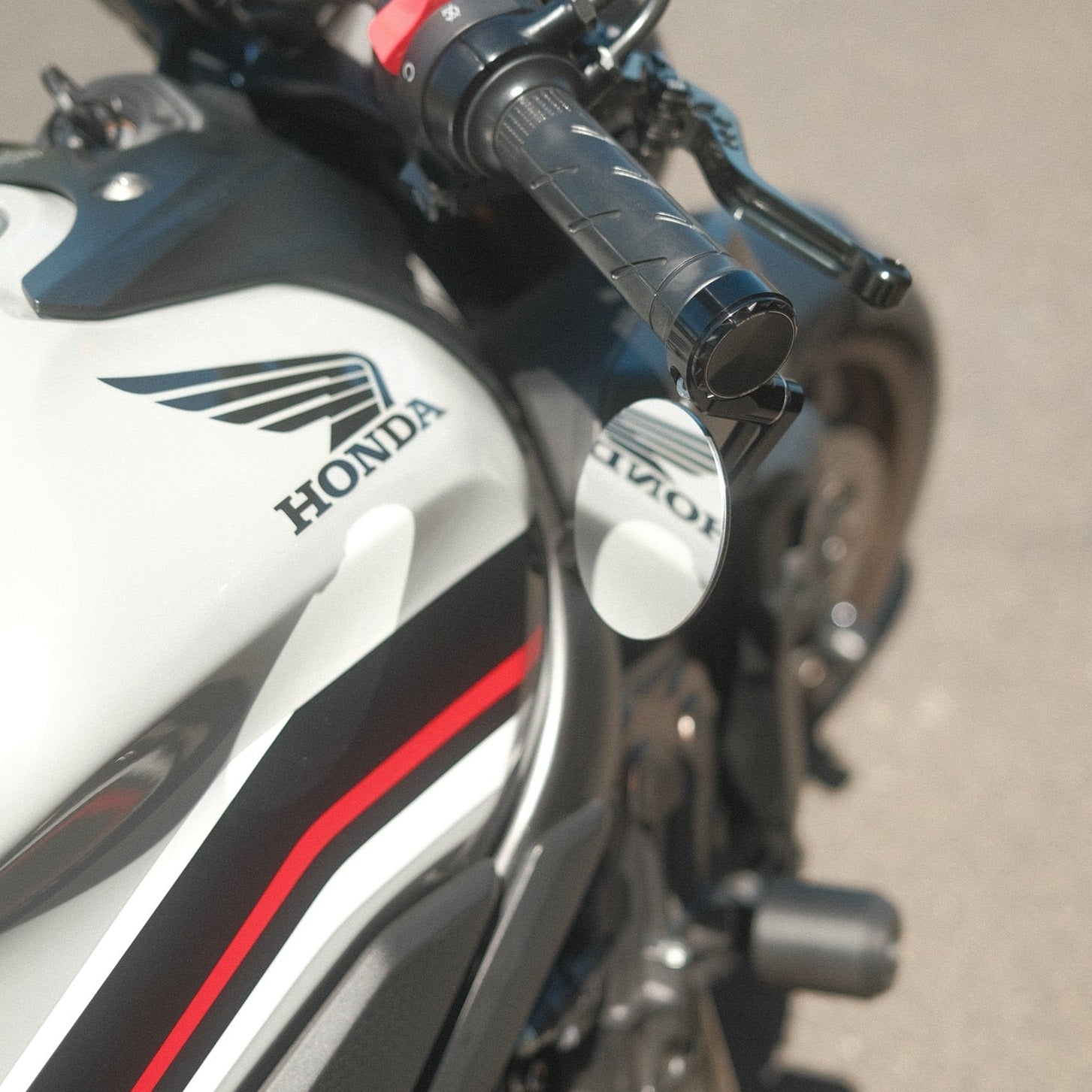

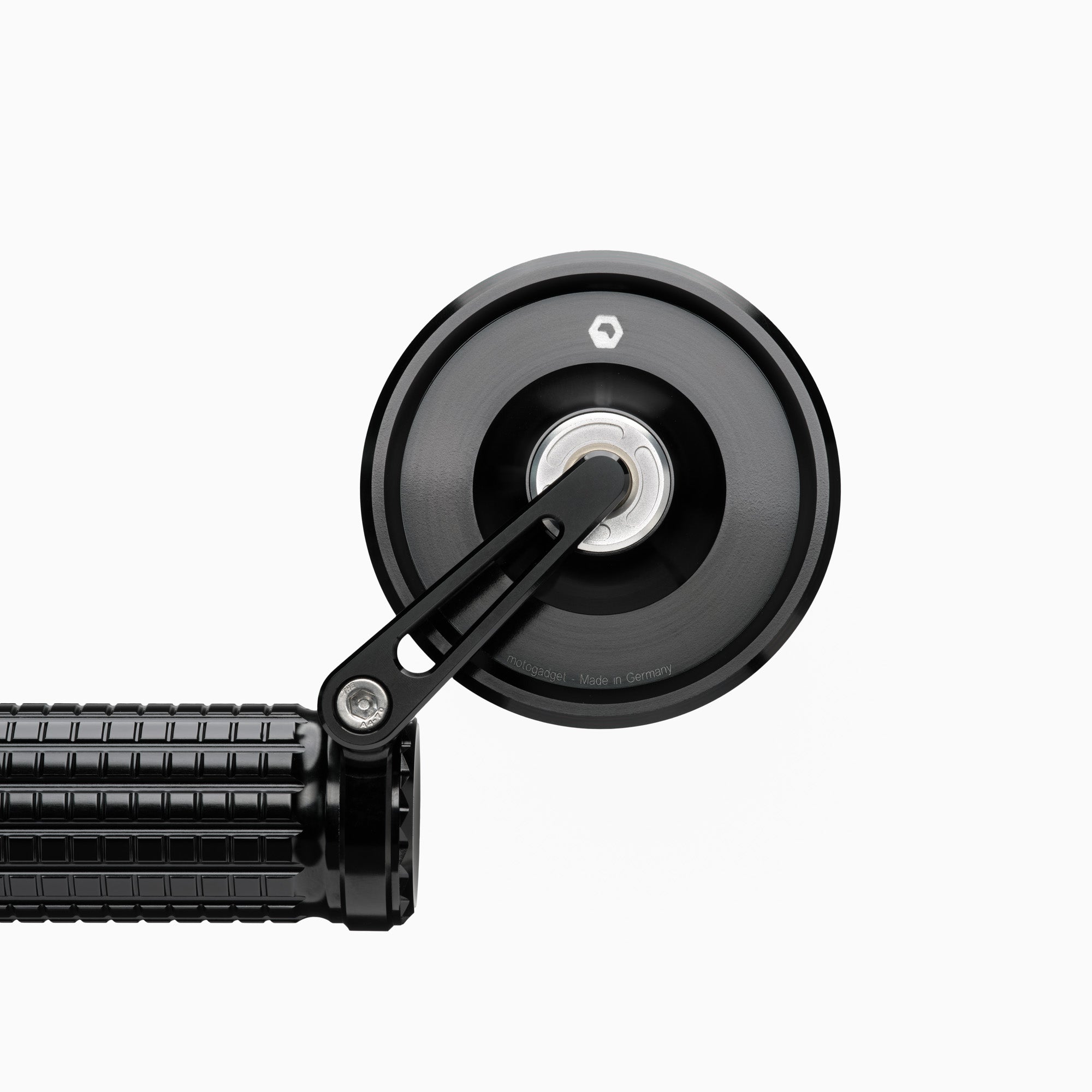

The mirror can be mounted above or below the handlebars and is suitable for the right and left side. It is mounted directly on the handlebar end (22 mm and 1 inch) or, if the grips and fittings cannot be moved, using a mo.view bar adapter.

The size of the mirror surface does not comply with the StVZO and it has no
ECE marking.

• Diameter of the mirror body: 75 mm

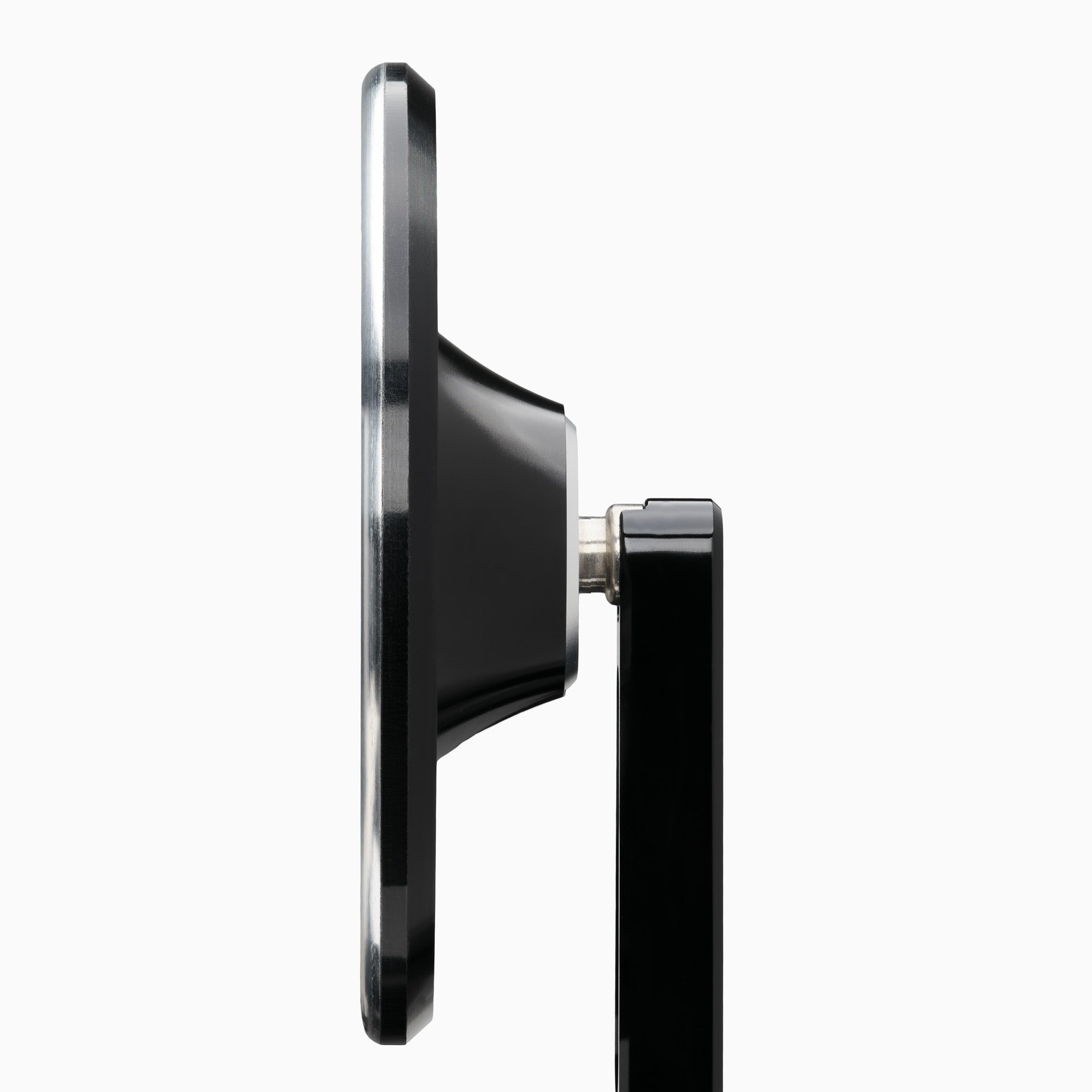

• Thickness of the mirror body without ball head: 4 mm
• Length of the mirror arm: 61 mm
• Clamp diameter: can be used for 22 mm and 1 inch handlebars
• Clamping width: 12 mm
• Weight: 110 g


• 1x mo.view spy flip mirror (without ECE marking) with arm
• 1x clamp
• QR code for installation and operating instructions
