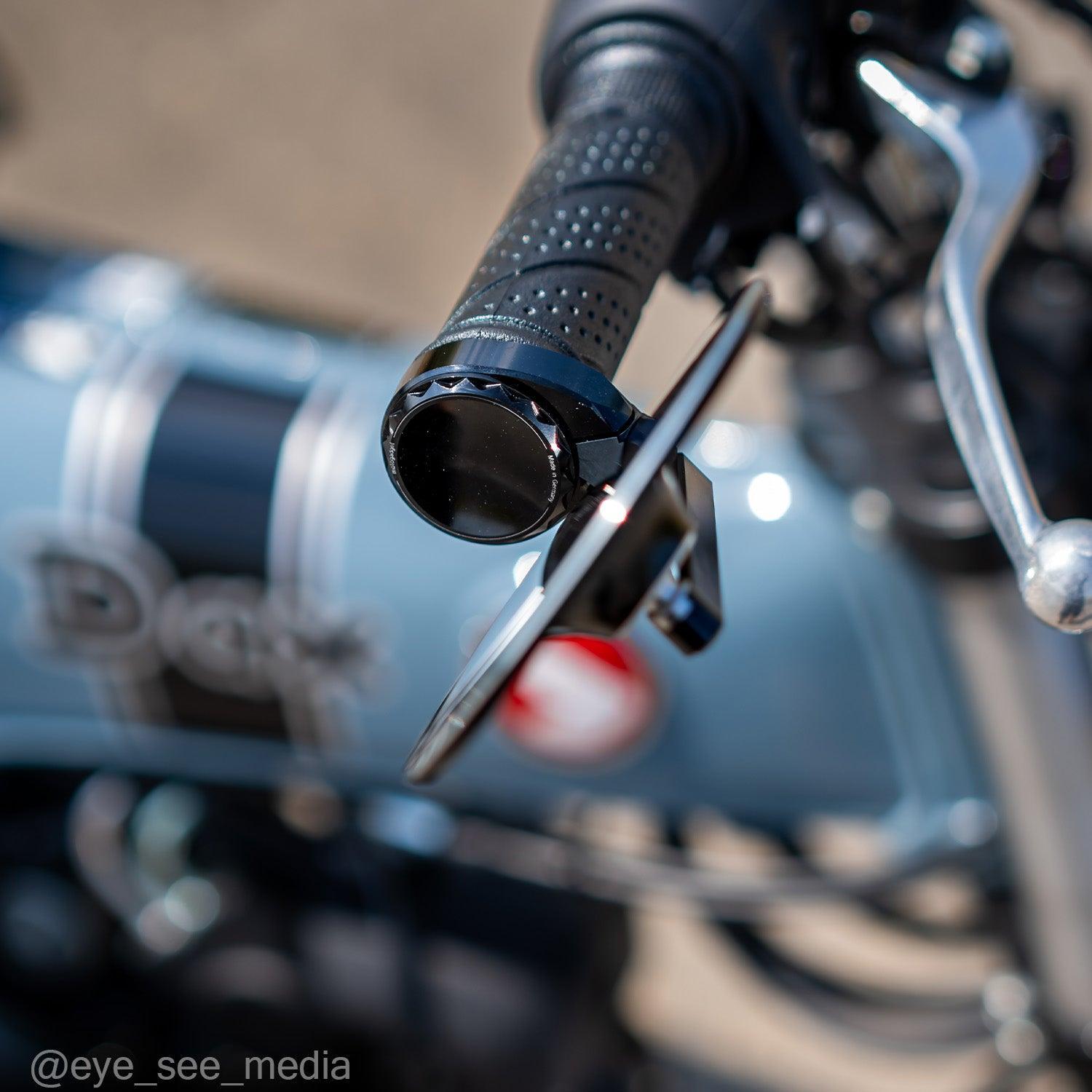

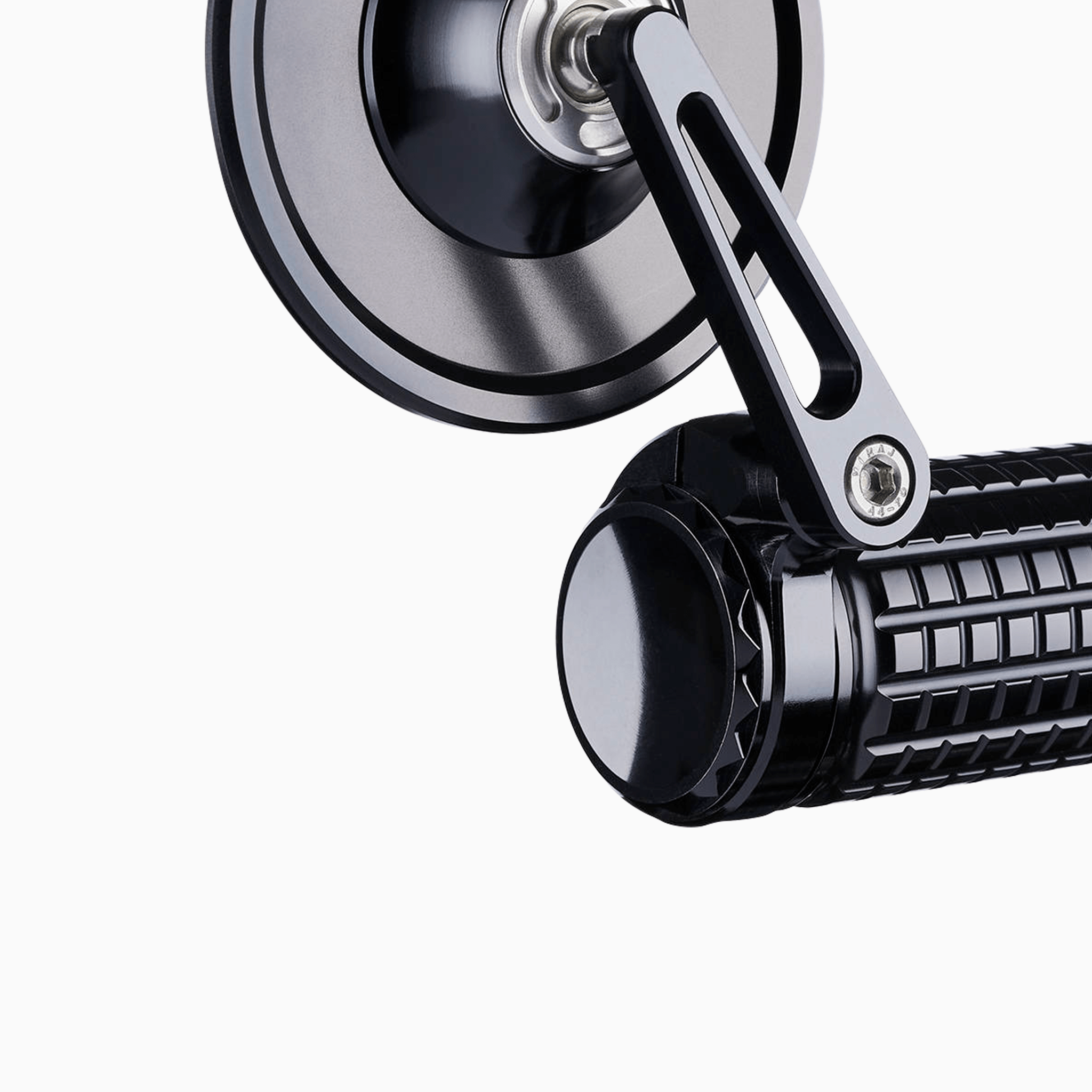

mo.view" version
Allows all mo.view handlebar end mirrors to be mounted without moving the grips or fittings on the handlebars. It creates a clamping surface for the handlebar end mirror outside the handlebar tube.
It is CNC-machined from billet aluminium and anodized in black. The screw-on cover has a concave design and is decorated with a crown on the outside. Clamping in the handlebar end is achieved by tightening an M6 screw under the cover, which expands the clamping pieces and enables stable mounting.
The bar adapter uni cap is supplied with two clamping pieces for the left and right side of the handlebar. It is mounted directly in the handlebar end (22 mm, 7/8 and 1 inch) with a free inner diameter (without internal thread) of 12 to 21 mm.

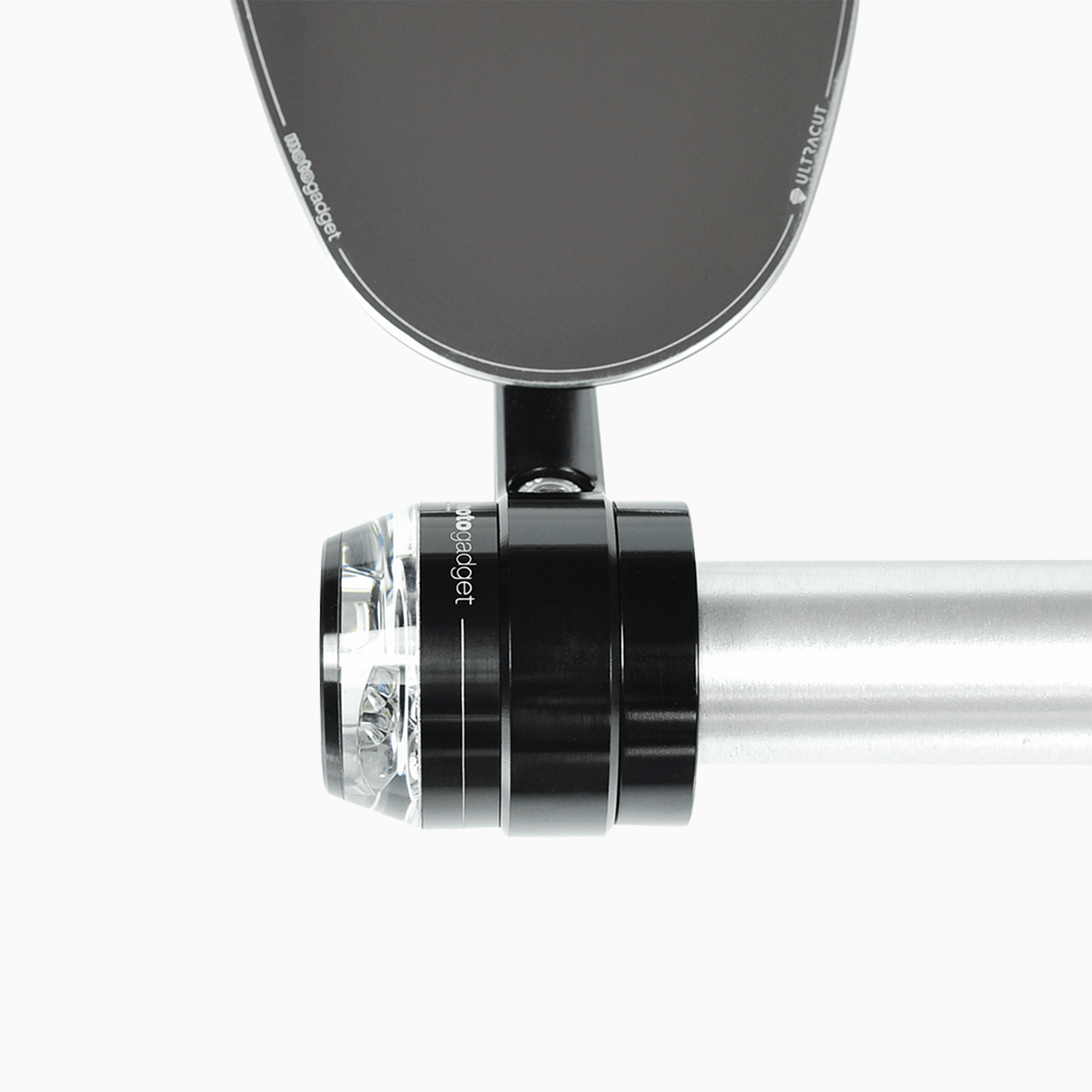

mo.view and mo.blaze" version
Allows mounting of all mo.view handlebar end mirrors in combination with the mo.blaze handlebar end indicators without moving the grips or fittings on the handlebar. It creates a clamping surface for the handlebar end mirror outside the steering tube and at the same time allows the mounting of the handlebar end turn signal.
It is CNC-machined from billet aluminium and anodized in black. Clamping in the handlebar end is achieved by tightening an M6 screw inside the adapter, which expands the clamping pieces and enables stable mounting.
Then tighten the mirror clamp on the adapter and thus simultaneously clamped the handlebar end indicators. The bar adapter uni disc/cone is supplied with two clamps for the left and right side of the handlebar. It is mounted directly in the end of the handlebar (22 mm, 7/8 and 1 inch) with a free inner diameter of 12 to 21 mm (without internal thread) and a length of 90 mm.
