motogadget mo.view club 130

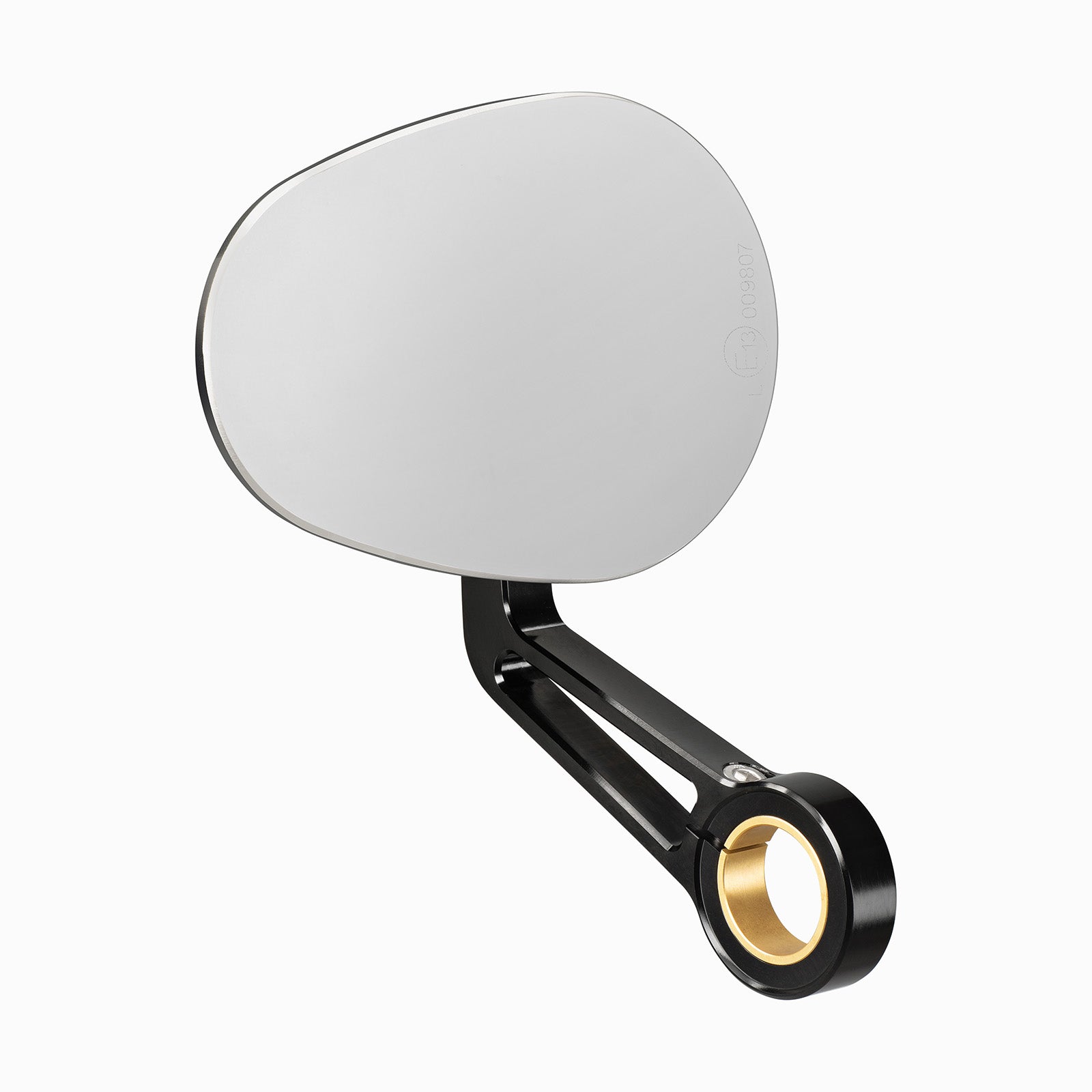

Our frameless mirror series, mo.view unique worldwide. What makes our mirrors special is the patented mirror surface, which is crafted directly from the metal of the frame. The aluminum itself serves as the mirror surface.

The mirror body itself is very thin and light, resulting in a weightless design without a rim or frame.

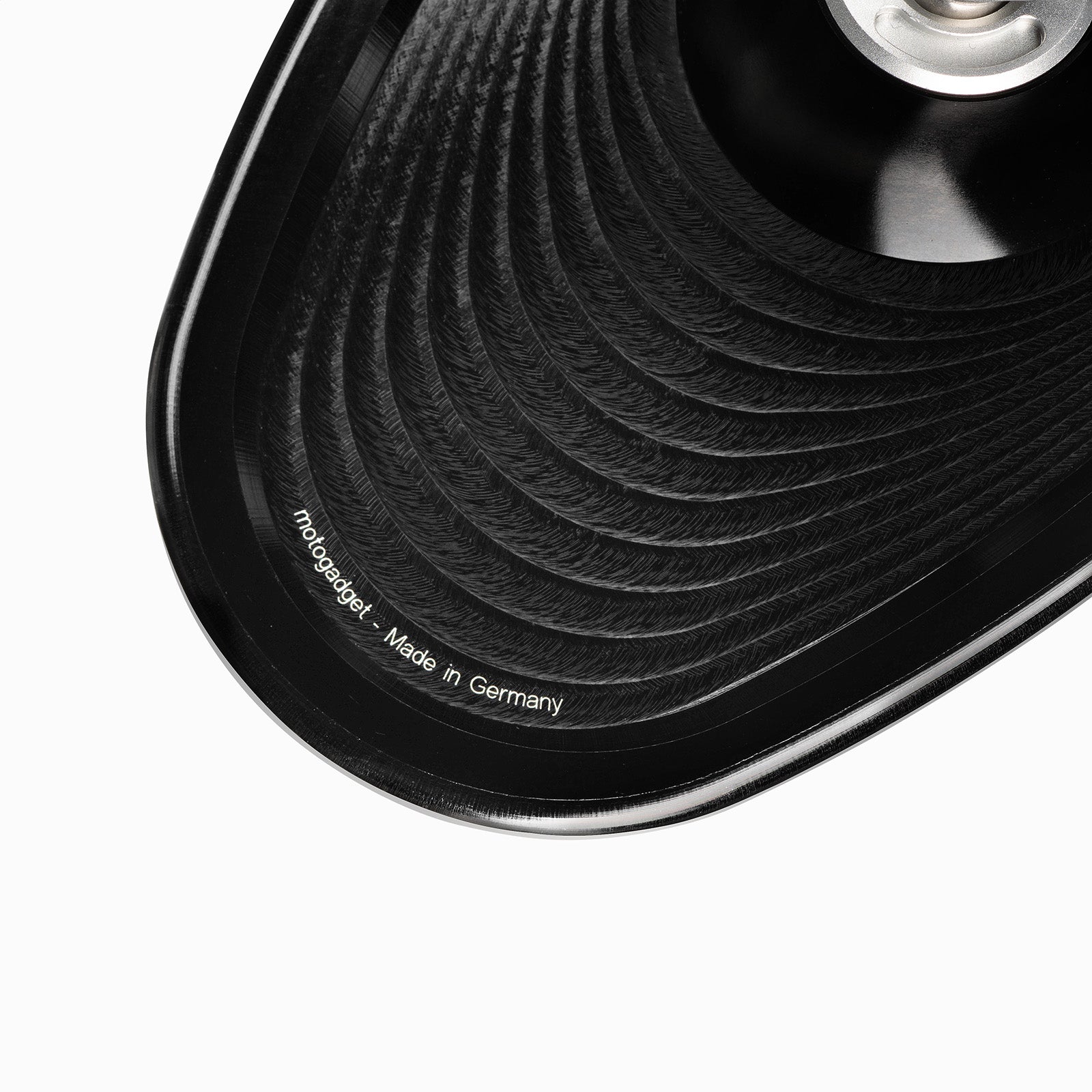

The convex mirror surface is produced by flycutting using diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion and abrasion by an elaborate plasma coating in a vacuum.

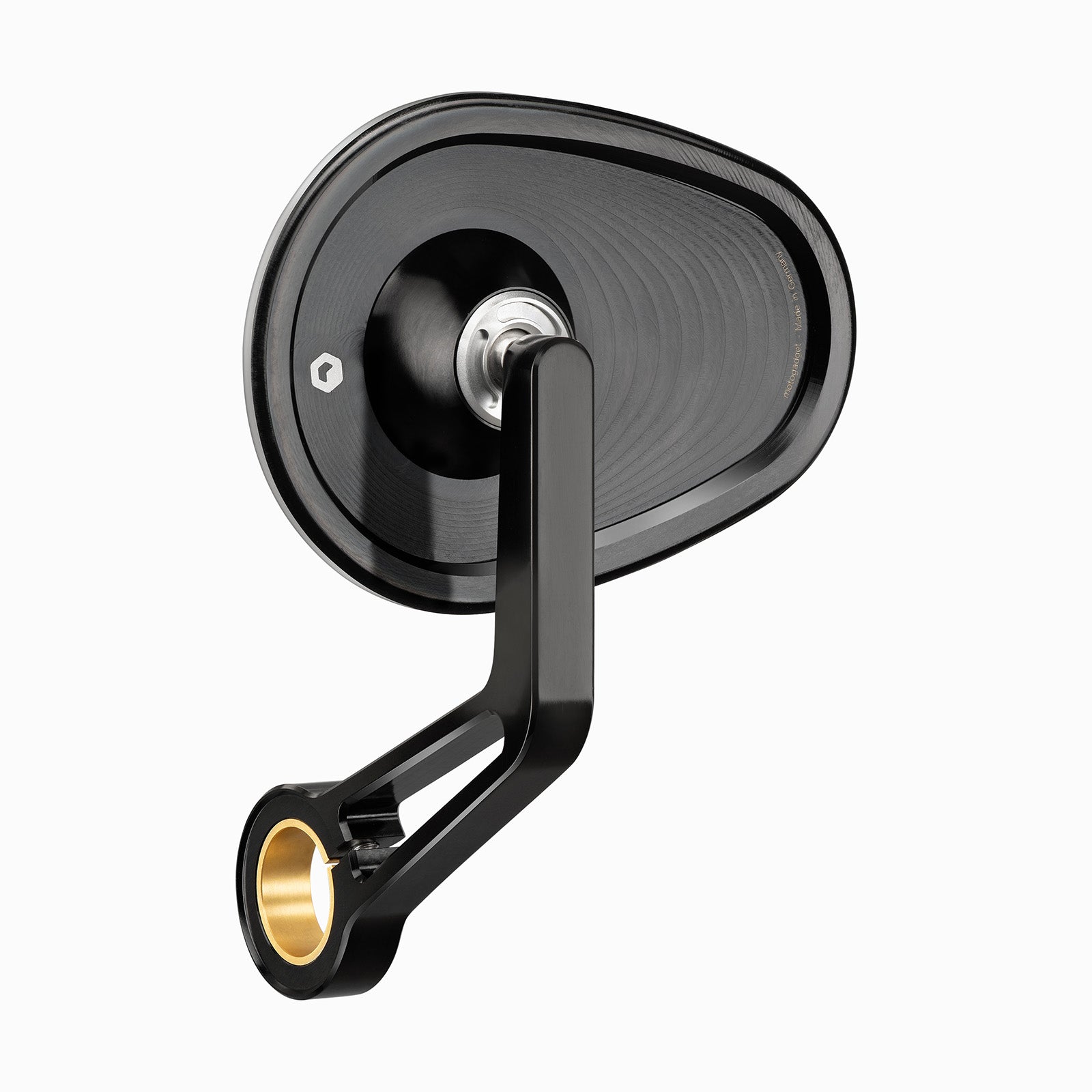

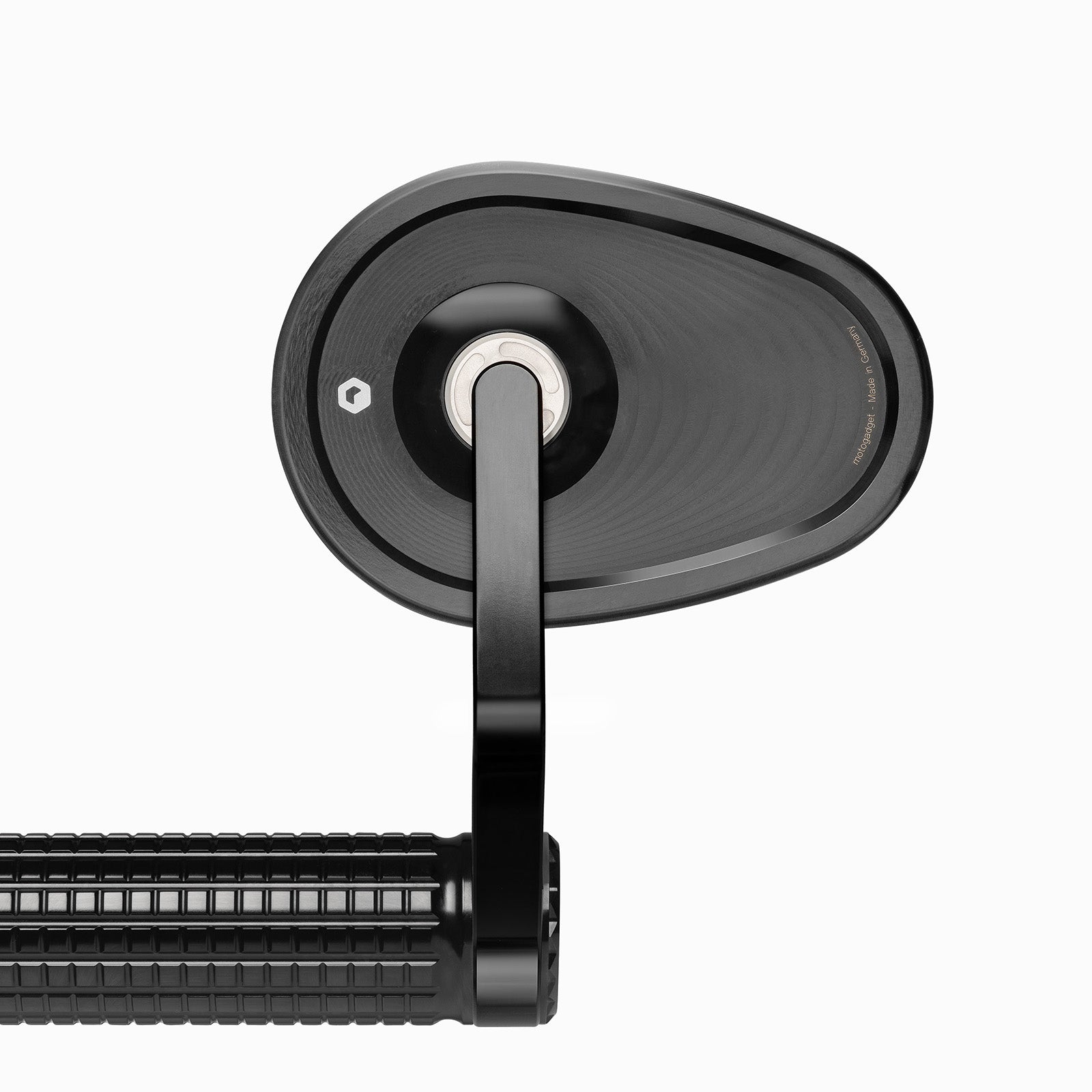

The mirror body, mirror arm and the clamp for the handlebar end are milled from solid aluminium on CNC machines and anodized to a high quality. All screws are made of stainless steel. The precise ball joint allows the mirror to be adjusted comfortably and very stably. Glass breakage or glass falling out is simply not possible.

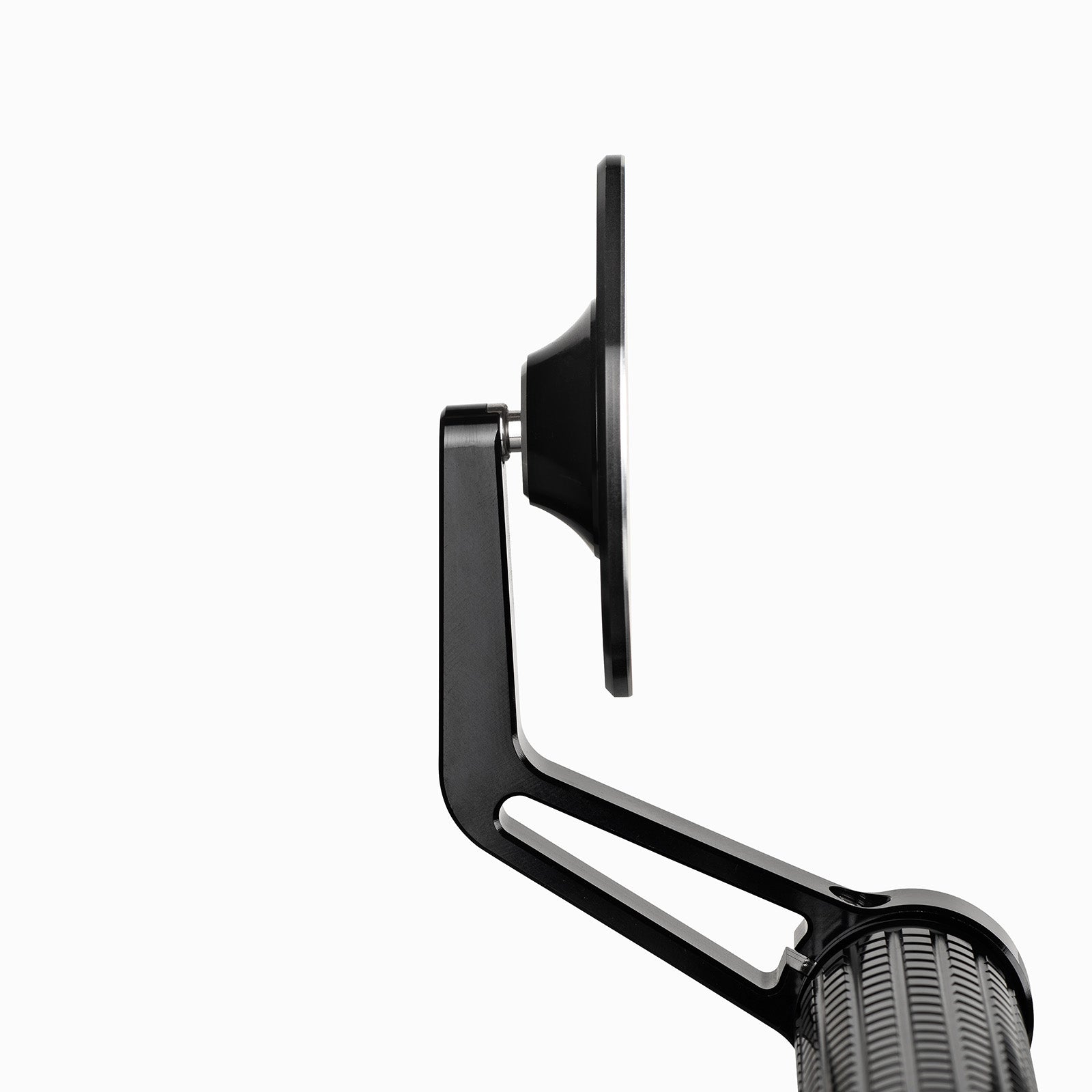

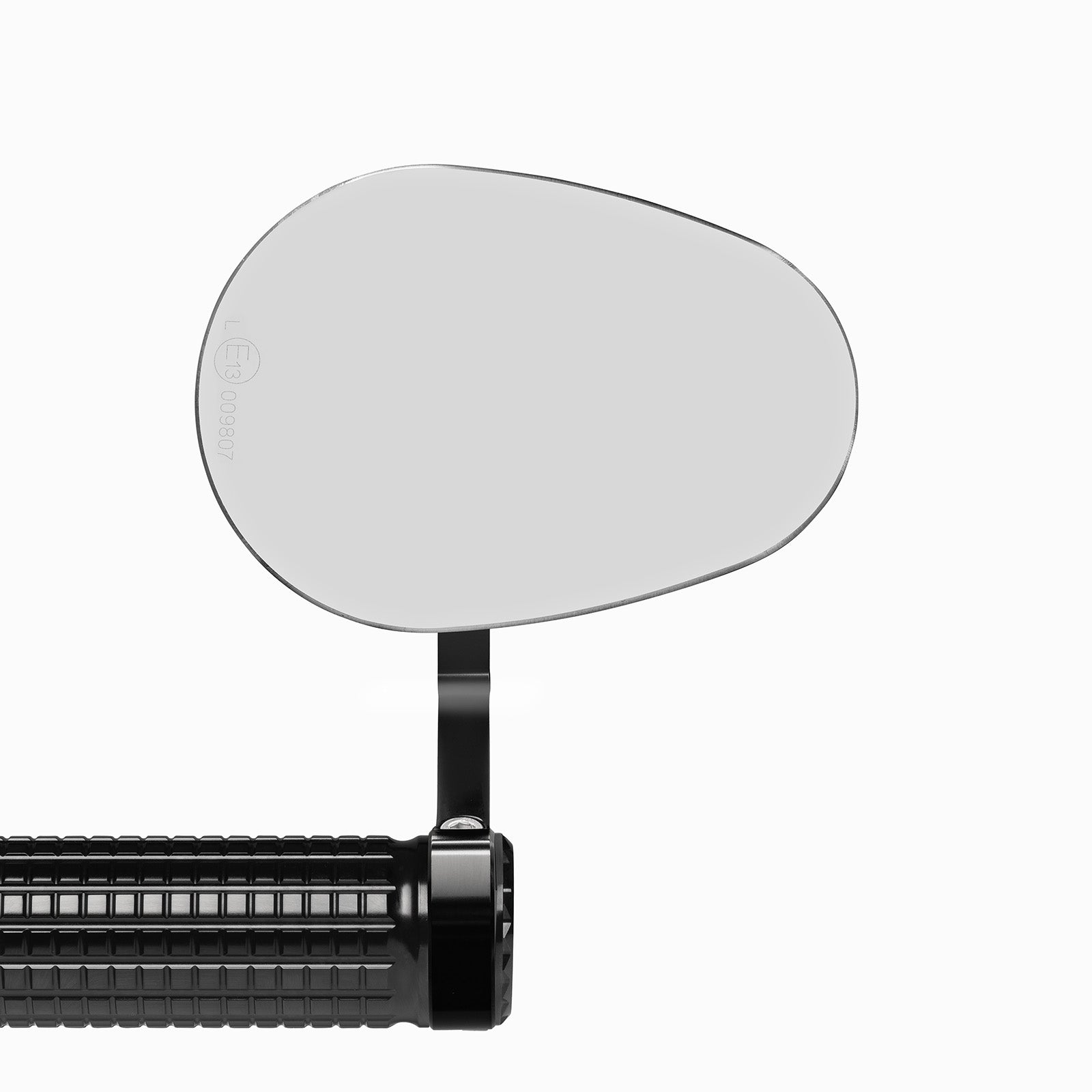

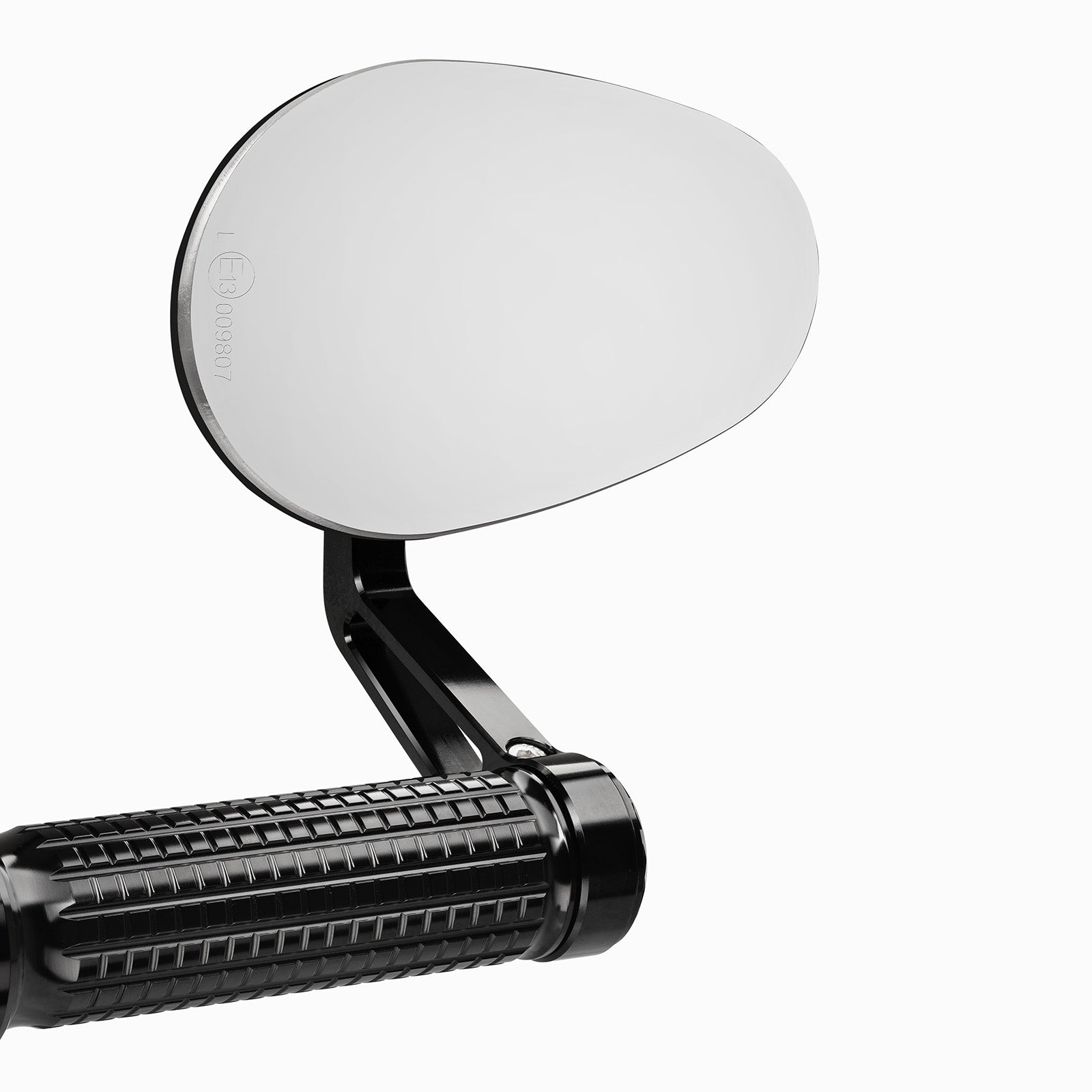

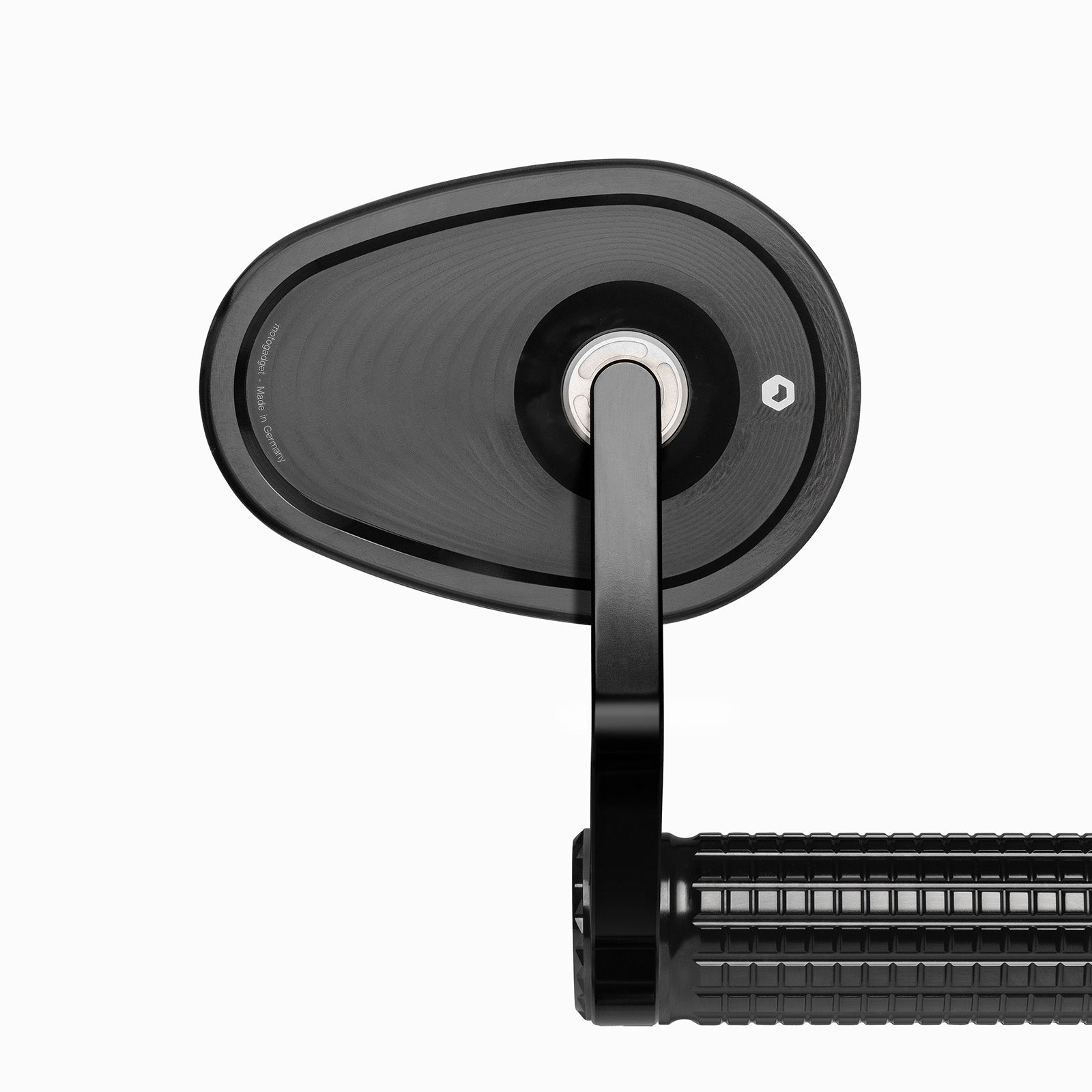

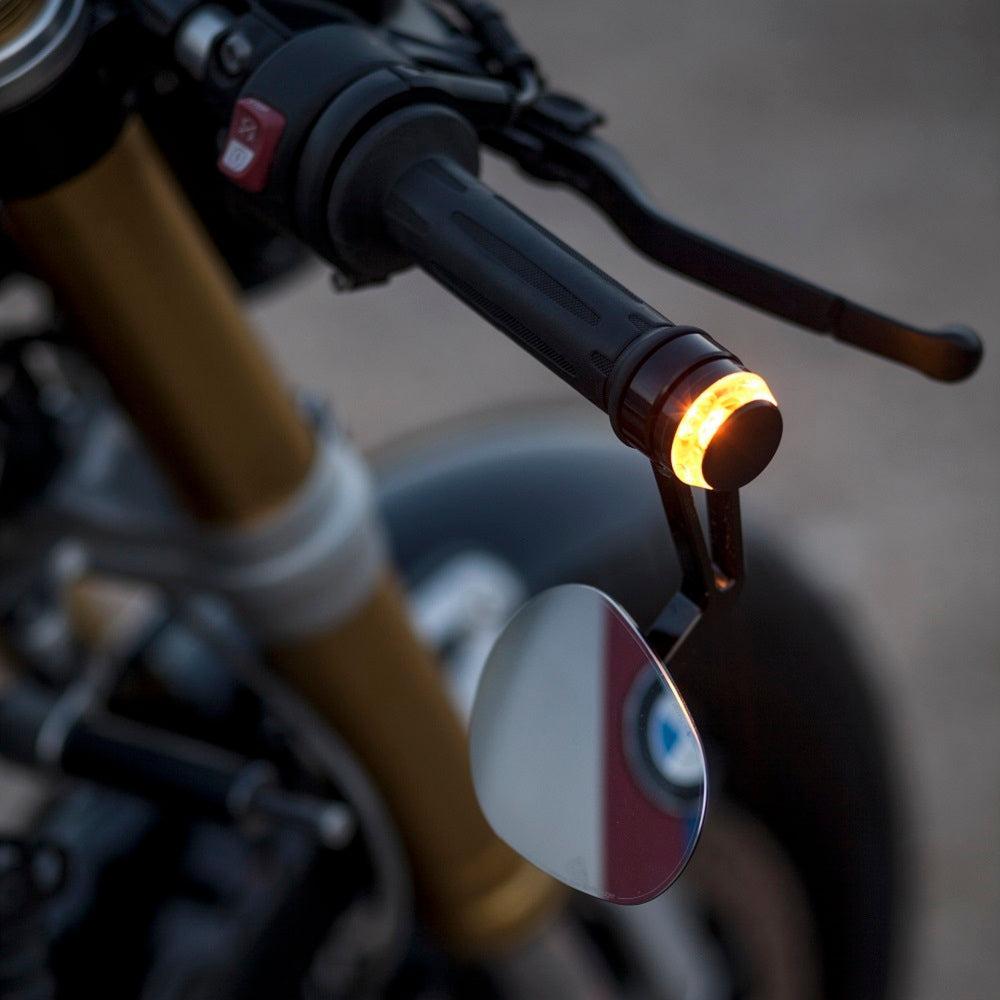

The handlebar-end mirror can be mounted above or below the handlebars. The

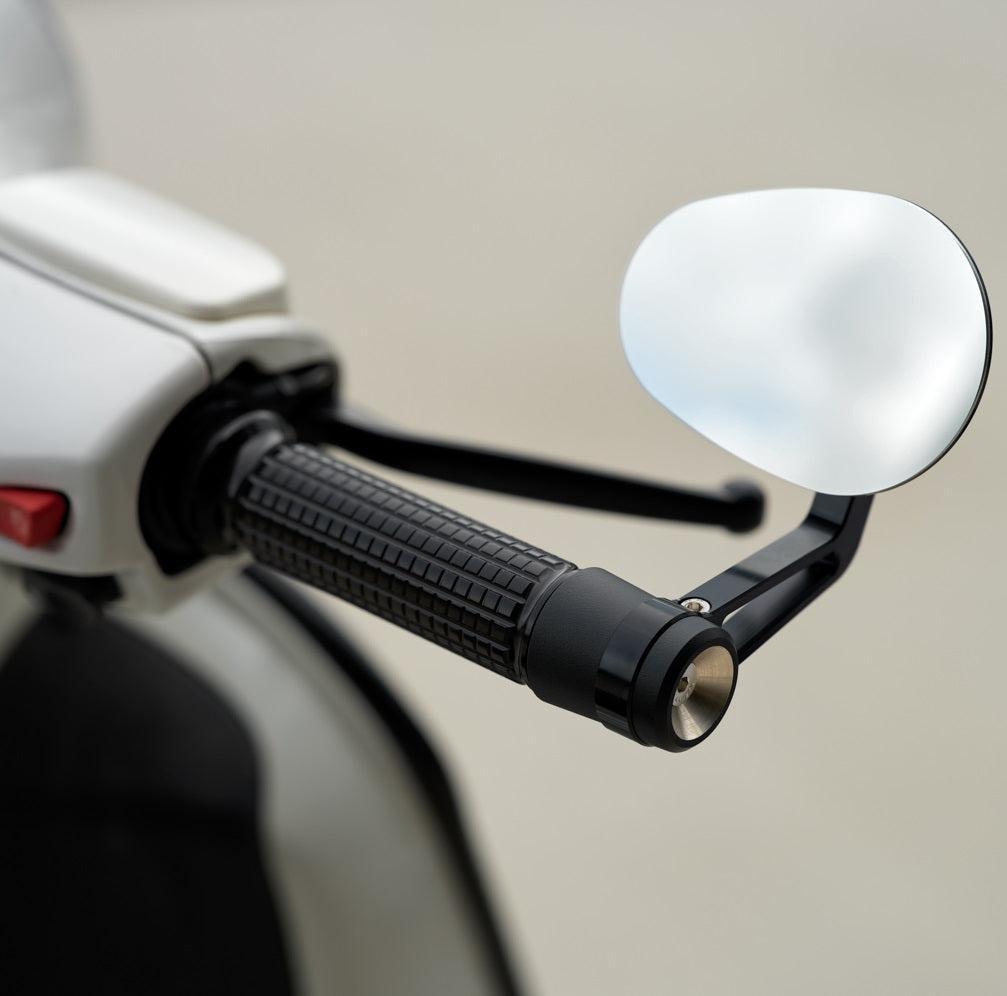

short arm is adjustable. The mirror is suitable for both the right and left sides. It mounts directly onto the handlebar end (22 mm and 1 inch) or, if the grips and controls cannot be moved, using the mo.view bar adapter.

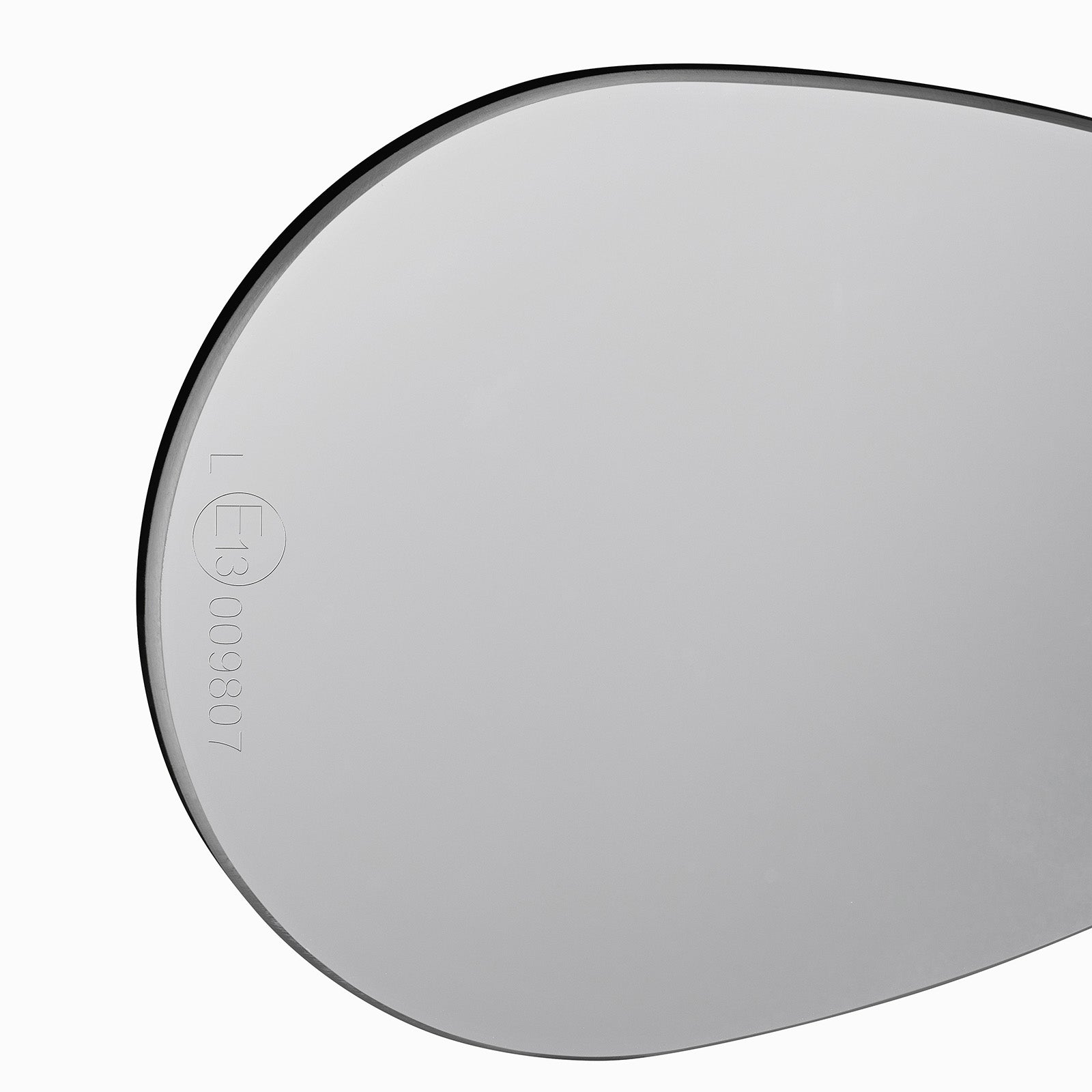

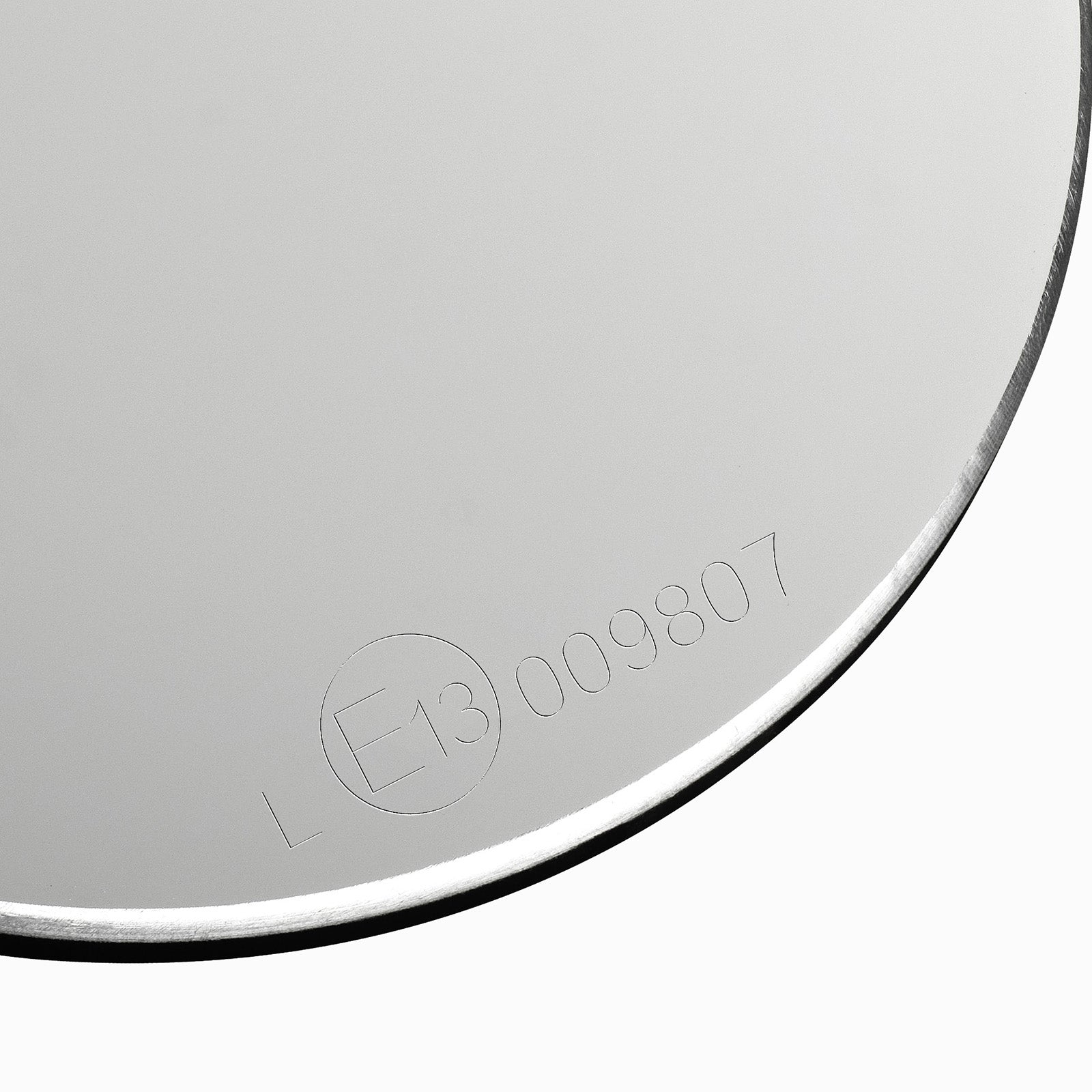

The size of the mirror surface corresponds to the StVZO and it has an ECE marking. This makes it suitable for any motorcycle without registration.

Cleaning: Use a mild cleaning agent and a microfiber cloth to remove
dirt, dust and other residues from the surface of the mirrors.
Avoid abrasive cleaning agents that could damage the surface.
surface.

• Width of the mirror body: 114 mm
• Height of the mirror body: 80 mm
• Thickness of the mirror body without ball head: 4.5 mm
• Length of the mirror arm: 110 mm
• Clamp diameter: can be used for 22 mm and 1 inch handlebars
• Clamping width: 12 mm
• Weight: 150 g

• 1 mo.view club 130 rearview mirror (with ECE certification) with arm
• 1 x clamp
• QR code for installation and operating instructions
