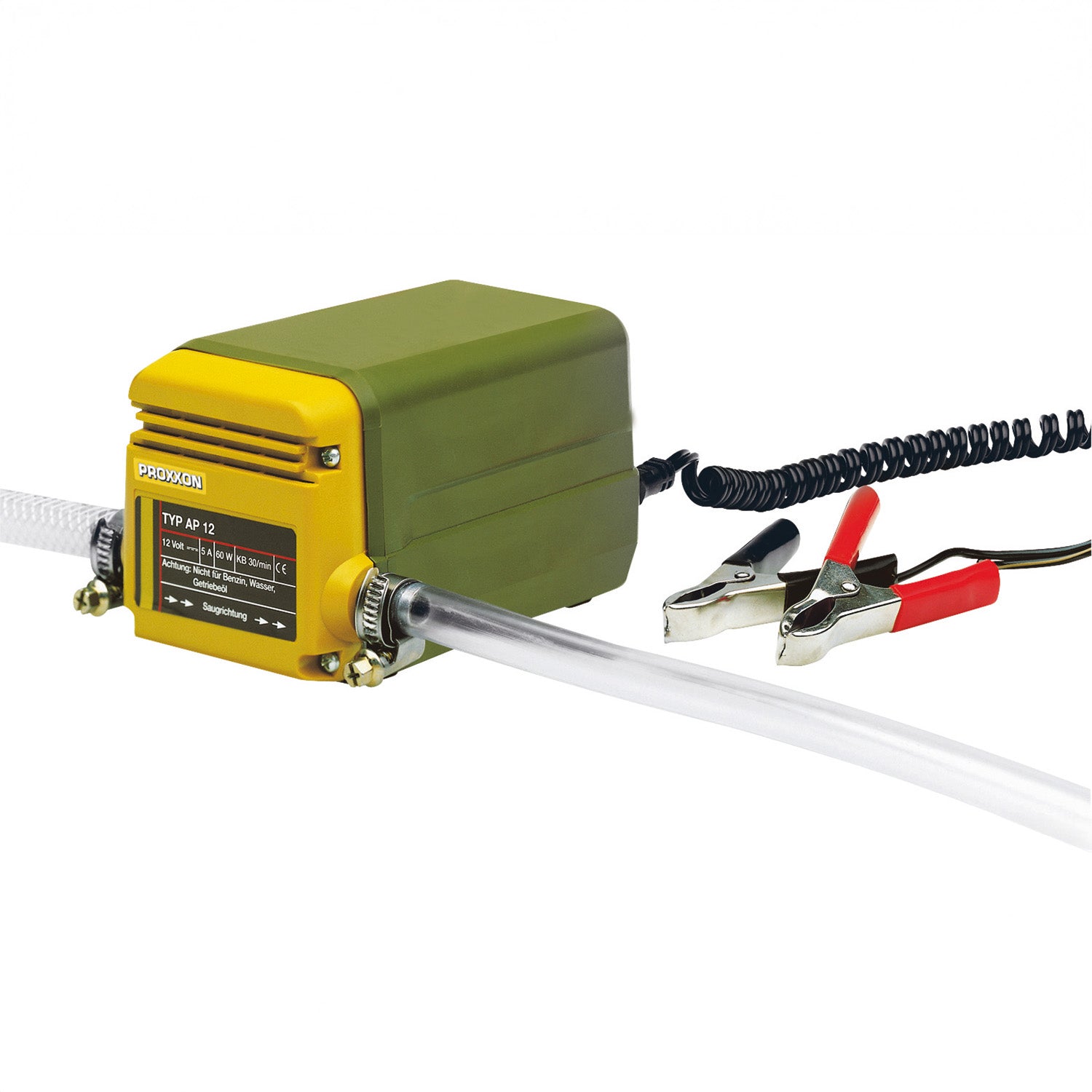

Universal and oil suction pump AP 12

The AP 12 universal and oil suction pump is the ideal solution for quick, clean and uncomplicated oil changes - without the need for a lifting platform. It effortlessly draws engine, diesel and heating oil and is perfect for workshops, garages or mobile use. With a flow rate of approx. 250 l/h (with 1/2" suction hose), it is powerful and efficient. When changing oil via the supplied probe, it delivers approx. 3 l/min at an oil temperature of 40 °C.

The pump is connected directly to the vehicle battery via a 200 cm long connection cable with crocodile clips. It has 1/2" connection pieces on the suction and pressure sides. The scope of delivery includes an approx. 800 mm long probe (outer diameter 6 mm) for insertion via the dipstick shaft - firmly connected to a flexible suction hose. A transparent drain hose (1/2", approx. 150 cm) is also included.

The robust housing is made of glass fiber reinforced polyamide and measures a compact 120 x 90 x 90 mm with a weight of only approx. 1.4 kg. Mobile, durable and versatile - the AP 12 is a practical little helper for every oil change.

Conveying capacity:

• Up to 250 l/h with 1/2" suction hose
• Approx. 3 l/min for oil change with probe at 40 °C oil temperature

Power supply:

• 12 V direct current
• Connection via 200 cm cable with crocodile clips for direct battery pole attachment

Connections:

• Suction and discharge side connection piece: for 1/2" hoses
• Transparent drain hose: 1/2", approx. 150 cm long
• Oil change probe: approx. 800 mm long, Ø 6 mm, permanently connected to suction hose

Housing material:

• Glass fiber reinforced polyamide

Dimensions (L x W x H):

• approx. 120 x 90 x 90 mm

Weight:

• approx. 1.4 kg

• 1x AP 12 oil suction pump
• 1x connection cable (200 cm)
• 1x oil change probe
• 1x transparent drain hose
• 1x suction connection and pressure connection piece
