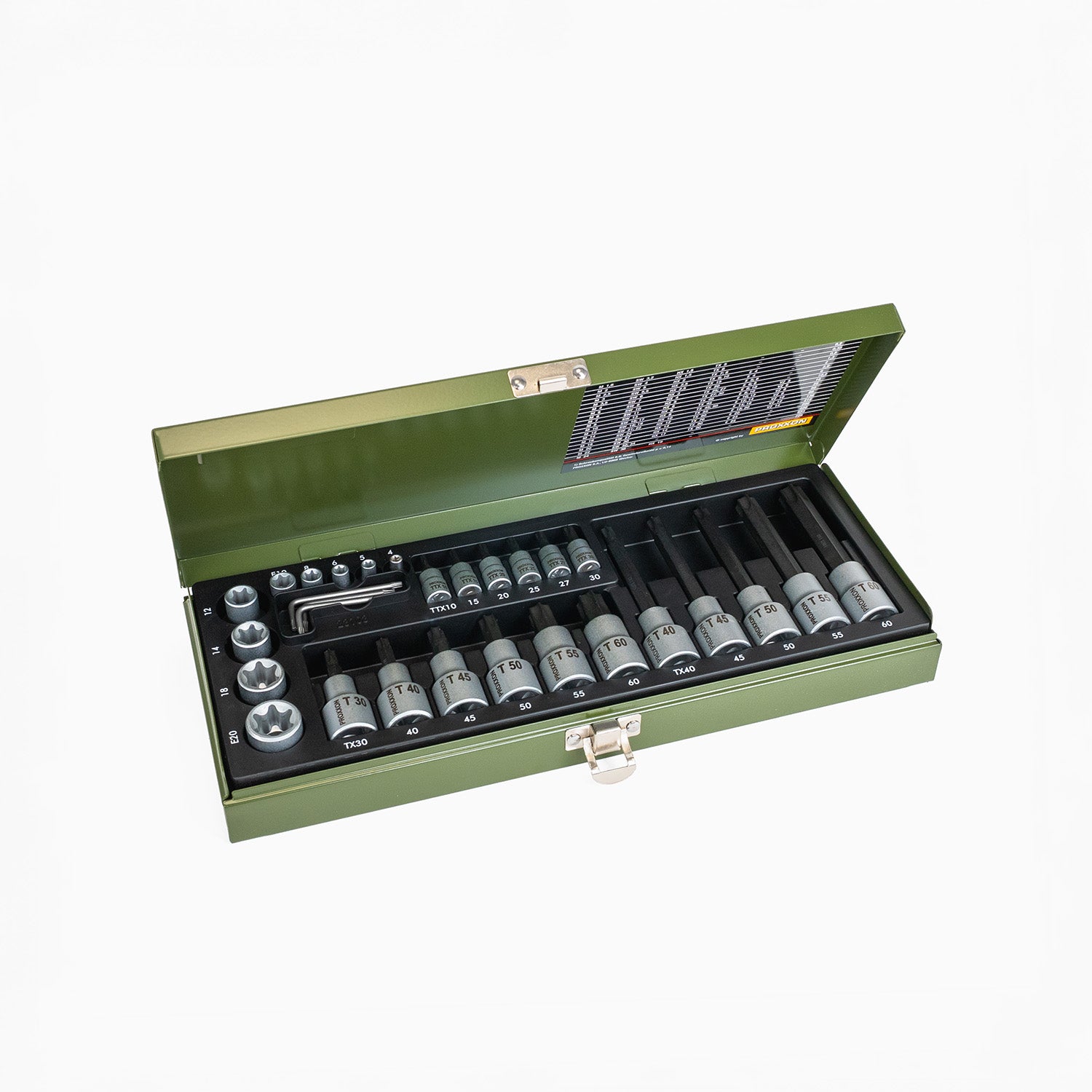

Socket wrench set TX 1/4" + 1/2"

The Proxxon TX socket wrench special set (29-piece) is the perfect choice for anyone who regularly works with TX screws (Torx) - whether in the automotive sector, mechanical engineering or precision assembly. The set contains specially matched inserts for 1/4" and 1/2" square drives, neatly sorted in a sturdy, powder-coated steel case for maximum protection and organization.

For finer applications with tightening torques up to 10 Nm, 1/4" sockets (6.3 mm) in sizes TTX 10 to TTX 30 are included, including external TX sockets E 4 to E 10.

For higher torques from 25 to 135 Nm, the set contains 1/2" sockets (12.5 mm) in two versions:

- Standard length (55 mm): TX 30 to TX 60

- Extra long (100 mm): TX 40 to TX 60

- External TX inserts: E 12 to E 20

Three angled wrenches in sizes TX 6, TX 8 and TX 10 round off the set - ideal for hard-to-reach places.

The inserts are made of chrome vanadium steel (31 CrV 3), the blades of special steel with a chrome-silicon-manganese-molybdenum alloy - for maximum resilience. The surface is nickel-plated twice and chrome-plated once for optimum protection.

A durable, precise professional tool set for the highest demands.

General information

• Type: Socket wrench set
• TORX version
• Version: 1/4" + 1/2"
• Approval: Ratchet box, ratchet set
• Number of parts: 29

Dimensions

• Width: 338 mm
• Height: 48 mm
• Depth: 148 mm
• Weight: 2,3 kg

1/4" (6.3 mm) inserts - for tightening torques up to 10 Nm:

• TX inserts: TTX 10, TTX 15, TTX 20, TTX 25, TTX 27, TTX 30
• External TX inserts: E 4, E 5, E 6, E 7, E 8, E 10

1/2" (12.5 mm) inserts - for tightening torques from 25-135 Nm:

• Normal length (55 mm): TX 30, TX 40, TX 45, TX 50, TX 55, TX 60
• Extra long version (100 mm): TX 40, TX 45, TX 50, TX 55, TX 60
• External TX inserts: E 12, E 14, E 16, E 18, E 20

Angled TX wrenches:

• TX 6
• TX 8
• TX 10

Material:

• Inserts: Chrome vanadium steel (31 CrV 3)
• Blades: Special steel, alloyed with chromium, silicon, manganese and molybdenum
• Surface: 2-fold nickel-plated, 1-fold chrome-plated

Packaging:

• Robust, powder-coated steel box with precisely fitting insert for a secure hold and long service life.
