mo.view classic 110 pivot

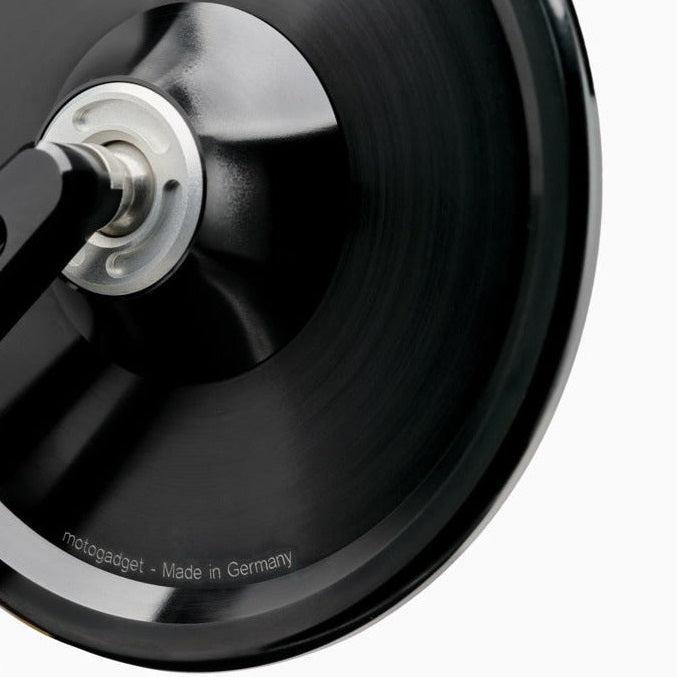

Our glassless mirror series mo.view is unique worldwide. The special feature of our mirrors is the patented mirror surface, which is made directly from the metal of the body. The aluminum itself is the mirror surface.

The mirror body is very thin and light, resulting in a weightless design without a rim or frame. The convex mirror surface is produced by flycutting using diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion and abrasion by an elaborate plasma coating in a vacuum.

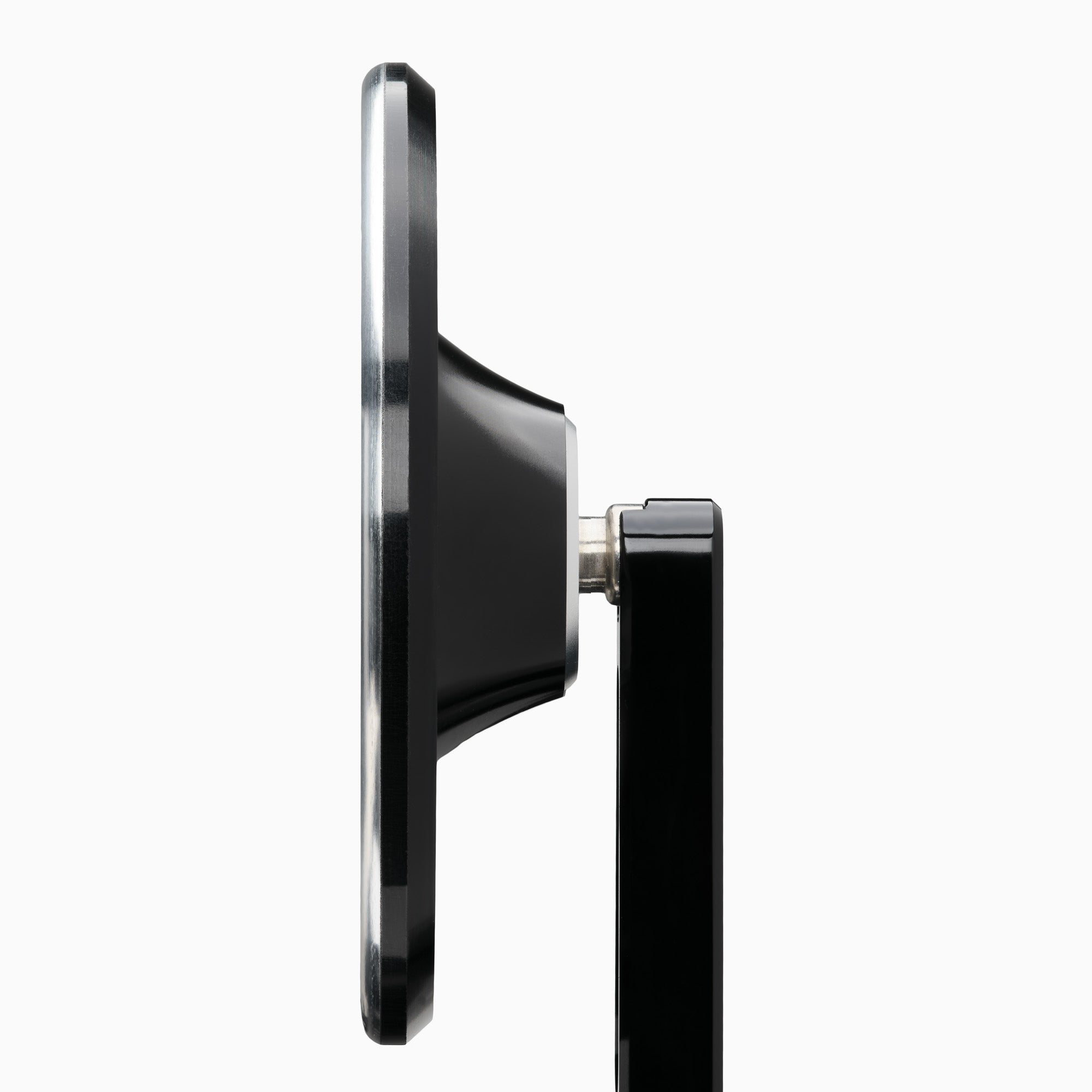

The mirror body, mirror arm and clamp are milled from solid aluminium on CNC machines and anodized to a high quality. All screws are made of stainless steel. The precise ball joint allows the mirror to be adjusted comfortably and very stably. Broken or fallen out glasses are simply not possible.

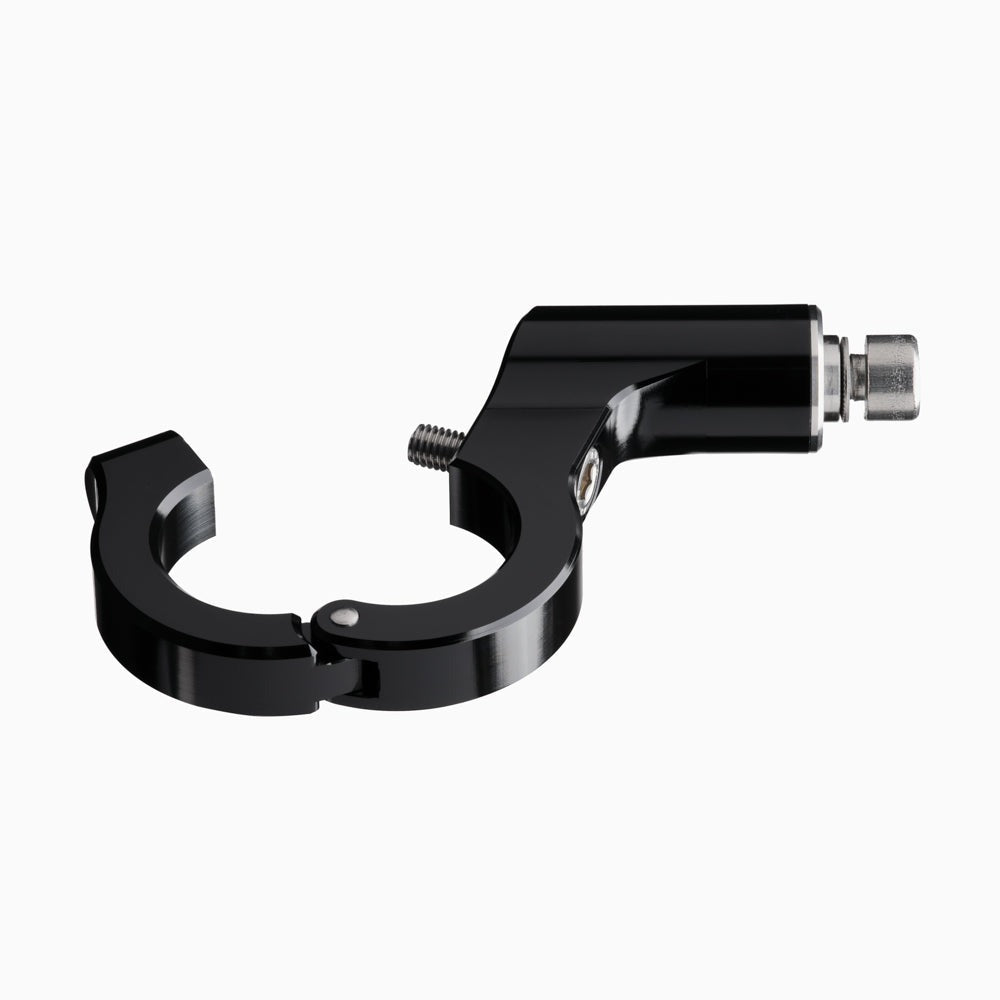

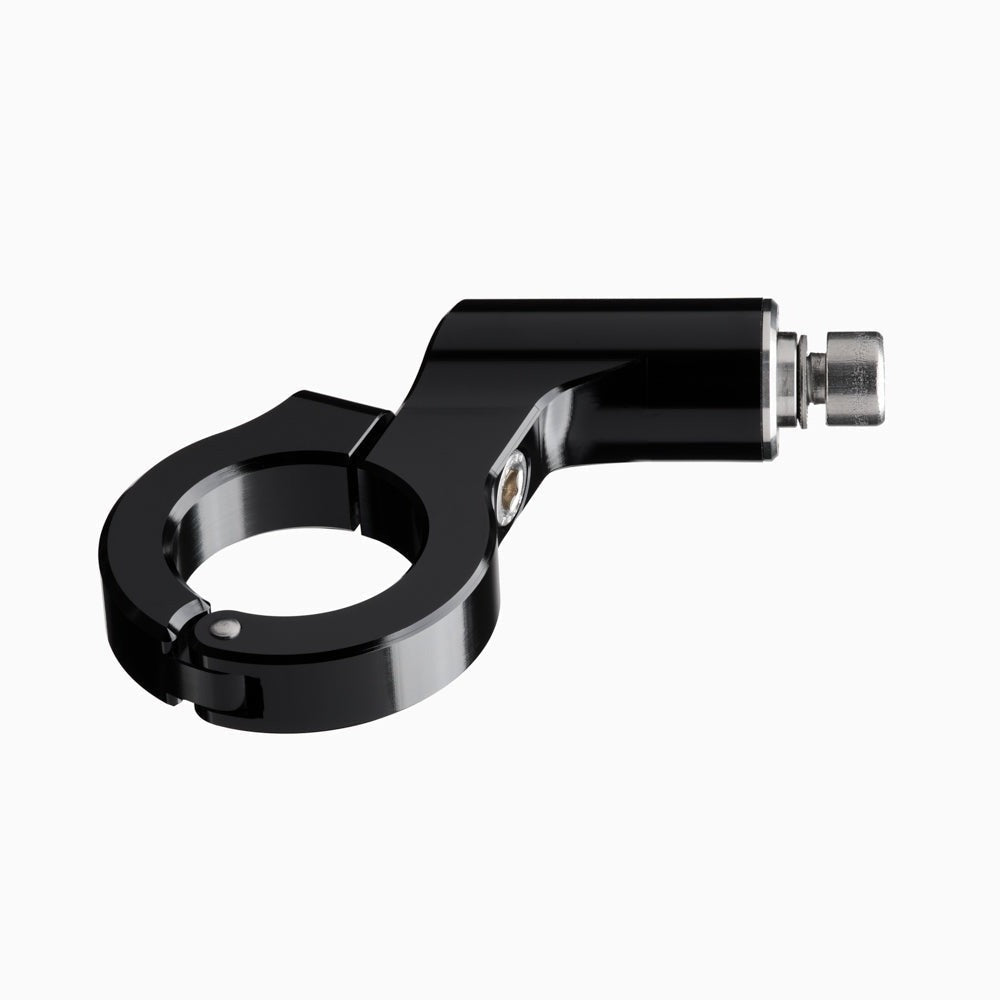

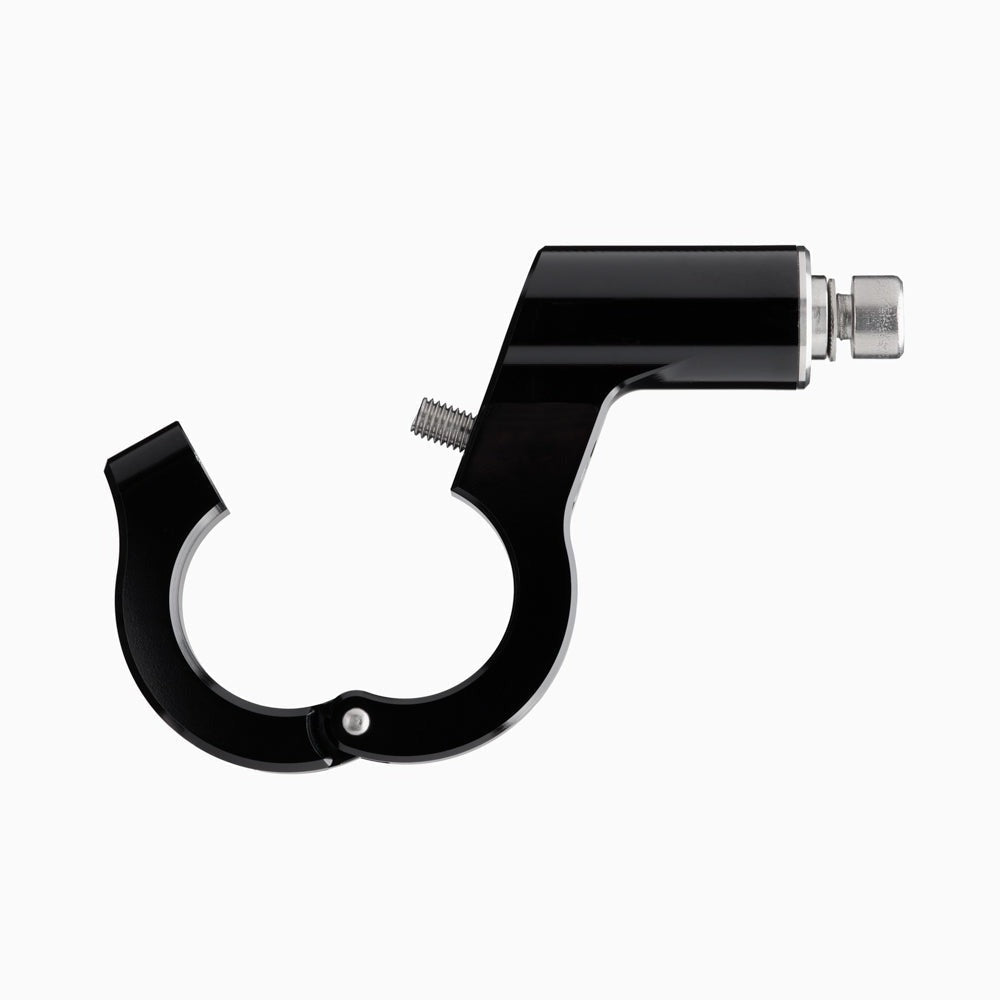

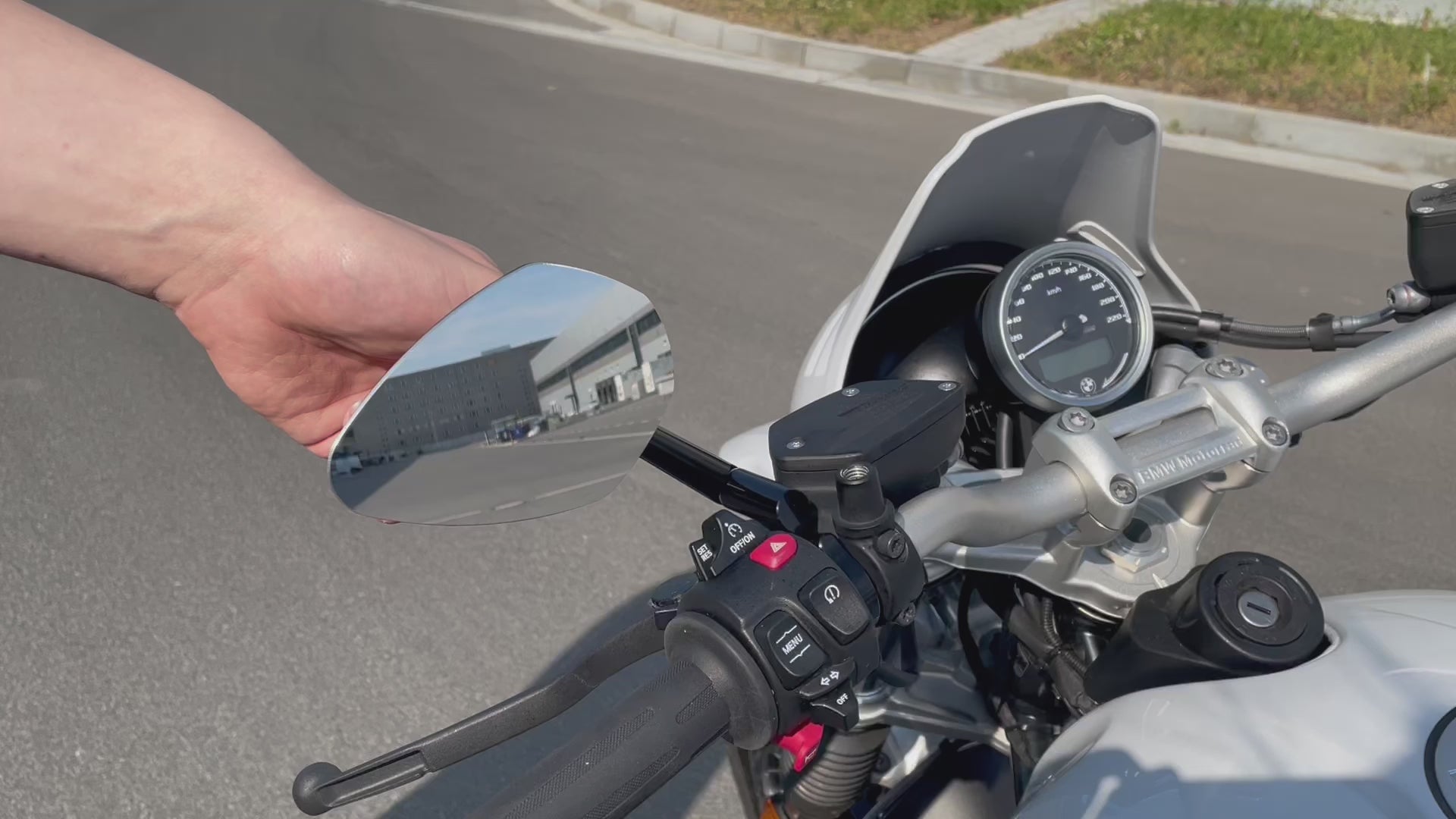

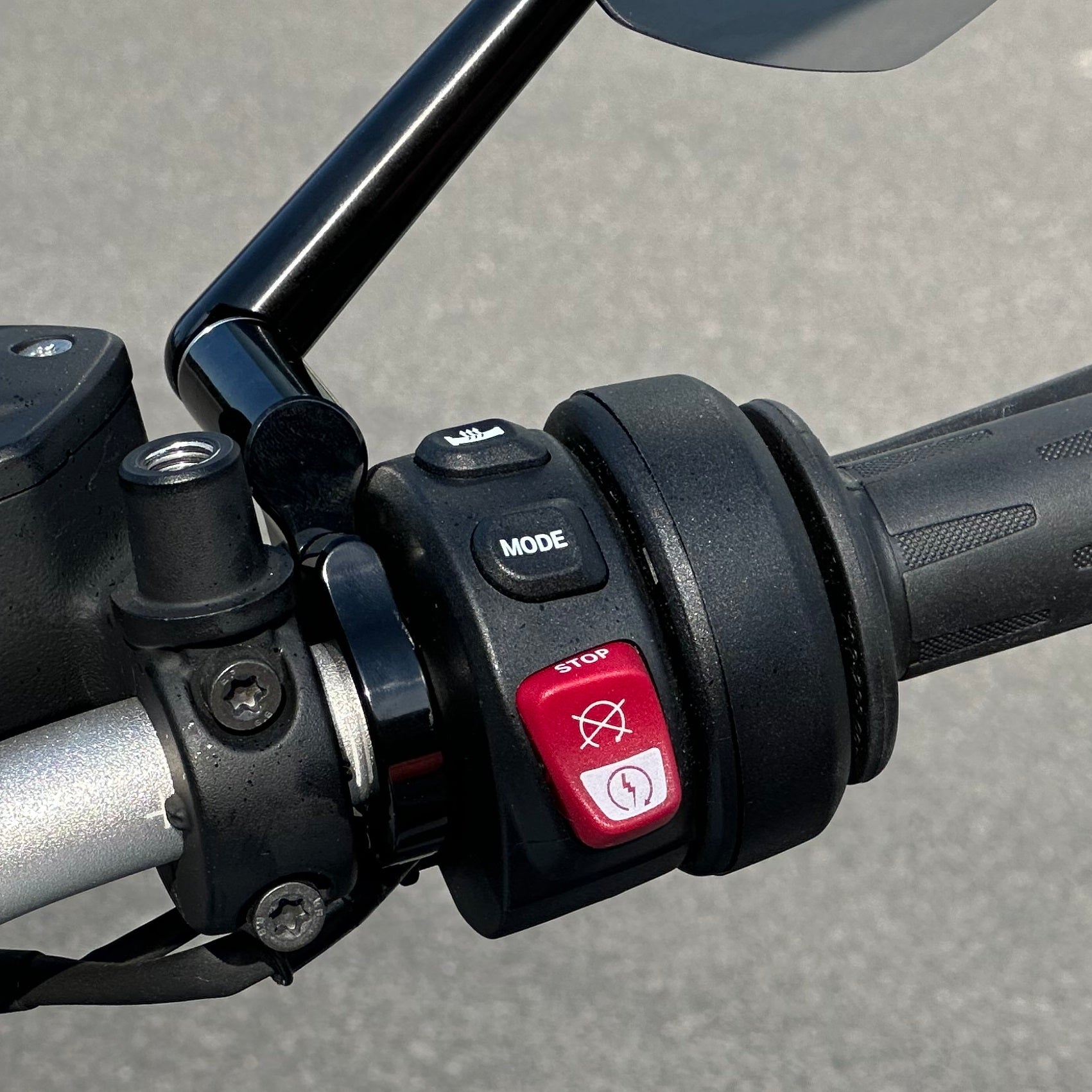

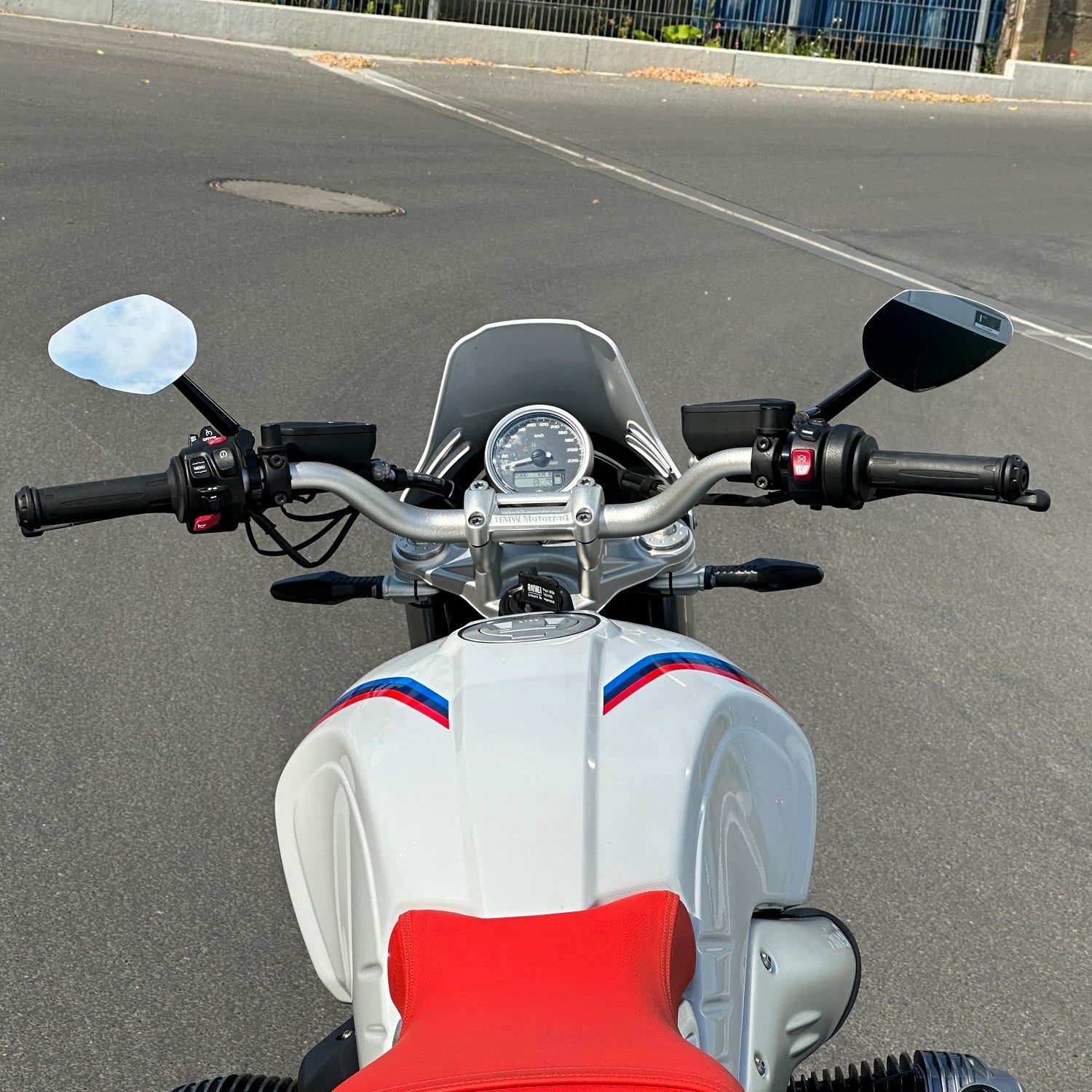

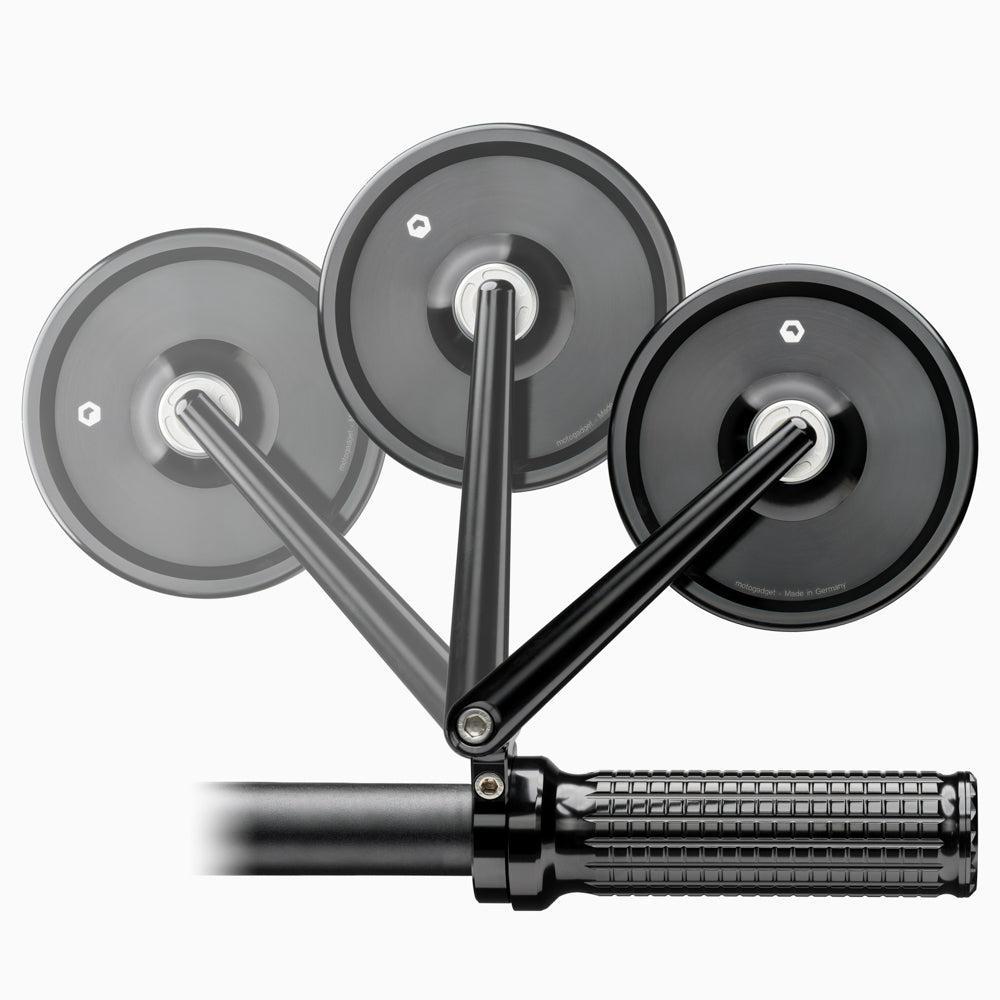

The add-on mirror can be mounted above or below the handlebars. The arm can be swiveled and locks into place in 45° steps. The mirror is suitable for the right and left side. It is mounted on the handlebars, depending on the version for 7/8" or 1" handlebar diameter. A free handlebar area of 10 mm width is required for mounting, no modifications to the handlebars or fittings are necessary.

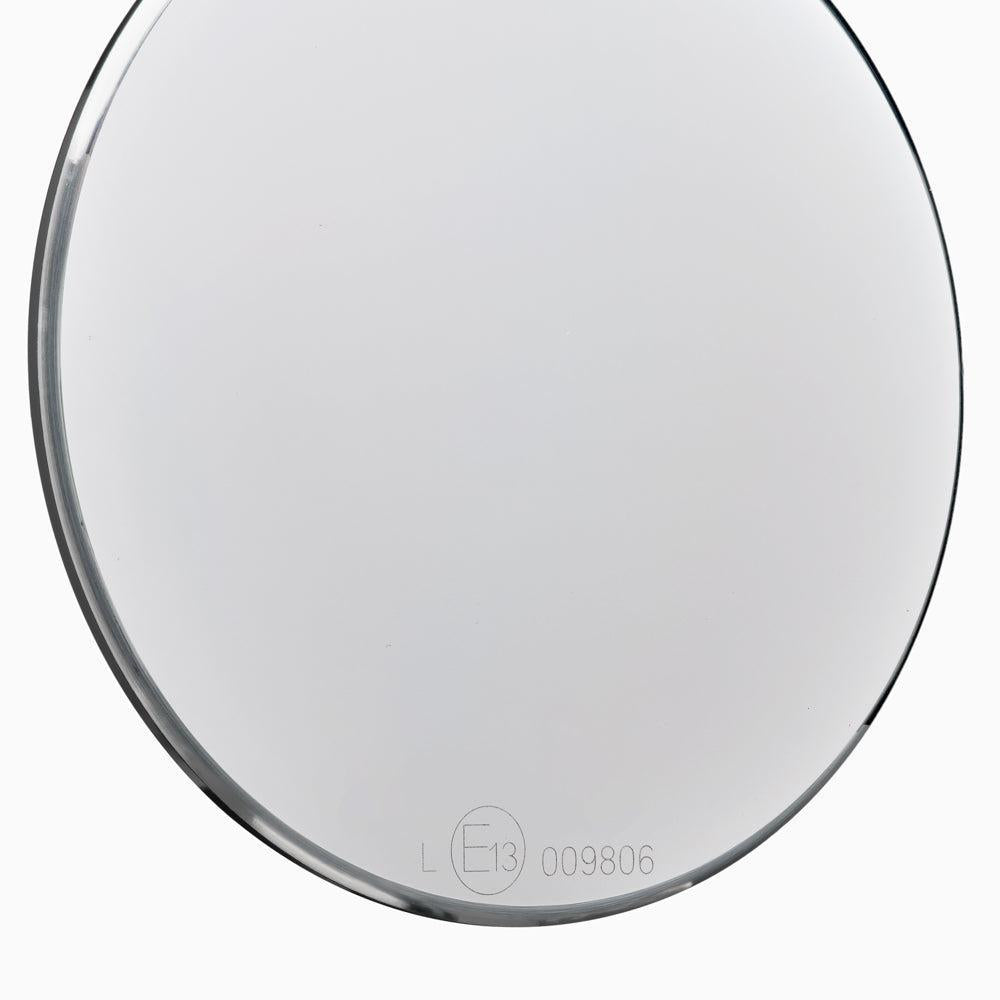

The size of the mirror surface complies with the StVZO and it has an ECE marking, making it suitable for any motorcycle without registration.

• Diameter of the mirror body: 99 mm
• Thickness of the mirror body without ball head: 5.6 mm
• Length of the mirror arm: 110 mm
• can be used for 22.2 mm (7/8 inch) or 1 inch handlebars, depending on the version
• Clamping width: 10 mm
• Weight: 260g

• 1x rear-view mirror mo.view classic 110 pivot, with ECE marking, with 110mm arm
• 1x pivot clamp
• QR code for installation and operating instructions
