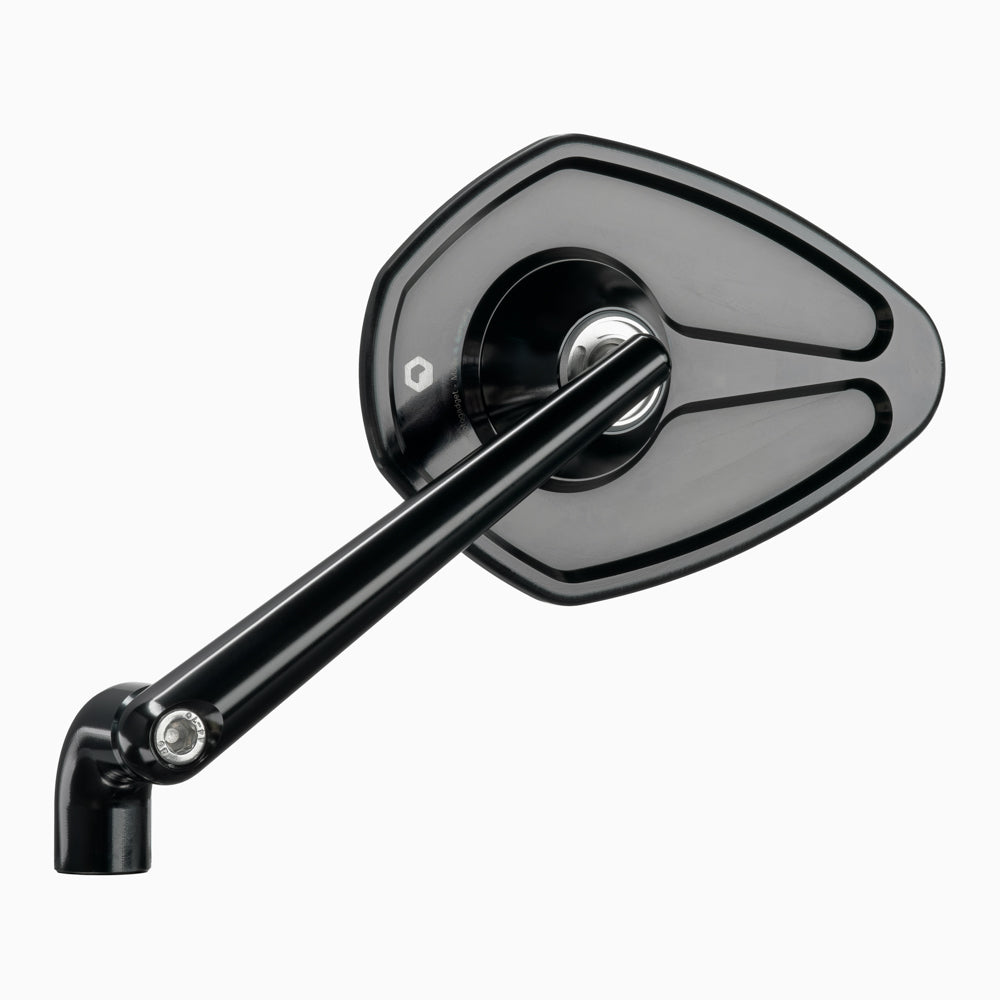

mo.view sport

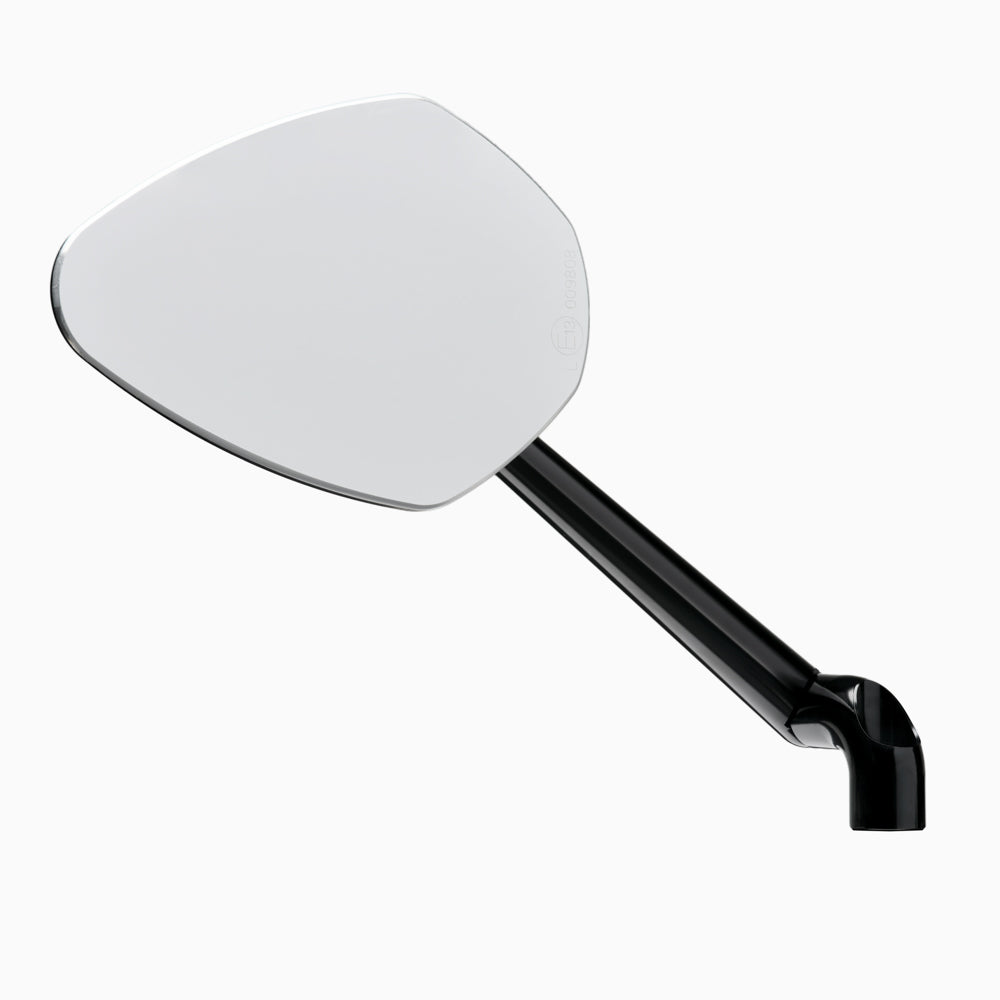

Our glassless mirror series mo.view is unique worldwide. The special feature of our mirrors is the patented mirror surface, which is made directly from the metal of the body. The aluminum itself is the mirror surface.

The mirror body itself is very thin and light, resulting in a weightless design without a rim or frame. The convex mirror surface is produced by flycutting using diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion and abrasion by an elaborate plasma coating in a vacuum.

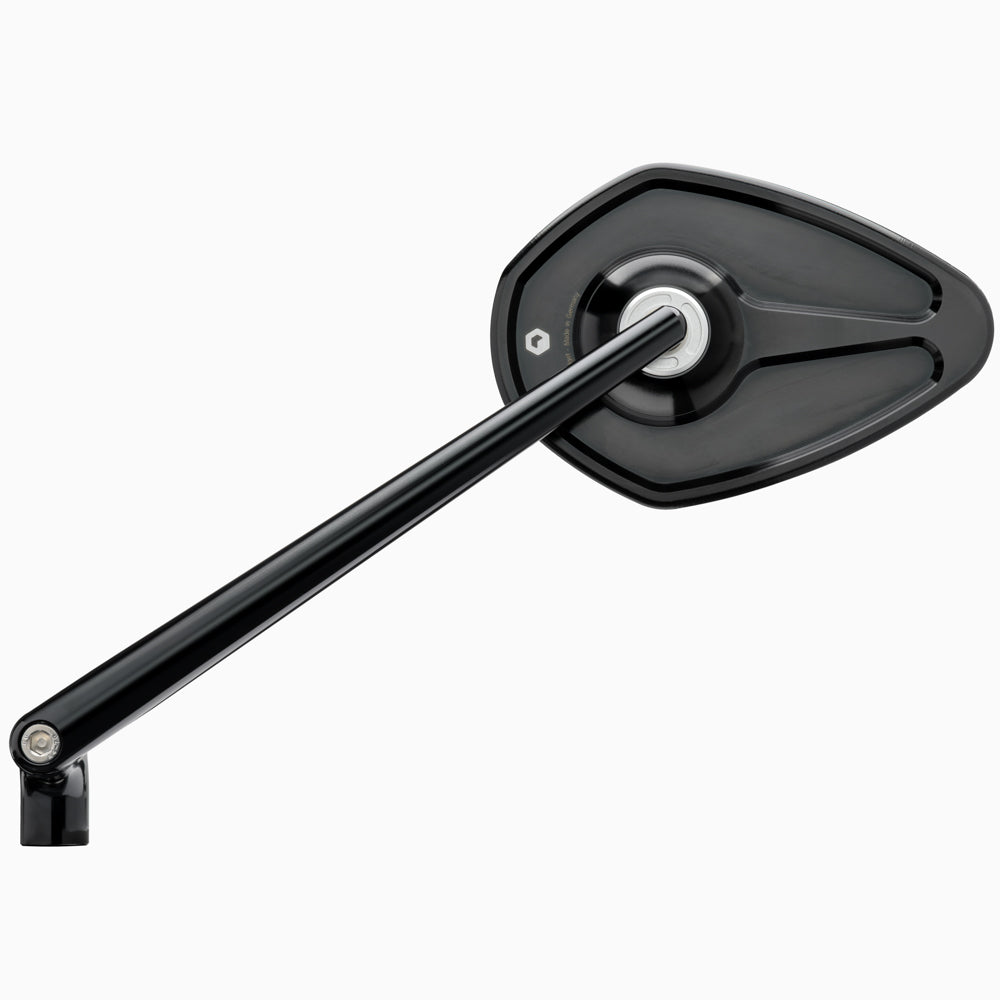

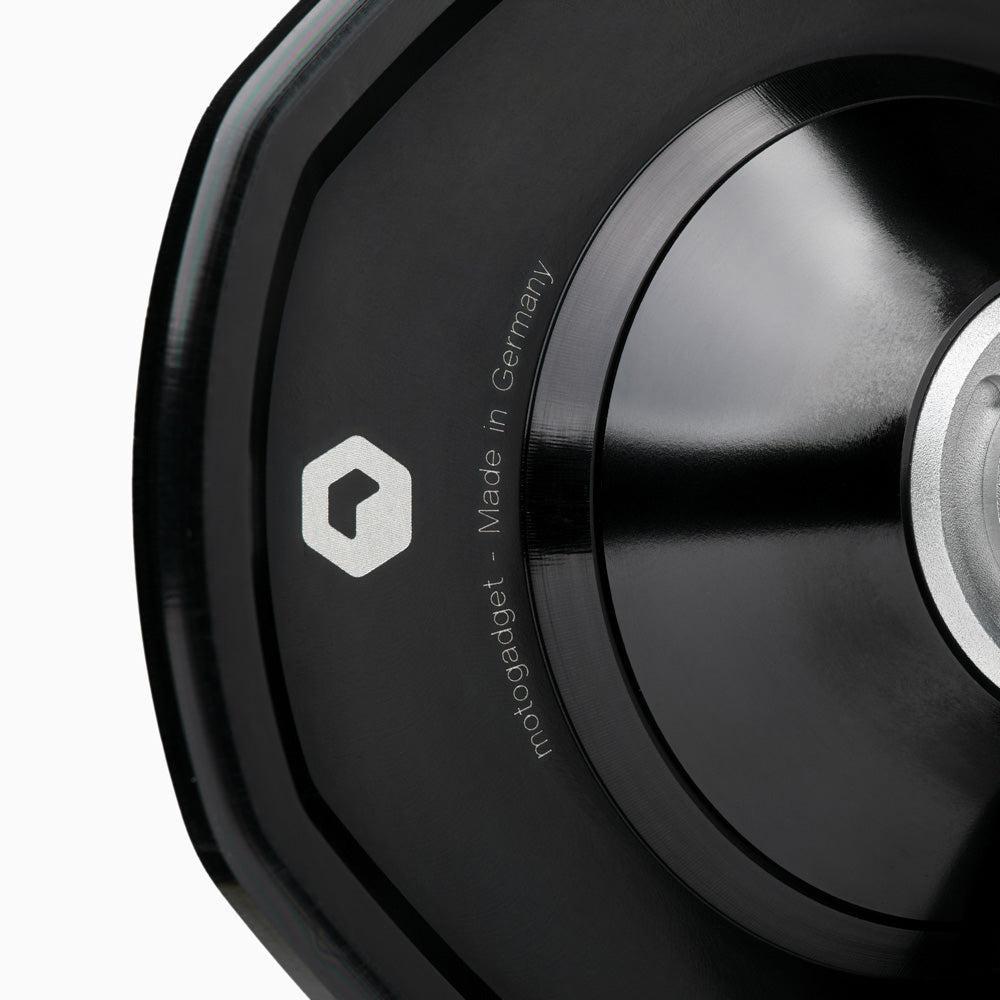

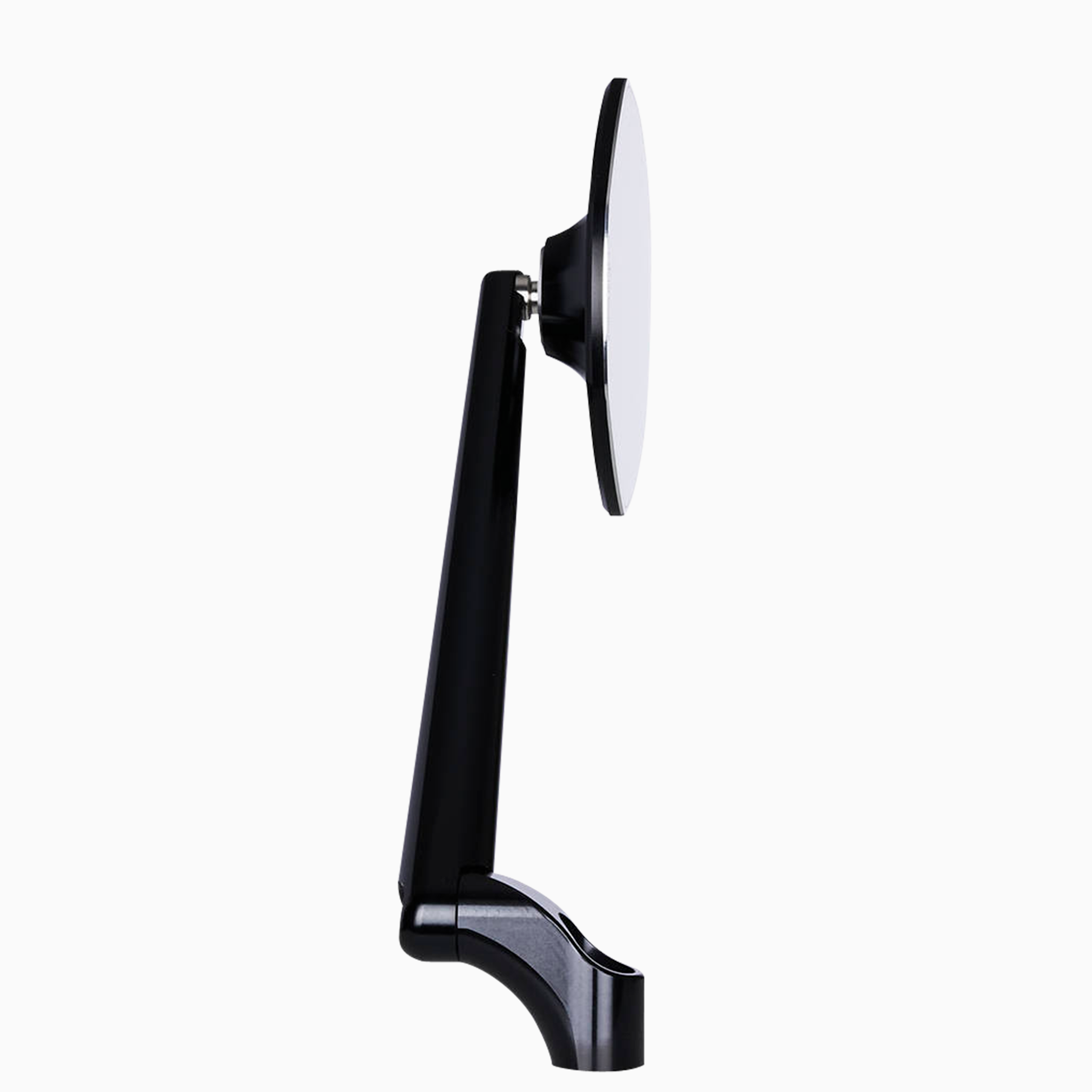

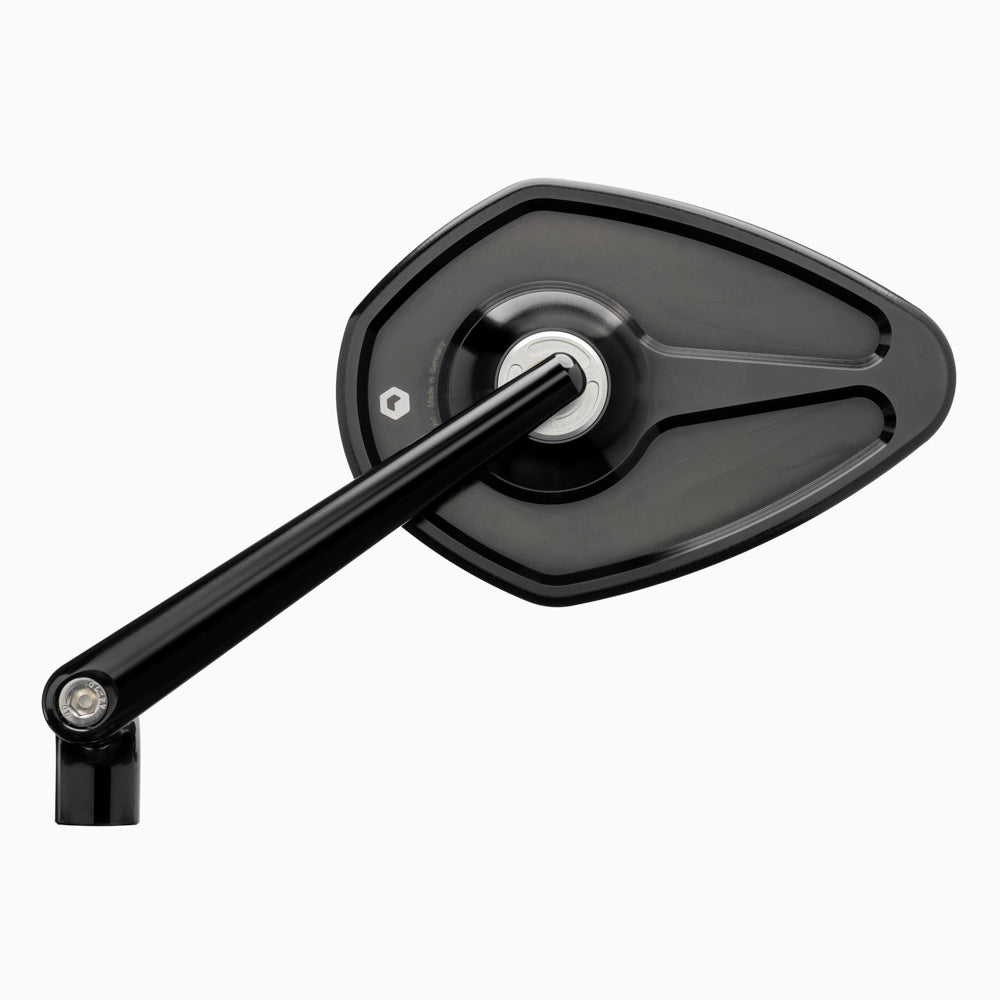

The mirror body and mirror arm are milled from solid aluminium on CNC machines and anodized to a high quality. All screws are made of stainless steel. The precise ball joint allows the mirror to be adjusted comfortably and very stably. Glass breakage or glass falling out is simply not possible.

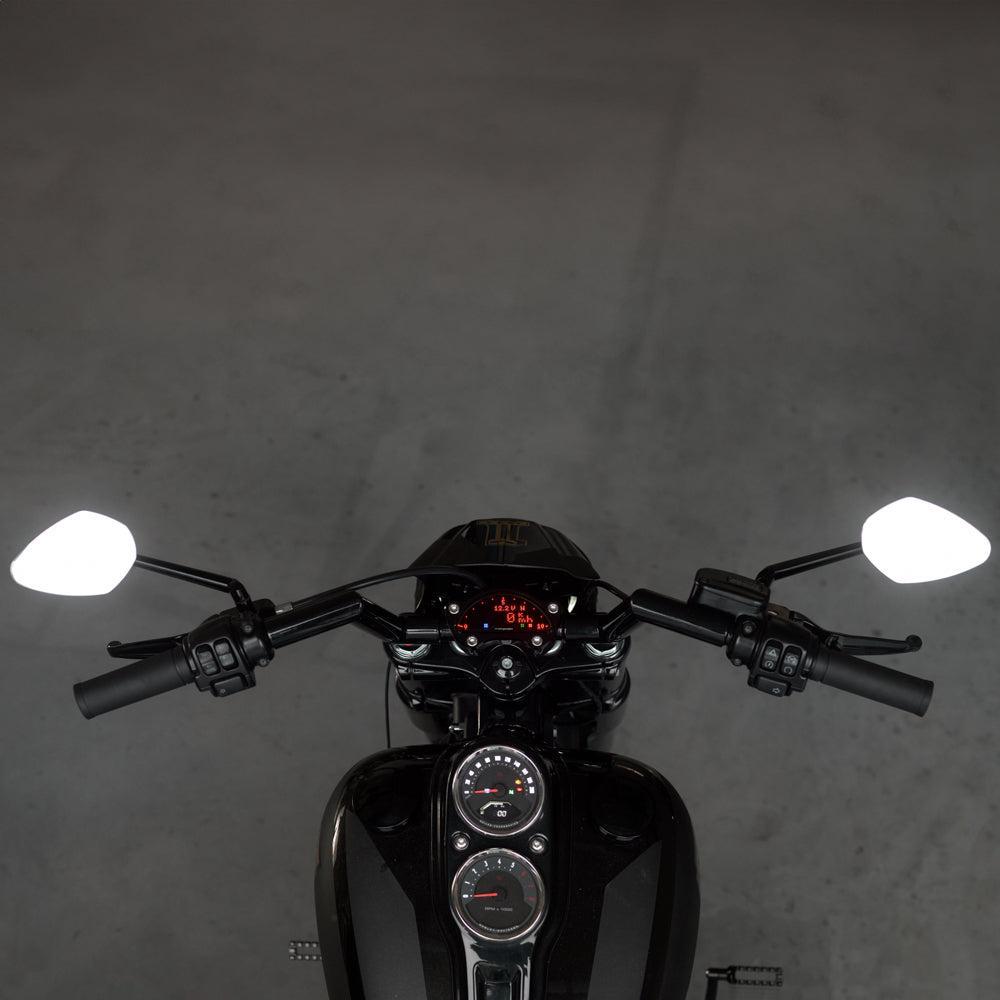

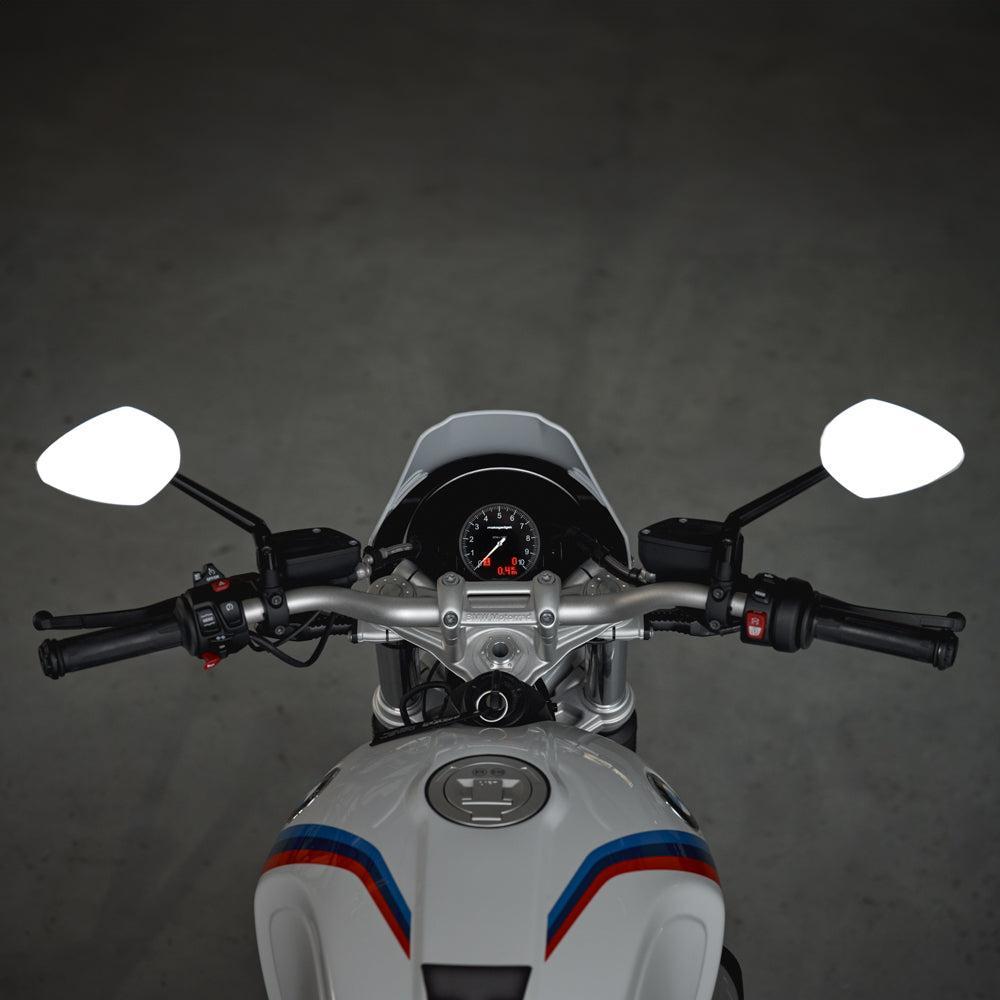

The add-on mirror can be mounted on any M10 mirror thread on the handlebars. Three fastening screws with different threads are supplied. The mirror is suitable for the left and right side.

Cleaning: Use a mild cleaning agent and a microfiber cloth to remove
dirt, dust and other residues from the surface of the mirrors.
Avoid abrasive cleaning agents that could damage the surface.
surface.

• Width of the mirror body: 122 mm
• Height of the mirror body: 83 mm
• Thickness of the mirror body without ball head: 4.5 mm
• Mirror arm length: 110mm/ 150 mm/ 180mm
• Weight: 178 g

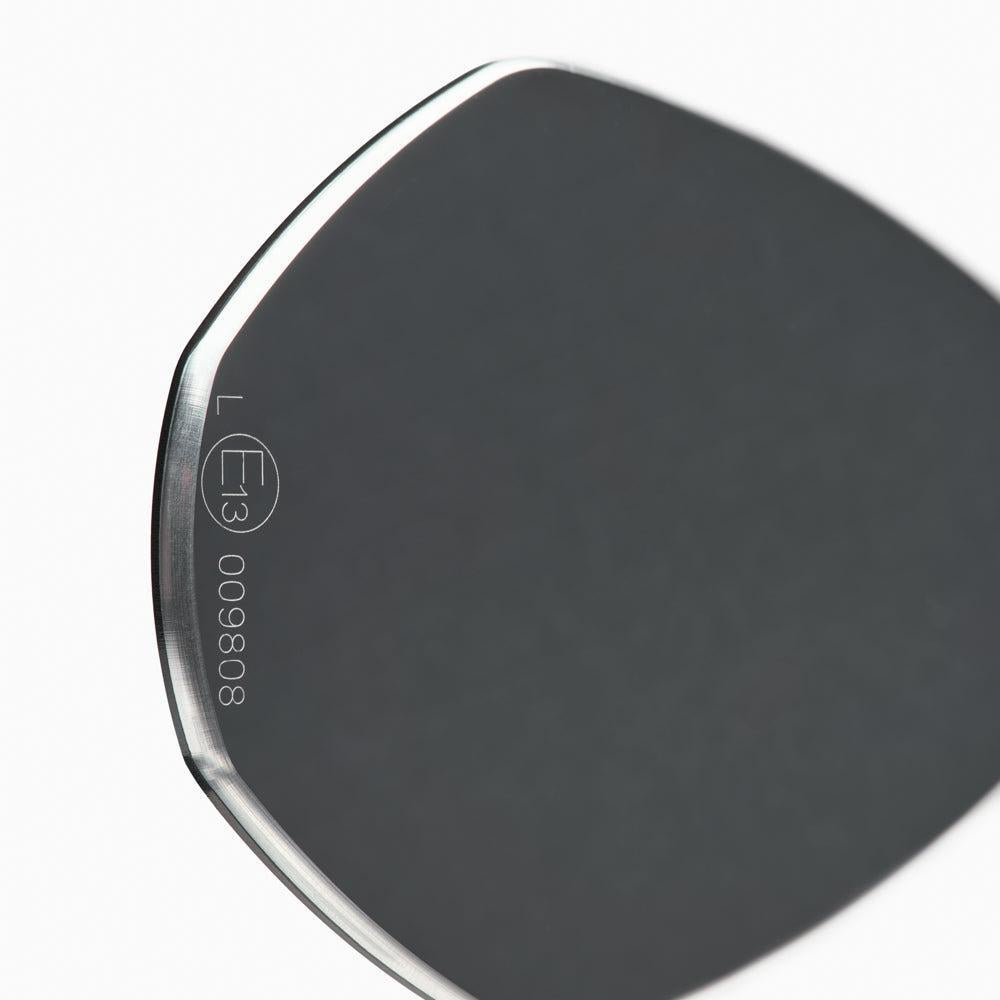

• 1x mo.view sport add-on mirror with arm (with ECE marking)
• 1 x M10 x 1.5 screw
• 1 x screw M10 x 1.25 right-hand thread
• 1 x screw M10 x 1.25 left-hand thread
• QR code for installation and operating instructions
